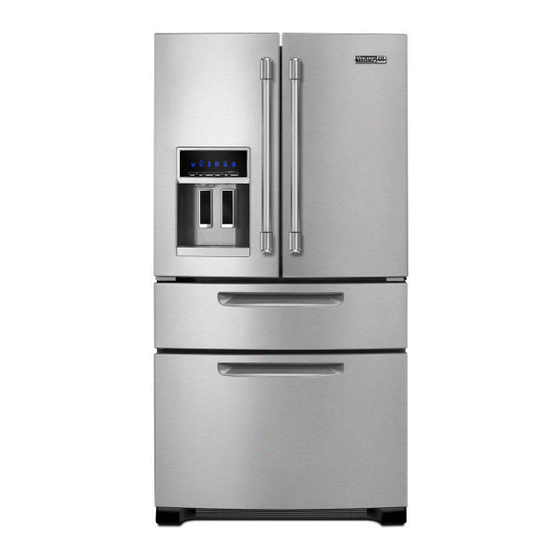

- Page 1 All manuals and user guides at all-guides.com Installation Viking Range Corporation 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-VIKING1 (845-4641) or visit the Viking Website at vikingrange.com Standard-Depth Freestanding French Door Bottom-Mount Refrigerator/Freezer (062012) F20876 EN W10476847...
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com Table of Contents IMPORTANT – Please Read and ollow Warnings & Important Information _____________________________________________________3 It is the customer’s responsibility to: Designer Dimensions ______________________________________________________________________________6 • Contact a qualified electrical installer. • DO NOT service or replace any part of Specifications ____________________________________________________________________________7 •... - Page 3 • Viking Range Corporation will NOT warranty any problems resulting from GFI outlets which are not installed properly or do not meet the requirements below.
-
Page 4: Dimensions
All manuals and user guides at all-guides.com Dimensions Specifications D3 French Door ottom-Mount Description RDFN536 Overall width 35-5/8” (90.5 cm) Overall height To top of door: 70-1/8” (178.1 cm) To top of cabinet: 68-5/8” (174.3 cm) Overall depth from rear To front edge of cabinet: 29”... -
Page 5: Proper Disposal (Of Old Refrigerator)
All manuals and user guides at all-guides.com General Information Proper Disposal (of old refrigerator) IMPORTANT: Clean Before Using Your refrigerator was packed carefully for Child entrapment and suffocation are not shipment. Remove and discard all packaging and After you remove all of the packaging materials, problems of the past. -
Page 6: Electrical Requirements
All manuals and user guides at all-guides.com General Information General Information Electrical Requirements Water Supply Requirements To ensure proper ventilation for your refrigerator, A cold water supply with water pressure of allow for a 1/2" (1.25 cm) space on each side and between 35 and 120 psi (241 and 827 kPa) is at the top. -
Page 7: Doors & Drawer Removal
All manuals and user guides at all-guides.com Door & Drawer Removal Doors & Drawer Removal (cont.) Remove and Replace Handles Remove Doors and Hinges Replace Doors and Hinges (cont.) Drawer Front Removal 1. Using a 3/32” or 1/8” hex wrench, loosen the 6. -
Page 8: Installation
All manuals and user guides at all-guides.com Installation Installation Water Supply Requirements Connect the Water Supply Connect to Water Line Connect to Refrigerator (cont.) Gather the required tools and parts before IMPORTANT: If you turn the refrigerator on 6. Fasten the shutoff valve to the cold water pipe 1. -
Page 9: Complete Installation
All manuals and user guides at all-guides.com Leveling/Adjusting the Door Leveling/Adjusting the Door (cont.) To enhance the appearance and maintain performance, the refrigerator should be level. To protect property and refrigerator from damage, observe the following: • Protect vinyl or other flooring with cardboard, rugs, or other protective material. DO NOT •... -
Page 10: Performance Checklist
Only authorized replacement parts may be used in performing service on the appliance. All servicing should be referred to a qualified technician. Contact Viking Range Corporation, 1-888-VIKING1 (845-4641), for the nearest service parts distributor in your area or write to:...
