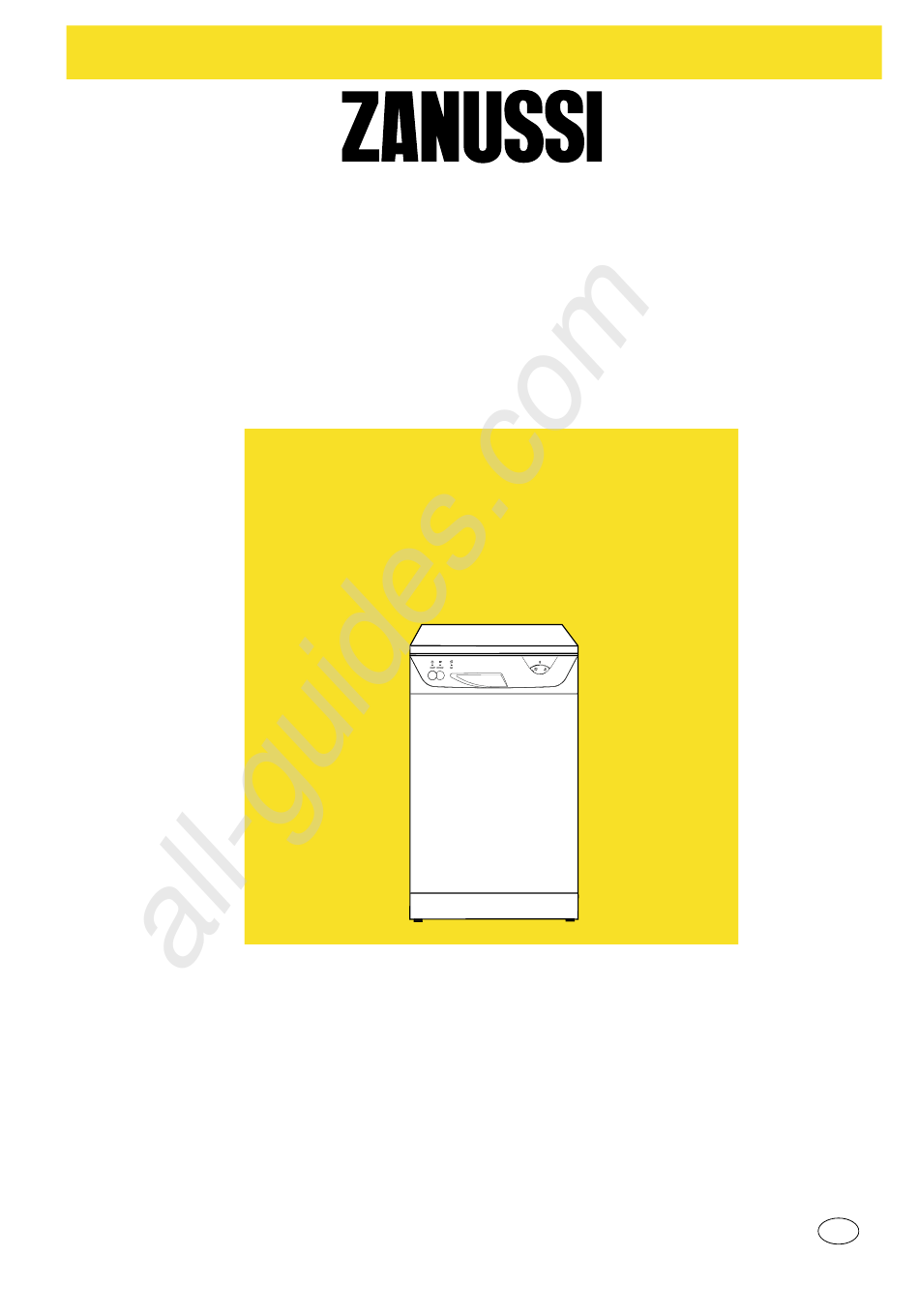

- Page 1 All manuals and user guides at all-guides.com DISHWASHER DA 4342 INSTRUCTION BOOK 152977 35/2...

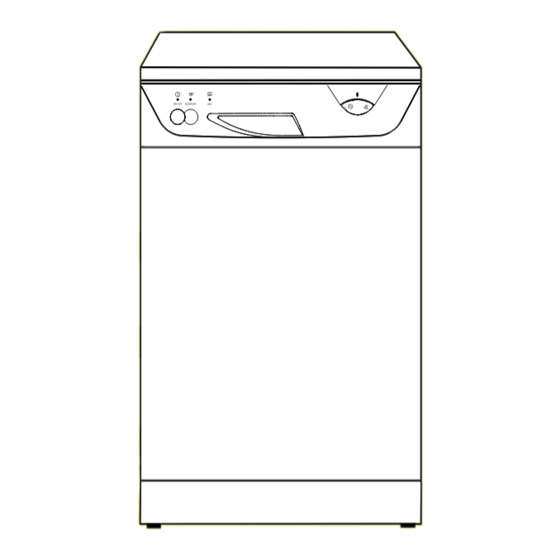

- Page 2 All manuals and user guides at all-guides.com Description of the appliance Water hardness adjustment Levelling spacers Upper basket stop Upper spray arm Salt container Detergent dispenser Control panel Rinse aid dispenser Filters 10. Lower spray arm 11. Upper basket 12. Worktop IN115 The control panel 1.
- Page 3 All manuals and user guides at all-guides.com Washing programmes Type of load Degree of soil Starting position Required Recommended Cycle quantity of detergent of the programme push button description selector dial wash prewash Cold prewash INTENSIVE Main wash up to 65°C Heavy soil.
- Page 4 All manuals and user guides at all-guides.com Operating sequence 1. Check the filters 9. At the end of the washing programme Ensure they are clean and properly positioned (see "Maintenance and cleaning" - Instruction book At the end of the programme the dishwasher will part 1).
- Page 5 All manuals and user guides at all-guides.com Using your appliance Loading your appliance Before placing dishes in the machine, remove any scraps of food, to avoid clogging the filters and consequently reducing the performance. Do not load very small items which can fall through the baskets.
- Page 6 All manuals and user guides at all-guides.com The upper basket The upper basket is designed for plates (dessert plates, saucers, dinner plates of up to 24 cm in diameter), salad bowls, cups and glasses. Arrange items so that water can reach all surfaces. Light items (plastic bowls etc.) should be loaded in the upper basket and arranged so they do not move.
- Page 7 All manuals and user guides at all-guides.com Adjusting the worktop You can move the worktop forward or backward by 25 mm in order to align the machine with other kitchen units. Simply unscrew the two front retaining screws, move the top to the required position and then retighten the screws.
- Page 8 All manuals and user guides at all-guides.com Service and spare parts In the event of your appliance requiring service, or if you wish to purchase spare parts please contact your local Zanussi Service Centre by telephoning: 08705 929 929 Your telephone call will be automatically routed to the Service Force centre covering your post code area. The addresses are listed on the following pages.
- Page 9 All manuals and user guides at all-guides.com...
- Page 10 All manuals and user guides at all-guides.com From the Electrolux Group. The world’s No.1 choice. The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
-
Page 11: Table Of Contents
All manuals and user guides at all-guides.com Instruction Book - Before use - Maintenance - Installation DISHWASHER Contents Important safety information Before use Setting the water softener Filling with salt Filling with rinse aid and adjusting the dose Use of detergent Hints and tips Maintenance and cleaning Internal cleaning... -
Page 12: Important Safety Information
All manuals and user guides at all-guides.com Important safety information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information. -
Page 13: Before Use
All manuals and user guides at all-guides.com Before use Before using your dishwasher for the first time: 1. Ensure that the electrical and water connections comply with the installation instructions 2. Remove all packaging from inside the appliance 3. Set the water softener 4. -
Page 14: Filling With Salt
All manuals and user guides at all-guides.com Filling with salt Attention! Only use salt specifically designed for use in dishwashers. All other types of salt not specifically designed for use in dishwasher, especially table salt, will damage the water softener. Only fill with salt just before starting a washing SR15 programme. - Page 15 All manuals and user guides at all-guides.com Rinse aid Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying. The dispenser, which is positioned inside the door, holds about 110 ml of rinse aid, which is sufficient for 16 - 40 dishwashing programmes, depending upon the dosage setting.
-
Page 16: Use Of Detergent
All manuals and user guides at all-guides.com Use of detergent Only use detergents specifically designed for use in dishwashers. We recommend the use of Finish detergents which are available in the following options: Min = 15 g Finish Double Action Tablets. Each tablet has the exact Max = 30 g amount of detergent required, simply place in the dispenser. -
Page 17: Hints And Tips
All manuals and user guides at all-guides.com Hints and tips To save energy Items not suitable for dishwashers Place dishes in the machine immediately after every meal The following items should not be washed in the and wait until the dishwasher is full before washing. dishwasher (unless they are sold as dishwasher proof): If necessary run the Rinse and Hold programme (see... -
Page 18: Maintenance And Cleaning
All manuals and user guides at all-guides.com Maintenance and cleaning Internal cleaning Ensure that the seals around the door, the detergent and rinse aid dispensers are cleaned regularly with a damp cloth. We recommend the use of Finish Dishwasher Cleaner every 3 months or run a 65°C wash without dishes using detergent. -
Page 19: External Cleaning
All manuals and user guides at all-guides.com External cleaning Clean the external surfaces of the machine and control panel with a damp soft cloth. If necessary use only neutral detergents. Never use abrasive products, scouring pads or solvent (acetone, trichloroethylene etc..). Prolonged periods of non-operation If you are not using the machine for any period of time you are advised to:... -
Page 20: Something Not Working
All manuals and user guides at all-guides.com Something not working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. Important: If you call out an engineer to a fault listed below or to repair a fault caused by incorrect use or installation a charge will be made even if the appliance is in guarantee. - Page 21 All manuals and user guides at all-guides.com If after all these checks, the problem persists, contact your local Service Force Centre, quoting the model and serial number. This information can be found on the rating plate located on the right hand side of the dishwasher door. This product should be serviced by an authorised Service engineer, and only genuine spare parts should be used.
-
Page 22: Installation
All manuals and user guides at all-guides.com Installation Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person. -
Page 23: Water Outlet Connection
All manuals and user guides at all-guides.com Water outlet hose connection The end of the drain hose can be connected in the following ways: 1. To the sink outlet spigot, securing it if necessary with a clip. 2. Hooked over the edge of the sink using the special curved plastic guide (if provided). - Page 24 All manuals and user guides at all-guides.com Electrical connection This appliance must be earthed. The manufacturer declines any responsibility should this safety measure not be observed. If the plug that is fitted to your appliance is not suitable for the socket, it must be cut off and the appropriate plug fitted. Important The wires on the mains lead are coloured in accordance with the following code:...
- Page 25 All manuals and user guides at all-guides.com...
- Page 26 All manuals and user guides at all-guides.com 1 09/01...
