Summary of Contents for Chauvet DJ FREEDOM CENTERPIECE

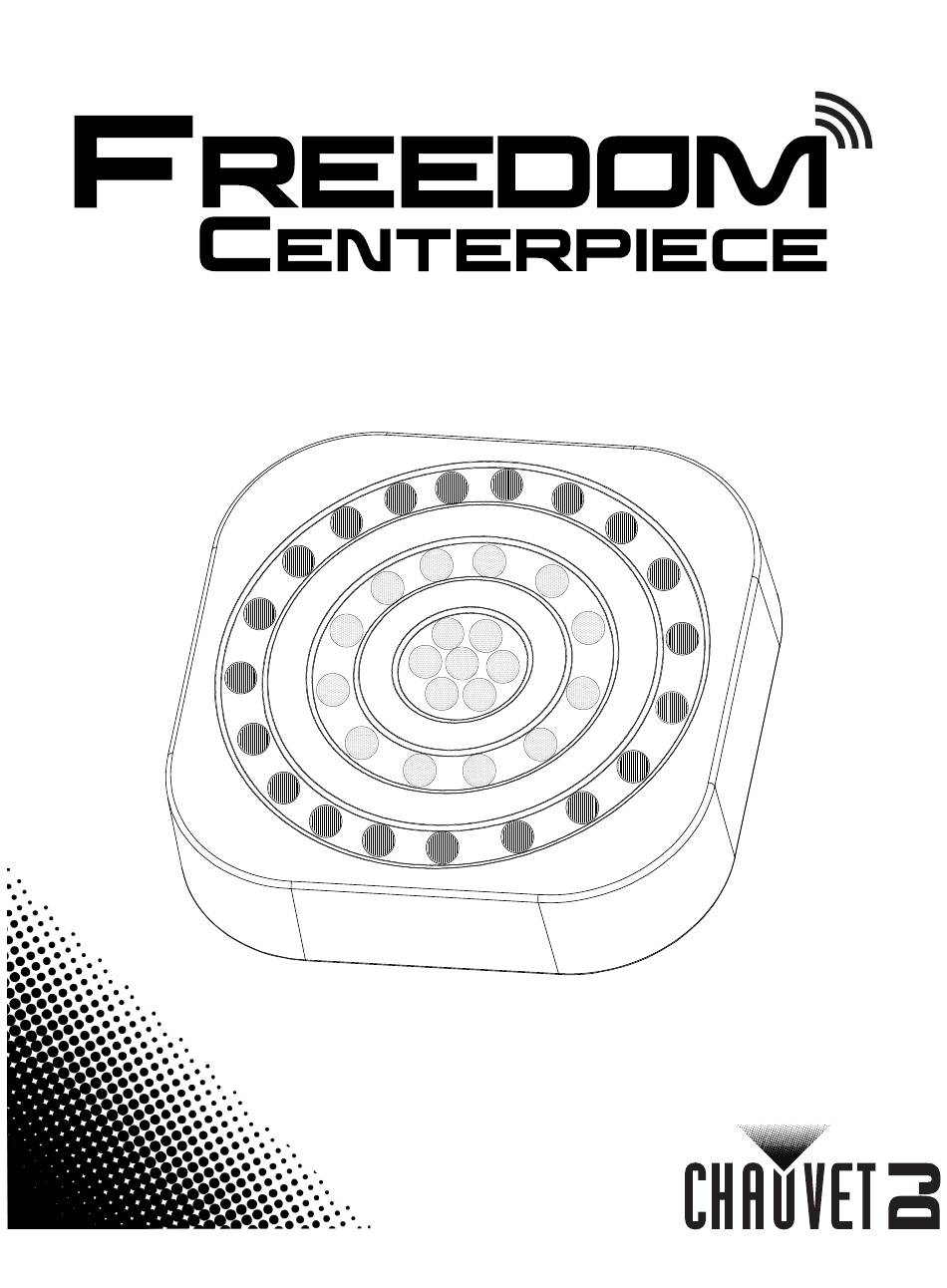

- Page 1 User Manual...
-
Page 2: Table Of Contents
Sound-Active Mode ....................Preset Color Mode ....................Custom Color Mixing ....................IRC-6 Infrared Remote Control ..............IRC-6 Operation ...................... 5. Maintenance................Product Maintenance ..................6. Technical Specifications ............7. Returns..................8. Contact Us .................. Freedom Centerpiece User Manual Rev. 3... -
Page 3: Before You Begin
Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, and Freedom Centerpiece are registered trademarks or trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies. -
Page 4: Safety Notes
Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. Page 2 of 18 Freedom Centerpiece User Manual Rev. 3... -
Page 5: Introduction
2. Introduction Product Overview Back Panel View LED Display Power Power In button *Keep closed when not charging to maintain the IP rating Menu Buttons Feet for Surface Mounting (4x) Freedom Centerpiece User Manual Rev. 3 Page 3 of 18... -
Page 6: Product Dimensions
Introduction Product Dimensions Front View 9.4 in 237.9 mm 9.4 in 237.9 mm Side View 1.3 in 32.5 mm Page 4 of 18 Freedom Centerpiece User Manual Rev. 3... -
Page 7: Setup
3. Setup AC Power The Freedom Centerpiece has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 8: Operation
Red + White Green + White Blue + White Red + Green + White Red + Blue + White Green + Blue + White RGBW Red + Green + Blue + White Page 6 of 18 Freedom Centerpiece User Manual Rev. 3... - Page 9 Turns off after 2 minutes Does not turn off Fixture Hours 9999H Displays the total operating hours of the device Information Version V0.2 Shows installed software version Factory Reset Resets to factory settings Freedom Centerpiece User Manual Rev. 3 Page 7 of 18...
-
Page 10: Dmx Linking
Operation DMX Linking The Freedom Centerpiece does not have a DMX input or output, but can be controlled using a D-Fi Hub or FlareCON Air products. DMX Personality and Starting Address When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses. -
Page 11: Dmx Channel Assignments And Values
220 Color 4 225 Color 5 230 Color 6 235 Color 7 240 Color 8 245 Color 9 250 Color 10 255 Color 11 Freedom Centerpiece User Manual Rev. 3 Page 9 of 18... - Page 12 101 Dimmer speed mode off Dimmer Speed Mode 152 Dimmer speed mode 1 (fast) 203 Dimmer speed mode 2 (medium) 255 Dimmer speed mode 3 (slow) Page 10 of 18 Freedom Centerpiece User Manual Rev. 3...
-
Page 13: 12-Channel (2)
Color 2 Color 3 Color 4 Color 5 Color 6 Color 7 Color 8 Color 9 Color 10 Color 11 Freedom Centerpiece User Manual Rev. 3 Page 11 of 18... -
Page 14: 12-Channel (1)
Blue, Ring 2 0–100% White, Ring 2 0–100% Warm White, Ring 3 0–100% Cool White, Ring 3 0–100% No function Strobe Strobe, slow to fast Page 12 of 18 Freedom Centerpiece User Manual Rev. 3... -
Page 15: 8-Channel
3. Use <UP> or <DOWN> to increase or decrease the sound sensitivity (Sound Sense 000–100). 4. Press <ENTER>. Preset Color Mode To run the Freedom Centerpiece on a preset static color, do the following: Press <MENU> repeatedly until Static shows on the display. Press <ENTER>. -
Page 16: Custom Color Mixing
Operation Custom Color Mixing To mix a custom static color on the Freedom Centerpiece, do the following: Press <MENU> repeatedly until Static shows on the display. Press <ENTER>. Use <UP> or <DOWN> until Manual Color displays on the menu. Press <ENTER>. -
Page 17: Maintenance
6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Freedom Centerpiece User Manual Rev. 3 Page 15 of 18... -
Page 18: Technical Specifications
Maximum External Temperature Cooling System 104 °F (40 °C) Convection Channel Range Optional Controllers 8, 12, or 16 IRC-6 Ordering Product Name Item Code UPC Number Freedom Centerpiece 03031575 781462219239 Page 16 of 18 Freedom Centerpiece User Manual Rev. 3... -
Page 19: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Freedom Centerpiece User Manual Rev. 3 Page 17 of 18... -
Page 20: Contact Us
Visit the applicable website above to verify our contact information and instructions to request support. Outside the US, United Kingdom, Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record. Page 18 of 18 Freedom Centerpiece User Manual Rev. 3...
