Siemens RDJ100 Operating Instructions

Operating instructions

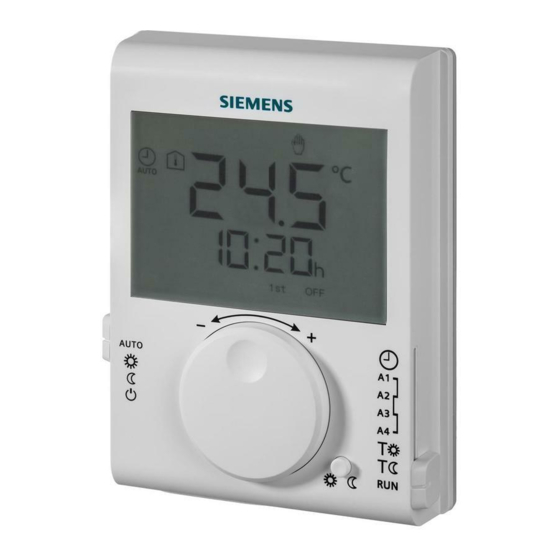

The RDJ100 is a room thermostat with a 24-hour time program that allows you to set the desired room temperature (setpoint)
for the desired time. The unit features an ergonomic setting knob for easy temperature control.
Actual room temperature in ºC
The unit controls to the selected
comfort temperature
The unit controls to the selected
energy saving temperature
The unit controls to the selected frost
protection temperature
Indicates when the temperature
setpoint was changed by the user.
This setpoint will be maintained until
the next switching time. This function
is only active in automatic mode and
comfort mode.
Setting knob
Warmer/colder for selecting
the temperature setpoint
Battery compartment
2 alkaline batteries type AA, 1.5 V
Operating mode selector
Automatic mode: The unit controls to the selected time and
temperature programs
Comfort mode: The unit controls continuously to comfort
temperature
Energy saving mode: The unit controls continuously
to energy saving temperature
Frost protection: The unit controls continuously to
frost protection temperature. This setpoint is fixed at 5 ºC
Advance button
Switches the operating mode from comfort to energy saving,
or vice versa, until the next switching time in automatic mode
A6V101035986_en--_b
RDJ100
Display
2017-03-03
Indicates when heating is
demanded
Replace batteries
Frost protection: The unit controls
continuously to frost protection
temperature
Energy saving mode: The unit
controls continuously to energy
saving temperature
Comfort mode: The unit controls
continuously to comfort temperature
Automatic mode: The unit controls
to the selected time and
temperature programs
Programming selector
Time setting position
A1
First switch-on time
A2
First switch-off time
A3
Second switch-on time
A4
Second switch-off time
Comfort temperature setting
Energy saving temperature setting
Set the controller to RUN after
RUN
programming is completed
Subject to alteration
Introduction
This leaflet provides easy-to-follow instructions to set up your
RDJ100 room thermostat.
Contents
Commissioning
Initial power-up
Setting the time
Setting switch-on and switch-off times
Setting the comfort temperature
Setting the energy saving temperature
Changing the current setpoint temporarily
What does the Advance button do?
Changing batteries
Energy saving tips
Commissioning
·
Remove the black transit tabs
from the alkaline batteries.
Check to see if the battery
compartment is in its correct
position
·
If no batteries are inserted, fit
2 alkaline batteries type AA in
the battery compartment
Initial power-up
Once batteries are inserted, all symbols
are displayed as shown for about
2 seconds.
Setting the time
1. Set the programming selector to
position
setting flashes
2. Turn the setting knob to the left
to decrease the time, or to the
right to increase the time
3. When the correct time is
displayed, move the
programming selector to any
other position to confirm your
setting
Siemens Building Technologies / HVAC Products
DE
EN
FR
IT
NL
ES
PT
CS
HU
PL
SV
FI
ZH
TR
EL
RO
DA
.The current time
