Summary of Contents for LENCO DVP-742

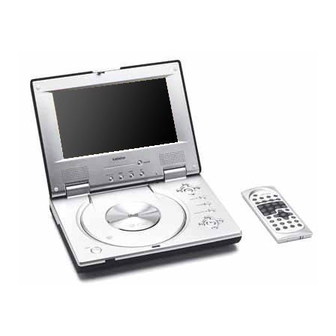

- Page 1 ENGLISH PORTABLE DIGITAL TV/DVD PLAYER PORTABLE DIGITAL TV/DVD PLAYER PORTABLE DIGITAL TV/DVD PLAYER PORTABLE DIGITAL TV/DVD PLAYER OWNER`S MANUAL OWNER`S MANUAL OWNER`S MANUAL OWNER`S MANUAL OWNER`S MANUAL REVERSE 16:9 / 4:3 Please read this manual before operating...
-
Page 3: Table Of Contents
Table of Contents Table of Contents..................................1 Safety Information..................................2 Remote Control..................................3-4 Description....................................5 Using the Remote Control................................6 Connecting Earphones to the DVD Player (Optional Accessory) ....................7 Connecting DIGITAL-TV Antenna..............................8 Connecting to an External Component ............................9 Connecting to a TV..................................10 Connecting to a Stereo Component............................11 Using the AC Adaptor................................12 Using the Battery Pack................................13 Cautions in Using Battery Pack..............................14... -
Page 4: Safety Information
Safety Information Please read all of the safety and operating instructions before operating this Player, follow all warnings placed on the Player and in the user's manual. These safety and operating instructions should be retained for future reference. Safety Information Do not expose the system to excessive moisture, rain, sand, or heat sources. -
Page 5: Remote Control
Remote Control Remote Control Name In DVD Mode In TV Mode DVBT/DVD Button Switches between TV and DVD mode. Switches between TV and DVD mode. L/R Button Selects left and right speaker output. Selects left and right speaker output. MENU/PBC Button Brings up the disc menu. No function. -
Page 6: Remote Control
Remote Control Name In DVD Mode In TV Mode MUTE Button Silences the sound. Silences the sound. ANGLE Button Use to access various camera angles on a DVD. No function. LANGUAGE Button Selects the voice language in a DVD. Selects audio language. No function. -
Page 7: Description
Description Right View Front View 1.(16:9/4:3)/MODE/DOWN/UP 9.MENU/PBC 2.OPEN 10.DVBT/DVD 3.DISC COVER 11.PAUSE/STEP 6.INPUT / OUTPUT 1.OPEN 4.LCD 12.STOP 2.EARPHONE / SPEAKER VOLUME 7.VIDEO 5. REVERSE DISPLAY 13. PLAYBACK BUTTONS PLAY 8.AUDIO OUT 3.EARPHONE JACK FAST REVERSE 6.SPEAKER FAST FORWARD 4.DC IN 12V 9.AUDIO IN 7. -
Page 8: Using The Remote Control
Using the Remote Control Installing the battery Using the remote control Point the remote control directly at the remote sensor on the front of the DVD Player. 1. Press the locking tab in the arrow direction. 2. Pull out the battery tray. Remote Control Sensor 3. -
Page 9: Connecting Earphones To The Dvd Player(Optional Accessory)
Connecting Earphones to the DVD Player(Optional Accessory) You can attach an earphone with a stereo mini-jack plug to the phone jack ( ) for private listening. Its volume is adjustable using the VOLUME control dial. You can also connect a second earphone to the AUDIO OUT jack, but its volume cannot be adjusted. -
Page 10: Connecting Digital-Tv Antenna
Connecting DIGITAL-TV Antenna To receive digital TV and radio, you need to connect an antenna to the player. Follow these steps: 1.Plug the antenna cable into the antenna socket on the Player. 2.Place the antenna on any surface. 3.The antenna has a magnetic base which can be attached to any metal surface. Two antenna poles are included for vertical and horizontal placement. -
Page 11: Connecting To An External Component
Connecting to an External Component You can enjoy video from your VCR or camcorder on your DVD player. 1. Turn off DVD player, VCR and other components. 2. Connect the audio and video cables as illustrated below. 3. Slide INPUT/OUTPUT to INPUT. 4.Turn on power. -
Page 12: Connecting To A Tv
Connecting to a TV You can enjoy DVD quality video on your TV screen. 1. Turn off DVD player and TV. 2. Connect the audio and video cables as illustrated below. 3. Slide INPUT/OUTPUT to OUTPUT. 4.Turn on DVD player and TV. 5. -
Page 13: Connecting To A Stereo Component
Connecting to a Stereo Component By connecting the digital output (SPDIF) on the DVD player through a coaxial cable (optional accessory) to a Dolby Digital/DTS amplifier or processor, you can enjoy full 5.1 channel surround sound. Follow these steps for making the connection. 1.Turn off both DVD player and your stereo system. -
Page 14: Using The Ac Adaptor
Using the AC Adaptor This portable DVD player can be powered by AC through the supplied switching power AC adaptor. It can also use the supplied battery pack to power. When the AC adaptor is connected to the unit and powered, the unit will be automatically and electrically disconnected from the battery pack and powered by the AC power. -
Page 15: Using The Battery Pack
Using the Battery Pack Installing the battery pack Align and insert the battery pack into the Slide the battery pack to the left until it clicks into place. corresponding slots on the back of the unit. Removing the battery pack Slide down the latch. -
Page 16: Cautions In Using Battery Pack
Cautions in Using Battery Pack Danger! Strictly follow these safety information when using the battery pack, Otherwise, a short circuit, overheating, smoke, fire, or damage to the product may result. Never disassemble or modify the battery pack in any way. Do not touch the terminal of the battery pack with a metal object. Do not place the battery pack in direct sunlight, dashboard of a vehicle, or high temperature place. -
Page 17: Installing Carrying Bag/Car Harness Kit(Optional Accessory)
Installing Carrying Bag/Car Harness Kit(Optional Accessory) You can install the Carrying case/Car harness kit to a car seat to enjoy the movie while driving. Following these steps: Insert the player into the bag and place Open the cover of the player and place Unzip the carrying bag and flip the elastic strap over the battery pack. -
Page 18: Watching Digital Tv
Watching DIGITAL TV 2.Use to select Country and to change country. Preparation for TV Operation 3.The language and time zone will change automatically according 1.Make sure the unit has the power either from the battery or the to the country you selected. But you still can make change. AC adaptor. -
Page 19: Watching Digital Tv
Watching DIGITAL TV Displaying Current Channel Information Changing TV Channel Press DISPLAY to display the information of current channel. You can change TV channel the following three ways: 1.Press / CH+ or /CH - . 2.Enter the channel number directly. 3.Press to display TV channel list, use select channel, press... -
Page 20: Listening To Digital Radio
Listening to Digital Radio You can listen to high quality digital radio program with this Player. 1.Press ZOOM/ TV/RADIO to change to Radio. 2.Use / CH+ or /CH- to change satiation. 5 18... -
Page 21: Scanning And Setting Tv Channel
Scanning and Setting TV Channel The Player can automatically search available TV channels and Manual Search you can also do manual search. When the channel is locked (see Setting Parental Control, Changing PIN ), any change in TV 1.Press SETUP to enter Main Menu, channel will require the input of PIN. -
Page 22: Setting Up Favorite Program List, Changing Program Order, Deleting Program
Setting Up Favorite Program List, Changing Program Order, Deleting Program Changing program order Use these keys to perform the function. 1.Press SETUP on the remote control to access Main Menu. You can change the order of the program, this is the order it 2.Use to make selection. -
Page 23: Setting Parental Control, Changing Pin
Setting Parental Control, Changing PIN Use these keys to perform the function. 3.Select Parental Setting 1.Press SETUP on the remote control to access Main Menu. 2.Use to make selection. Parental Setting 3.Press to confirm. Program Name Lock Rbb Brandenburg Rbb Berlin Channel Lock Repeatedly press SETUP to get out of SETUP menu. -
Page 24: Setting Tv System, Screen Aspect Ratio, Country, Osd, Language, Program Scheduling
Setting TV System, Screen Aspect Ratio, Country, OSD, Language, Program Scheduling Use these keys to perform the function. Changing Country, OSD language 1.Press SETUP on the remote control to access Main Menu. 2.Use to make selection. Change to the country you are in, the OSD language and Time 3.Press to confirm. -
Page 25: Setting Tv System, Screen Aspect Ratio, Country, Osd, Language, Program Scheduling
Setting TV System, Screen Aspect Ratio, Country, OSD, Language, Program Scheduling Programming TV program schedule Note: For this schedule play to work, you need to set the player: (A)In DVBT mode. (B)Power turned on, but on a PLAYBACK mode. You can program to watch a list of TV programs according to a schedule. -
Page 26: Changing To Default Setting And Personalize Your Own Screen Display
Changing to Default Setting and Personalize Your Own Screen Display Changing to Default Setting You can change all the settings to the original factory default values using this function. Program List Program Search Parental Control System Setting Game Accessory Personal Style Personalize Your Own Screen Display You can change menu color, the transparency of the menu overlapping the background and shape of the menu border. -
Page 27: Playing Games
Playing Games There are four popular games to entertain you. Program List Program Search Parental Control System Setting Game Accessory Personal Style Tetris: :to move left and right :to rotate the block, and to start a new game :to pause :to drop the block. -
Page 28: Playing A Disc
Playing a Disc Preparation for Playback Resume When you press or STOP, the player remembers where you 1.Make sure the unit has the power either from the battery pack stopped, and when you press PLAY later, it will play from where or the AC adaptor. - Page 29 Playing a Disc Slow Motion Mark (Bookmark) You can playback from a certain point using the MARK function. 1.During playback, repeatedly press SLOW to play at 1/2, 1/4, 1.During play, press MARK. 1/8, 1/16, 1/32 speeds. 2.Use to select a marking number. Press ENTER to confirm 2.To resume normal playback, press the selection.
- Page 30 Playing a Disc Zoom LANGUAGE Repeatedly press LANGUAGE during DVD playback to change ZOOM lets you enlarge the video image during playback and pan the language of the voice if the disc has multiple languages. through the enlarged image. This function is only valid for DVDs. 1.Press ZOOM repeatedly during video playback to enlarge the image to x 2 or x 4 times of the normal size.
-
Page 31: Playing A Disc
Playing a Disc Audio Channel When playing CD or VCD, repeatedly press L/R to change the sound output to Stereo, left/left, right/right Turn Off The Player 1.Press STOP twice to stop the playback, if the unit is playing. 2.Slide POWER ON/OFF to OFF to turn off the power. 5 29... -
Page 32: Playing Picture Cd
Playing Picture CD Valid Picture CD Next/Previous The player can play both Kodak Picture CD that you order from You can manually skip to the next picture by pressing , and photo processing store, and home-made CD by burning JPEG to skip to the previous picture by pressing files onto a CD-R or CD-RW disc. -
Page 33: Playing Mp3 And Regular Audio Cd
Playing MP3 and Regular Audio CD Valid MP3 CD Your MP3 files should be ISO 9660 or JOLIET format. Play In most cases, when a MP3 or audio disc is placed into the player, the first song file of the first folder plays. In other cases, the file manager appears. -
Page 34: Setting Language For Osd,Menu, Voice, Subtitle
Setting Language for OSD,Menu, Voice, Subtitle 1. Press SETUP on the remote control. Changing voice language 2. Use the direction keys ( ) to select Language Setup and its sub-menu. Language Setup 3. Press ENTER or SETUP to confirm and exit. English Chinese Menu... -
Page 35: Setting Screen And Audio
Setting Screen and Audio Selecting TV system 1. Press SETUP on the remote control. 2. Use the direction keys ( ) to select Screen Setup Screen Setup and its sub-menu. TV Type NTSC Screen Saver 3. Press ENTER or SETUP to confirm and exit. TV System Auto Brightness... -
Page 36: Setting Parental Control, Password, Camera Angle
Setting Parental Control, Password, Camera Angle Turning on/off camera angle 1. Press SETUP on the remote control. 2. Use the direction keys ( ) to select Custom Setup and its sub-menu. Custom Setup 3. Press ENTER or SETUP to confirm and exit. Parental Ctrl Password Angle Mark... -
Page 37: Adjusting Lcd Screen
Adjusting LCD Screen Following these steps to adjust the LCD quality during playback or while paused, 1.Repeatedly press MODE on the screen panel to select the parameters listed in the menu. You can change BRIGHTNESS, CONTRAST, SHARPNESS, COLOR and TINT. 2.Repeatedly press (or hold down) UP and DOWN to change the setting of the parameter selected. -
Page 38: Troubleshooting
Troubleshooting If your DVD player dose not seem to be functioning properly, check the items below before you contact a service center. Symptom Check Power does not turn on Make sure the AC Power cord is securely plugged into an AC outlet. or suddenly turns off Turn the power off and then back on. - Page 39 Troubleshooting Symptom Check While in the input mode, no picture is Check that the video or audio cable is securely connected. output from the external component Check that the DVD player is in the INPUT mode and in the DVD mode. to the DVD player Battery pack won't charge Check that the DVD player is turned off.
-
Page 40: Specifications
Specifications Power Requirements Input AC 100V~240V, 50/60 Hz, Output DC 12V General Power Consumption > 16 W Weight 940g (without battery pack) Dimensions 206mm ( W ) x 158.5mm ( D ) x 41.5mm ( H ) Operating T emperature Range +10 C~ +40 C Readable Disc DVD, DVD-R, DVD+R, DVD-RW,... -
Page 41: Tv Function List
TV Function List TV Function List Game Mine Program List TV Program List Tetris Radio Program List Gomoku Sort By Name Calendar By Service ID By Channel No . Accessory System Information Factory Default Program Search Automatic Search manual Search Personal Style Manual Color Parental Control... - Page 42 If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)
