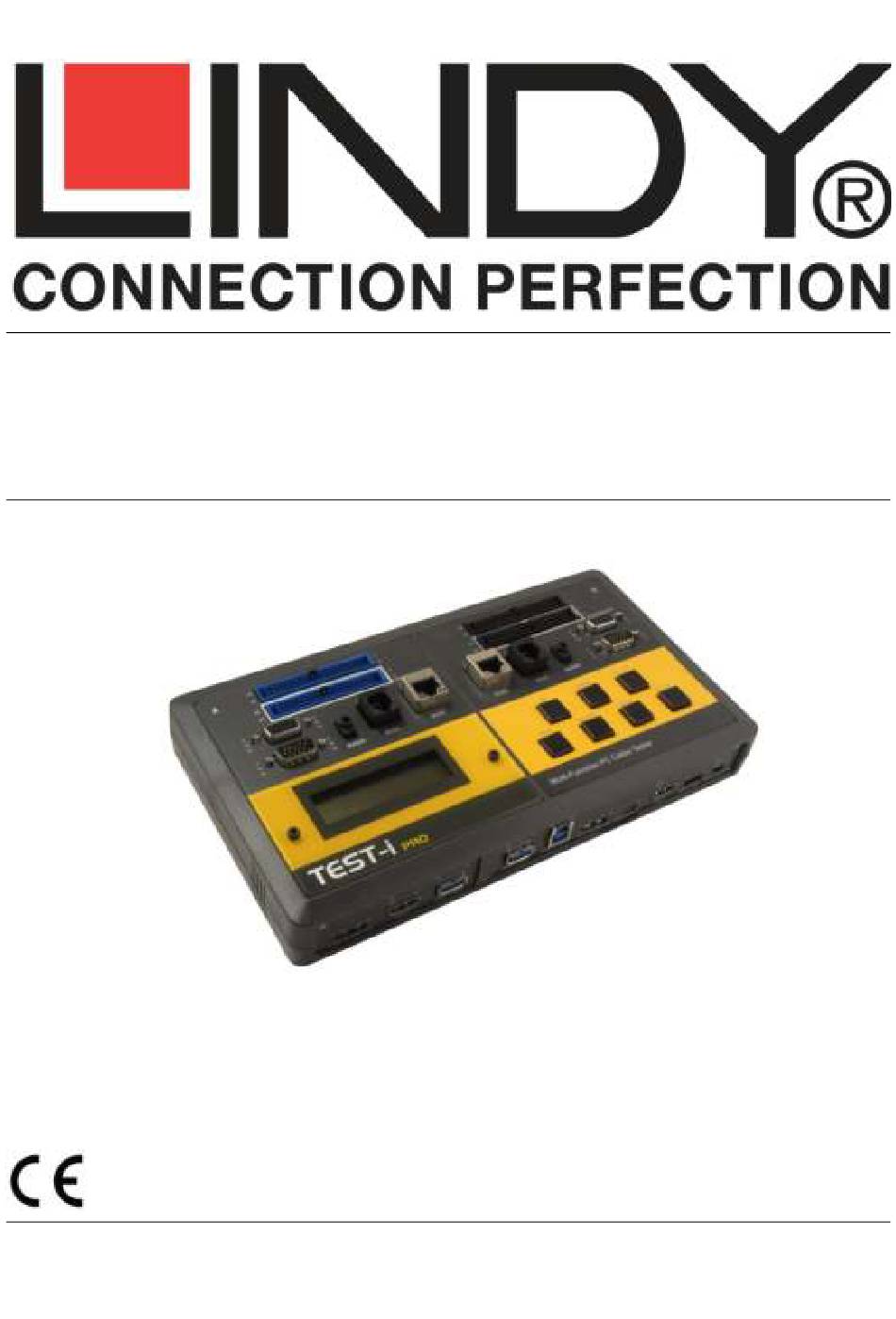

- Page 1 Multi-Function Cable Tester Pro Manual English LINDY No. 43069 www.lindy.com © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (JAN 2012)
-
Page 3: Specifications
User Manual Introduction Thank you for purchasing the LINDY Multi-Function Cable Tester Pro. This Cable Tester allows you to test and analyse a comprehensive range of connector types and commonly used cables. Cable Tester Pro includes a wire mapping function to test each pins connection and identify cable connectivity. It also shows pin–to–pin connectivity and can save up to 100 separate test results. - Page 4 User Manual Operating Instructions Press the ON/OFF button to power up the tester, a ‘beep’ will indicate the tester is working. Press the ON/OFF button once more to switch the tester fully on. Quickly press the ON/OFF button once to switch the LCD’s back light on/off. By holding the ON/OFF button the LCD will display the following message.
- Page 5 User Manual QuickTest The Cable Tester Pro’s QuickTest function allows you to test a large number of cables in a short time. Select QuickTest in the main menu then press ENTER. QuickTest Select Standard Detail to create the pin-to-pin connection to be tested. The ‘Standard’ will be compared to the other cables and determine whether these cables are good or bad.
-
Page 6: Driver Installation
User Manual When deleting a specific record select DeleteOne and press the UP or DOWN buttons to choose the record you want to delete. Press ENTER to delete the record. (Note: pressing ENTER again will delete the previous saved record.) To delete all records select DeleteAll. - Page 7 User Manual Cable Tester Software Connect the Cable Tester Pro to your computer via the USB cable and click the Cable Tester Pro icon on the Desktop. Test–i_Series table will open. The Toolbar includes Open, Save, Print, Upload, About and Exit. Test results include ID, Pin and Pin State.
- Page 8 Fare riferimento alle leggi del proprio Stato qua uando si dispone di un apparecchio elettrico o elettronico. Per ulteriori dettagli fare riferimento alla dire irettiva WEEE sul riciclaggio del proprio Stato. LINDY No. 43069 1st Edition Jan 2012 www.lindy.com...
