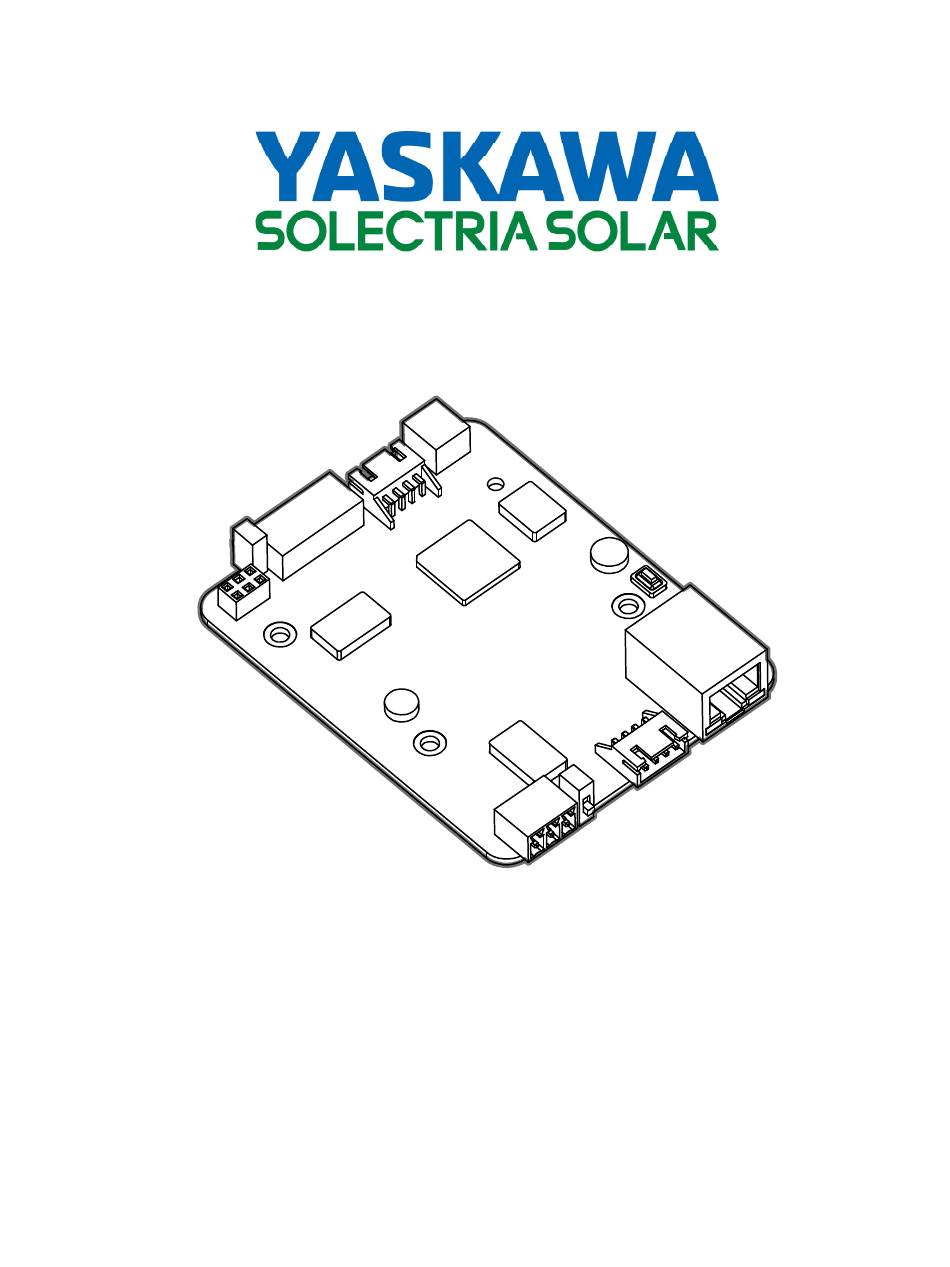

- Page 1 Quick Guide for Ethernet Network Card G2 06/01/2019 Revision 8...
- Page 2 It can also be used to remotely update the inverter firmware. Capabilities ● Remote inverter firmware upgrade support by Yaskawa Solectria Solar (YSS). ● Remote diagnostics by YSS Technical Support & Service. ● Direct customer data from the Ethernet Network Card via a programmable Ethernet XML Sunspec Data Exchange connection for customers who want to manage their own data directly.
- Page 3 Interface & Indicators Ethernet Network Card (ENC) G2 External installation option RS485 Port B Vin GND A+ B- G Switch Reboot Button Internal installation option Ethernet Port RS485 Port A WiFi Module Port Switch Pass-through Port Page 2...
-
Page 4: Scope Of Delivery
RS485 Blink: Device R/W OFF: No Activity Power Scope of Delivery Contents Note ENC G2 DC 9~24V, Max. 5 W WiFi Module Accessories D2XH Cable, 3 Standoffs with Screws, 3-Pin Connector, 5-Pin Connector ENC Enclosure 80mm * 92.5mm * 35mm... - Page 5 Installation Option Internal in Wire-Box of the Inverter 3rd Party Server YSS Server HTTPS MQTT Inverter Inverter Inverter Wire Box Router RS485 WiFi Module + APP When the inverters are monitored via the ENC, a unique RS-485 address for each inverter can be set up through the LCD interface.
- Page 6 Inverter Wire-Box The Communication Board of Inverter Remove the (3) screws that attach the inverter communication board in the Wire-Box using a #2 Phillips bit. RS485 Port Replace the screws with the (3) standoffs included in the ENC Kit. 6-PIN Header Install the ENC by carefully aligning the 6-PIN connector in the upper left-hand corner of the communication...
- Page 7 Connect the 3rd party Datalogger to the Pass-Through in the bottom left-hand corner of the ENC using the 3-Pin Connector provided in the ENC Kit. RS485 of 3rd Party Data Logger A + / B - / G Optional wire Optional wire RS485 Inverter Daisy Chain A + / B - / G...
- Page 8 Inverter RS485 Daisy Chain WiFi Module The WiFi module is connected to the WiFi port of ENC via the D2XH cable provided. Yaskawa Connect Download and install the “ ” app from the Apple Store and Google Play. Page 7...
- Page 9 Installation Option ENC in external enclosure 92.5 mm 80 mm 35 mm Screw M3*8 Screw M3*6 The ENC may be installed in an enclosure as shown. The ENC Enclosure includes a DIN rail mounting clip for installation in a NEMA4 communication box. Page 8...
- Page 10 Third-party DAS Modbus/TCP Converter Weather Station Meter Ethernet Example RS485 RS485 Fiber Data logger Switch Cellular Ethernet Ethernet RS485 Pass-through Ground wire diameter is 1 mm Typical RS485 AC/DC RS485 Power Surge ID:101 ID:102 ID:117 Don’t use the Modbus ID 160. Inverter Inverter Inverter...
- Page 11 Open the firewall ports before commissioning ! If a firewall is used to protect the network, the following ports must be opened both ways (incoming and outgoing communications): TCP 1883 with destination IP 47.254.52.209 The following outgoing ports must be opened : TCP 443 with destination solrenview.com (IP 209.160.64.80) if the firmware of ENC installed is lower than 1.6000, the following port must be...
-
Page 12: Setup And Activation
Setup and Activation Back Connect to Module Installer Site Owner WiFi Module Ethernet Card No-LCD Inverter Connected to the WiFi SSID start with “CPLK-” And the password is WiFi Gateway Firmware “Password” WiFi Setting Next Open the APP and click “Ethernet Card” Select WiFi settings and connect to the under the “Installer”... - Page 13 Quit New Gateway Activate Quit New Gateway Activate Basic Ethernet RS485 Basic Ethernet RS485 ENC Name: unknown Runtime: 22 Minutes Model: FG4E-US MQTT Connection: DISCONNECT SN: 1088000000106 MQTT Server Host: None Hardware Ver: V1.4.1751 Routing: LINK_OFF Firmware Ver: V01.6142 MAC: 00005E113C08 IP Address: 0.0.0.0 Mask: 0.0.0.0 Gateway: 0.0.0.0...
- Page 14 Quit New Gateway Activate Quit New Gateway Activate Basic Ethernet RS485 Basic Ethernet RS485 Runtime: 22 Minutes Runtime: 25 Minutes MQTT Connection: DISCONNECT MQTT Connection: CONNECT MQTT Server Host: None MQTT Server Host: yss.solectria.com 1883 Routing: LINK_OFF Routing: LINK_ON MAC: 00005E113C08 MAC: 00005E113C08 IP Address: 0.0.0.0 IP Address: 192.168.1.100...
- Page 15 Back Advanced Settings Back Ethernet Execute Inverter Port DHCP Pass-through Port Protocol of Server Ethernet MQTT Reboot HTTPS Reset Upgrade Firmware ”Reboot” will only restart the ENC. It will In the “Ethernet” area, the user can con- not erase any settings. nect the ENC to the two different servers.
- Page 16 Quit New Gateway Activate Quit New Gateway Activate Basic Ethernet RS485 Basic Ethernet RS485 --------------------------------------- Runtime: 25 Minutes Test: MQTT Connection: CONNECT 1. Server Connection [ OK ] MQTT Server Host: yss.solectria.com 1883 2. Query Inverter 1... Routing: LINK_ON MAC: 00005E113C08 IP Address: 192.168.1.100 Mask: 255.255.255.0 Gateway: 192.168.1.1...
- Page 17 Quit Email of Site Owner Next Press “Activate”. The APP will prompt you Ensure the mobile phone is connected to for an internet connection. the Internet during this step. This will require the user to disable the For email type enc@solectria.com and WiFi between his/hers smart device and then press “...
- Page 18 Apply Name a new site or choose an existing Click “Apply” to proceed with activation. site. Please ensure that the Yaskawa Solectria Solar Technical Support & Ser- vice team has the same site name on file. Name a new ENC.
- Page 19 Service portal. Connect via WiFi to the ENC. The service portal is only available for service personnel. Please call Yaskawa If the Connection is successful the user Solectria Service to ensure that your site will see an “Activated” status at the top was successfully created.
- Page 20 Monitoring Support Phone: ( 978 ) 683 9700, Option 5 Hours: 8:30 AM to 5:30 PM (EST) Mon-Fri Email: monitoring@solectria.com...
