Summary of Contents for Vulcan-Hart Kratos

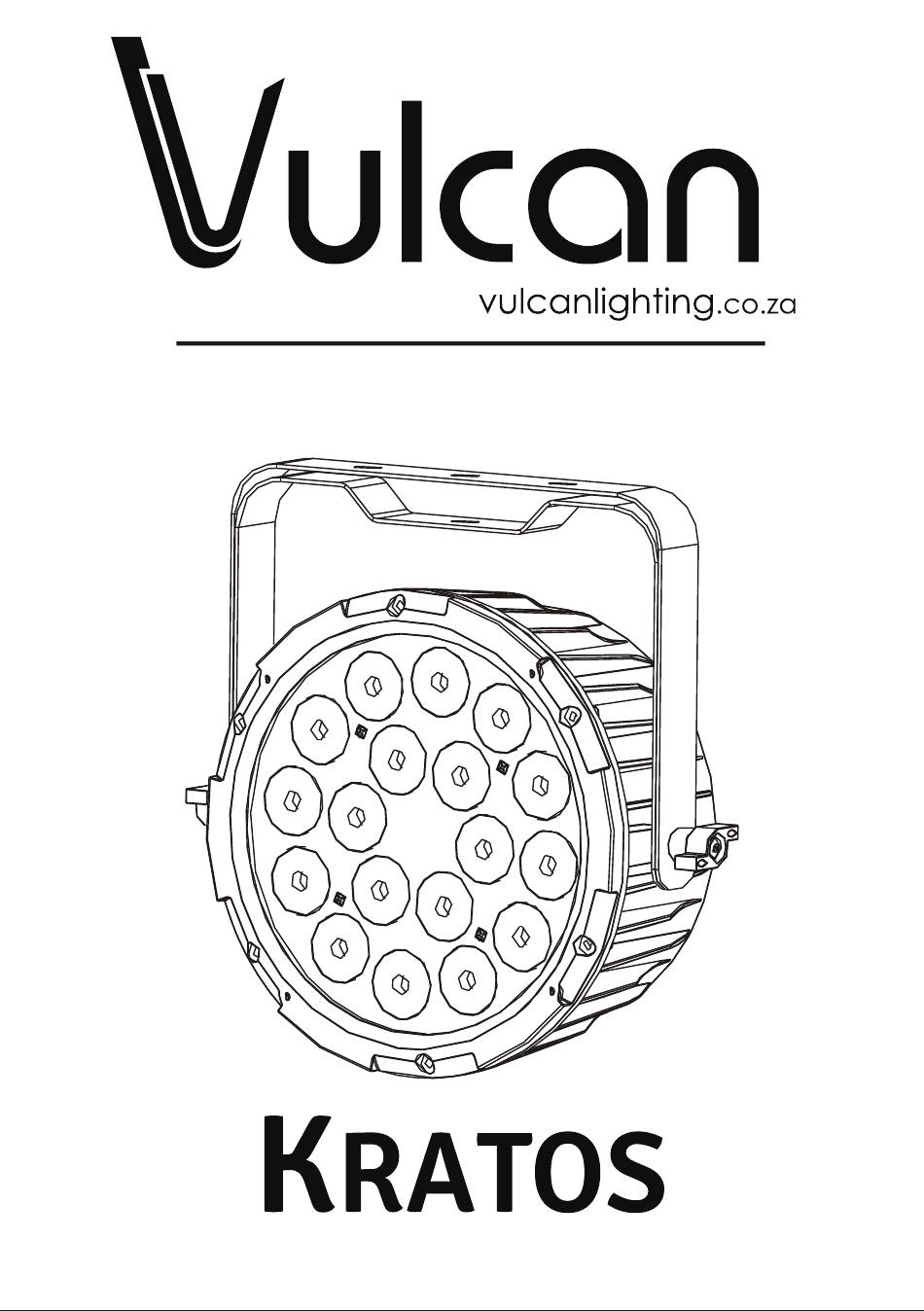

- Page 1 User Manual Please read the instructions carefully before use...
- Page 2 The Vulcan Kratos is a Versatile Multi-color LED Par Luminaire utilizing 18 x 18W RGBAW+UV LEDs. It is equipped with 3 & 5 Pin XLR’s for use with DMX-512 and also features Powercon in & through connectors.
-
Page 3: Safety Introductions
1. Safety Introductions Please read the instructions carefully which includes important information about the installation, operation and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. All fixtures are intact from the manufacturer, please operate follow up the user manual, artificial fault are not under guarantee repair. -
Page 4: Installation
Do not allow children to operate the fixture. Do not touch any wire during operation as there might be a hazard of electric shock. Avoid power wires together around other cables. Disconnect mains power before fuse/lamp replacement or servicing. Replace fuse only with the same type. In the event of serious operating problem, stop using the unit immediately. -
Page 5: Technical Specifications
Technical Specifications three kinds of operation mode: DMX Master & Slave. sound control POWER CONSUMPTION:350W DMX Channel mode: 6/10CH The built-in program control light in the master and slave mode by voice control. 0~100% smooth dimming function and effect of each variety of trobe suitable for disco, bar, mobile DJ etc. - Page 6 DMX Mode Channel slection mode Master/Slave mode Performance mode Backlight mode Menu show positive and negative direction manual mode Auto-test Machine using time...
-
Page 7: Dmx Mode
DMX Mode Select the Addr menu, press the ENTER key to confirm. Then use the initial address code DOWN/UP button to set this light (A001 ~ A512). Once you have set your initial address code, press ENTER to define and save. Not to make any changes, wait a minute to automatically exit the menu and save. -
Page 8: Backlight Mode
Backlight mode Select the LED menu, press the ENTER key to determine. Then use the DOWN/UP button to set the backlight mode: ON (Open).OFF (Close). Select the desired mode, press ENTER to determine and save. Not to make any changes, wait a minute to automatically exit the menu and save. - Page 9 Auto-test Select the Test menu, press the ENTER key to determine. The machine will start automatically detect color. Not to make any changes, wait a minute to automatically exit the menu and save. The main menu, please press the MENU button Fhrs Select the Fhrs menu, press the ENTER key to determine.
-
Page 10: Dmx512 Connections
DMX512 Connections The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. COMMON DMX + DMX INPUT DMX OUTPUT DMX - Termination reduces signal errors and avoids signal transmission problems and interference. lt is always advisable to connect a DMX terminal. (Resistance 120 ohm 1/4W)between pin2(DMX-)and pin3(DMX+) of the last fixture. -
Page 11: Fixture Cleaning
6CH Channel mode 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH Green Blue White Anbe 10CH Channel mode 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8 CH 9 CH 10 CH color Sound...
