Summary of Contents for ZALMAN GS1200
- Page 1 English...
-
Page 3: Cautionary Notes
9) Product design and specifications may be revised to improve quality and performance. Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper... -
Page 4: Product Details

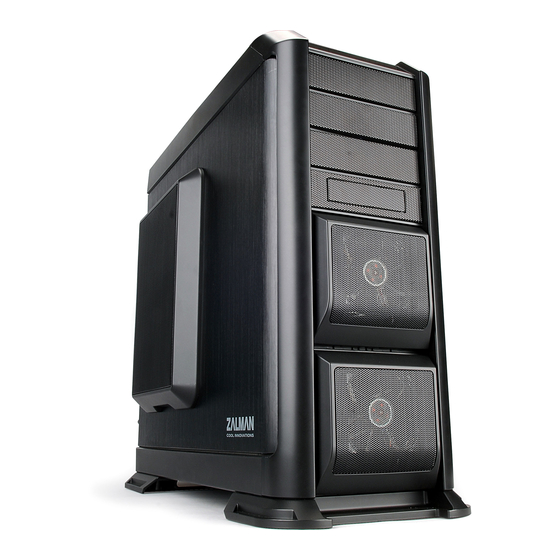

GS1200 Product Details (1) Specifications Models GS1200 Type Full Tower Dimensions (W×H×D) 260 × 570 × 640㎜ (10.2” × 22.4” × 25.1”) Weight 12.4㎏ (27.3 lb) Materials Aluminum, Plastic, Steel Color Black Motherboards Compatibility Standard ATX / m-ATX / E-ATX... - Page 5 GS1200 (3) Top Panel I/O Ports and HDD Docking Station HDD Docking Station USB 2.0 USB 3.0 e-SATA e-SATA HEADPHONE POWER RESET HDD LED Power LED Headphones Reset Button Power Button...
- Page 6 GS1200 (4) Exploded View ⑩ ⑪ ⑫ ⑬ ⑨ ⑧ ⑦ ③ ⑥ ② ① ⑤ ④ Part Name Units Part Name Units ① HDD Tray ⑧ Side Cover (right) ② HDD Tray Cover ⑨ Side Cover (left) ③ Front Cover ⑩...
- Page 7 GS1200 (5) Parts Main Unit User’s Manual × 1 Stand (front ×1, rear ×1) CPU 12V Extension Cable × 1 Stand-Off × 11 A Bolt(#6-32*12mm) × 12 [HDD] B Bolt(#6-32*6mm) × 24 C Bolt(M3*12mm) × 4 [M/B, PSU] [Stand] Cable Tie × 10 D Bolt(M3*6mm) ×...
-
Page 8: Installation
GS1200 Installation (1) Stand Assembly C Bolt (2) Side Cover Removal... -
Page 9: Psu Installation
GS1200 (3) PSU Installation Type A Type B B Bolt Type A Type B ▶ Type A (PSU independent cooling) If the PSU’s fan points downwards, the PSU’s cooling performance is enhanced. ▶ Type B (Case Air Circulation Type) If the PSU’s fan points inwards, the PSU’s cooling performance is enhanced. -
Page 10: Motherboard Installation
GS1200 (4) Motherboard Installation Please refer to the diagrams below for additional Stand Off positions (based on motherboard type). ATX Board m - ATX Board Stand-Off B Bolt... - Page 11 GS1200 (5) VGA Card Installation (6) Hot Swap HDD Installation 1) HDD Tray Removal...
- Page 12 GS1200 2) HDD Installation (to HDD Tray) ① ‘Open’ the Hot Swap Tray by pressing the Hot Swap Tray’s Hooks located on the underside, and pushing in the direction as shown in the diagram. ② Install the HDD and check that the Hot Swap Tray’s Fixing Pins and the HDD’s holes are properly aligned and fastened.
- Page 13 GS1200 (7) 5.25” / 3.5” Drive Installation 1) 5.25” ODD Installation...
- Page 14 GS1200 2) Adapter Tray Installation ① Adapter Tray Removal ② Drive Installation to Adapter Tray A. 3.5” FDD Installation D Bolt B. 3.5” HDD Installation B Bolt...
- Page 15 GS1200 C. 2.5” SSD Installation D나사 3) Top HDD Docking Station ① 3.5” HDD Installation ② 2.5” HDD Installation...
- Page 16 GS1200 4) Hot Swap PCB ① Rear ZM-HS100 HOT SWAP PCB HIGH 3-Pin Fan Connector S-ATA Connector Fan Controller 4-Pin Power Connector ② Front ZM-HS100 HOT SWAP PCB Caution ▶ The S-ATA connectors connect in A=a / B=b / C=c configuration.
-
Page 17: Cable Connection
GS1200 (8) Cable Connection 1) Power Button and LED Cable Power Button Side Power LED Power HDD LED Reset Motherboard side 2) Top Panel I/O Port Cable Top Panel I/O Port side Audio HD Audio AC ’97 USB 2.0 USB 3.0... - Page 18 GS1200 Optional Fan Installation and Replacement (1) Side Cover Fan (200 - standard / 120 - optional) ㎜ ㎜ 200㎜ Fan Pre-installed 2 x 120㎜ Fan Installation (standard) (optional) (2) Bottom Panel Optional Fan (120 ㎜...
- Page 19 GS1200 (3) HDD Cover Tray Fan Removal Open the HDD Cover and remove the Fan Bracket before uninstalling the Bracket from the Fan. Caution ▶ The replaceable fan’s specifications are 92㎜(W) x 92㎜(L) 25㎜(H). ▶ It is recommended to install the fan so that it sucks air into the case.
