Tiger 83-506 Operating Instructions

TM

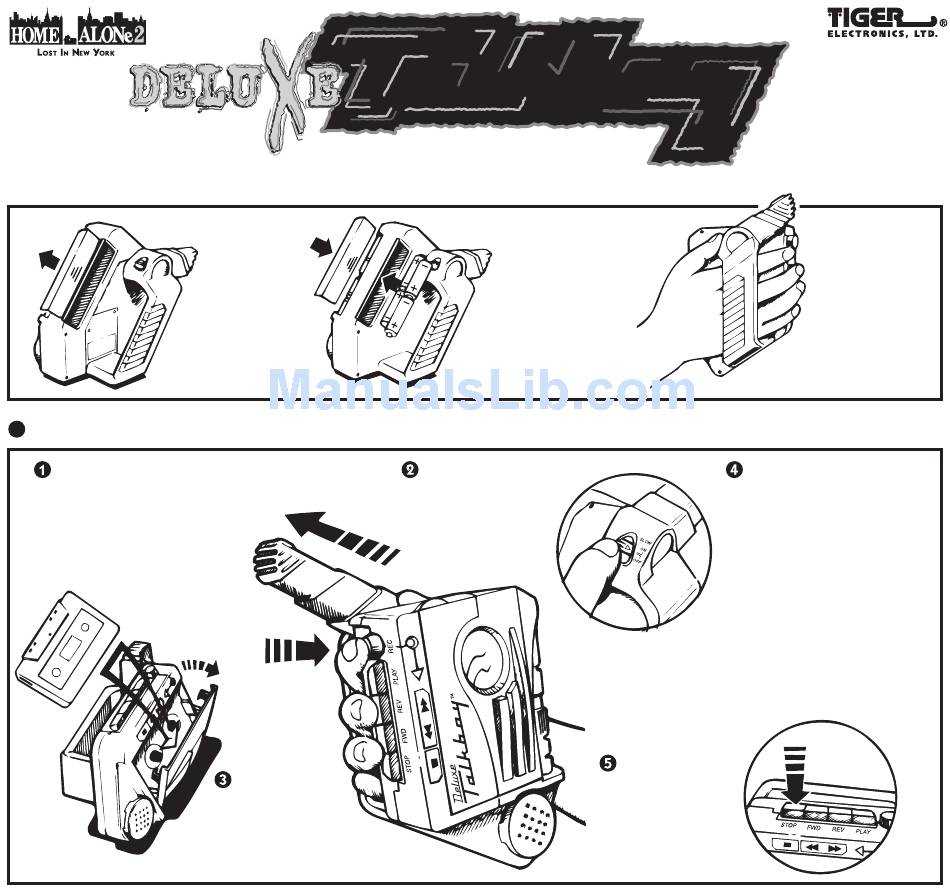

Slide battery
compartment door
(located at back of
unit) away from unit.
TO RECORD
Open cassette door
by pulling back on tab
located on door. Slide
tape through tabs in door
(thin side of cassette
should go in first).
Close door.
CASSETTE RECORDER WITH VOICE CHANGER
OPERATING INSTRUCTIONS
With your hand
through the handle,
press the RECORD
button with your index
finger. Wait for tape to
start, then record.
Insert 4 "AA"/LR6
batteries according
to diagram provided
on label in compartment.
(Do not mix old and
new batteries. Do not
mix alkaline, standard or
rechargeable batteries.
Battery installation should
be done by an adult.)
The microphone is
located at the top of
the handle. Extend
microphone by pulling
away from handle
TM
Thumb should rest
near ON/OFF switch.
The SLOW/ON/OFF switch
controls all the functions of
the TALKBOY. It is located at
your thumb for easy use. Push
to"ON" to start TALKBOY
functions. Push to"OFF" to
stop functions.
The SLOW position controls
both playback and record
functions. Playback of
normally recorded voice in
SLOW will deepen voice.
Recording in SLOW then
pLaying back at normal speed
will raise the pitch of voice.
When you are
finished recording,
press the STOP
button. Only
remove cassette
after stopping the
tape.
AGES 7 & UP
MODEL 83-506
To hold, slide
hand through
handle. Fingers
should be able to
reach buttons.
