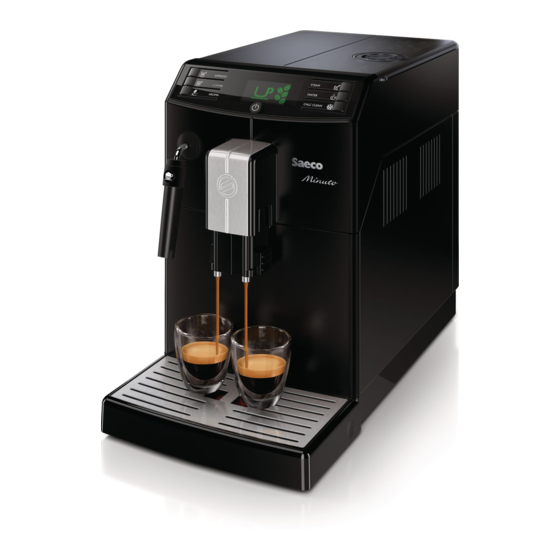

Saeco Minuto HD8761 Manual

Saeco Minuto
HD8761
First time use:
Machine needs to be installed and primed.
1. Rinse and fill the water tank with fresh water up to the MAX level.
2. Pour the coffee beans into the coffee bean container.
3. Insert the plug and switch the power button to "I". (back of the machine).
4. To turn on the machine, press the "ON/OFF " button on the front.
5. The display will indicate you have to prime the circuit.
6. Place a container under the Classic Milk Frother.
7. Press the Espresso button to start the priming.
8. After this perform a manual rinse by dispensing hot water through the hot water spout and
brew a ground coffee without adding coffee.
Buttons and symbols:
Display
On/OFF

Machine Settings

:
• Memo setting, cup volume:
Espresso and Coffee button can be
adjusted and set to your preference.
1. Place a cup under the dispensing spout.
2. Press and hold the espresso/coffee button until
the "MEMO" icon is displayed, then release it.
3. Press the espresso button when the desired
amount is reached.
Aroma Setting:
•
Five strength choices are possible by
pressing the "Aroma" button.
= extra mild aroma
= mild aroma
= medium aroma
= strong aroma
= extra strong aroma
= pre-ground coffee
Product dimensions and information
Product dimensions (L x D x H): 215 x 429 x 330 mm
•
Coffee bean capacity: 250 gr
•
Waste container capacity: 15 servings
•
Water tank capacity: 1.8 l
•
Maximum cup height: 152 mm
•
Product weight: 7.5 kg
•
• Grind settings:
The grinder can be set with the grinder
adjustment key.
Adjust while the machine is grinding. Press and
turn the knob one notch at a time.
1. Coarse grind: lighter taste, for dark roasted
coffee blends
2. Fine grind: bolder taste, for light roasted
coffee blends.
• Water hardness setting:
The water hardness can be measured with
the supplied tester strip.
1. Immerse the strip 1 sec. in water.
2. Check how many squares have changed to
red and consult the table.
3. The numbers on the strip correspond to the
water hardness adjustment settings.
4. To set the hardness on the machine; Press the
calc. clean button until the hardness setting
appears and select the number.
Water pressure in pump: 15 bar
•
Supported coffee types: Ground
•
coffee, Whole coffee beans
Classic milk frother
•

Cleaning and Maintenance

• Empty drip tray:
Empty and clean the drip tray each time
the 'drip tray full' indicator pops up through the drip
tray cover. Machine needs to be switched ON.
• Empty Coffee ground container.
Always empty the container when the machine
is switched ON and when the empty symbol
appears.
• Descaling
Descale the machine when the Calc Clean
symbol appears. Start the descaling and follow the
instructions on the display. Only use the
Philips/Saeco decalcifier CA6700. It takes approx.
35 min. Finish the complete descale process till the
end without interruption.
• Brew group cleaning.
Clean the brew group weekly. Take it out
and wash it with fresh, lukewarm water.
Clean it monthly with the coffee oil remover
tablet CA6704.
Lubricate the brew group once a month or if
needed after cleaning. Use Saeco grease HD5061
Cleaning coffee duct outlet (coffee funnel):
•
Clean the coffee duct outlet every time you clean
the brew group. Take out the brew group and
clean the coffee duct outlet with a spoon handle.
Location of the coffee duct outlet see picture 4.
:
