SATURN Coupé, 97–
Before the load carrier can be fitted, tensioning attachments must first
be mounted. The tensioning attachments should always be left on
the vehicle (The load carrier should be removed when not in use).
Read through these instructions carefully before starting the work of
assembly. If you feel in any doubt about how to proceed, ask your
local
Thule dealer for advice. You will need a TORX tool, number 15, for
assembly.

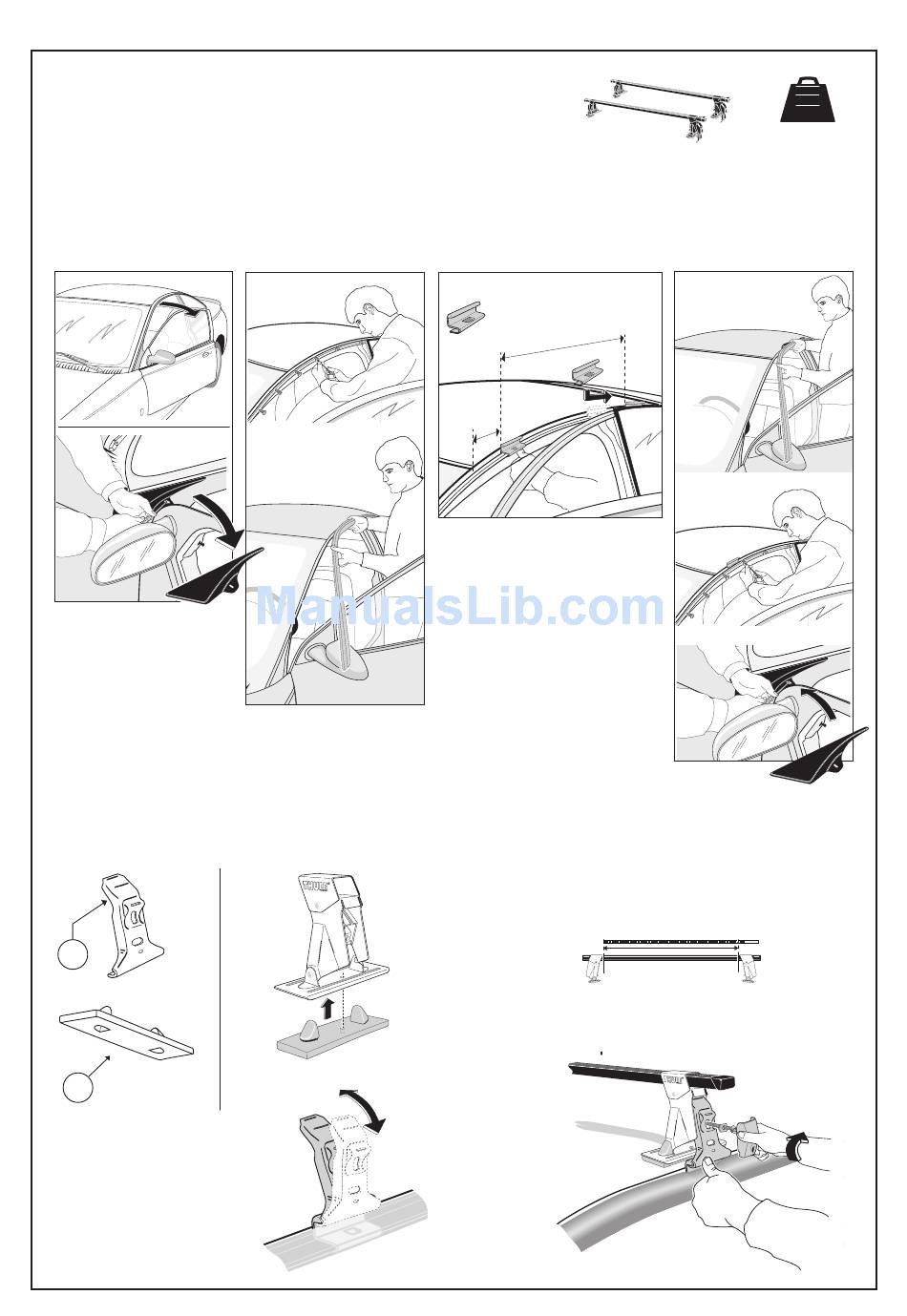

Open the doors. Remove
the plastic cover behind
the door. Unscrew the
TORX screw (1 off) using
TORX tool 15 and
remove the cover.
90
x4
x4
29
Hook the brackets
into place in the
tensioning
attachments.
Thule System Kit 2018
Unscrew the 6 TORX
screws which keep the
plastic moulding in place.
Bend the moulding out a
bit as shown in the
picture.
746•3DFK
x4
600 mm
150 mm
Press the tensioning
attachment onto the moulding.
The rearmost attachment must
be pressed on and then slid
back to the correct position.
/ 501-2018-02
M A X
LOAD
75 Kg
6,5 Kg
Re-fit the moulding and
the plastic cover.
