Sylvania SA110 Manual

http://waterheatertimer.org/Sylvania-timers-and-manuals.html
Model: SA110

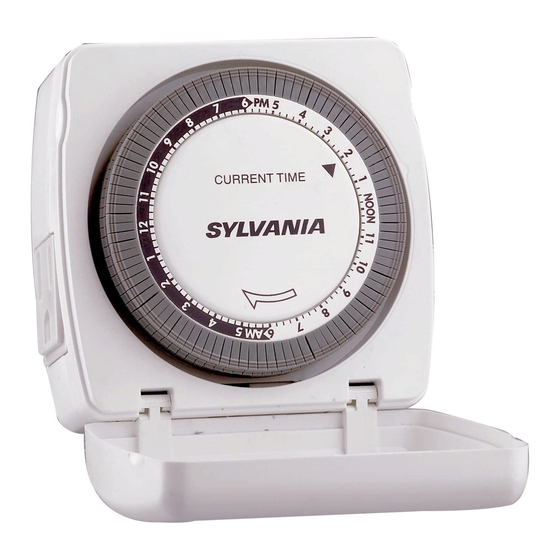

Heavy Duty Appliance Timer
CONNECT TO
POWER OUTLET
CONNECT TO
ELECTRICAL
APPLIANCE
INSTRUCTIONS:
1. To set ON and OFF times
Each gray pin equals fifteen minutes. Using fingertip, gently
depress pins to match the desired duration of ON time.
Leave pins in raised position for OFF time (period you want
power to plugged in light or appliance OFF). You can have
multiple ON and OFF settings for each 24 hour period.
NOTE: When setting ON times, make sure the Master
Switch is in the ON position. Set switch to TIMER once
you are through making your setting(s).
2. To set time of day
Turn the time dial clockwise until the arrow points to the
correct time. The dark area is night, the white area is day.
3. Plug light or household appliance into socket on body
of timer. Then plug unit into outlet. Plugging lamps or
appliances into the Extra Untimed Outlet will bypass timer
function.
4. Master switch
Move the MASTER SWITCH on the side to ON to override
the timer and provide continuous power to the connected
household appliance. Set to
DO NOT EXCEED CAPACITY
Electrical Ratings
120V Volts AC, 60 Hz
15A Resistive load for TV, electric stove, heater, kettle.
15A Inductive load for air conditioner, de-humidifier,
window/room fan.
1800W Tungsten load for tungsten lamp & lamp bulb.
1800W Incandescent load for incandescent lamp.
1/2 HP for motor.
SAFETY WARNING
Risk of electric shock
• Plug directly into an electric outlet
• For indoor use only
• Remove timer from outlet before cleaning
• Do not use in wet or damp areas
• Keep children away from timer & outlet
Risk of fire
• Do not use to control irons and cooking appliances, etc.
• Do not exceed the recommended electrical ratings
MASTER
Switch
EXTRA UNTIMED
OUTLET
TIMER for timed function.
Limited Lifetime Warranty
Hardware Innovations, LLC warrants this product to be
free from defects in workmanship and materials, under
normal use and conditions, for as long as you own it.
Hardware Innovations will repair or, at its discretion, replace
this product without charge except for the noted charges
for handling, packing, return UPS/postage, and insurance.
Note, "rates subject to change".
• $5.00 charge for models SA 100, SA 105, SA 110,
SA 130, and SA 200
• $10.00 for models SA 140, SA 145, SA 150, SA 155,
SA 160, SA 165, SA 170, SA 175, SA 210, and SA
220
• $12.00 for all models in the SA 300 series
This decision is subject to verification of the defect or
malfunction upon delivery of this product to the Factory
Service Center listed below. The product must include proof
of purchase. If this product has failed due to misuse or
circumstances not covered by the warranty, you will receive
notice of such with alternative remedies.
Please enclose a check or money order payable to the
order of Hardware Innovations for the applicable amount.
NOTE
Before returning this product for service, please first replace
the batteries (if applicable) with fresh ones, as exhausted
or defective batteries are the most common cause of
problems encountered.
IMPORTANT
1. Remove batteries (if applicable) and pack the unit in
a well-padded, heavy corrugated box.
2. Enclose a photocopy of your sales receipt, credit card
statement, or other proof of purchase.
3. Send the unit prepaid to the Factory Service Center
listed below:
Consumer Repair Department
Hardware Innovations, LLC
1330 Goodyear Dr.
El Paso, Texas 79936-6420
NOTE
This warranty is valid only if the product is used for the
purpose for which it was designed. It does not cover (i)
products which have been damaged by negligence, misuse
or accident, or which have been modified or repaired by
unauthorized persons; (ii) cracked or broken cabinets, or
units damaged by excessive heat or moisture; (iii) the cost
of shipping this product to the Factory Service Center and
its return to the owner.
This warranty is valid only in the United States of America
and does not extend to owners of the product subsequent
to the original purchaser. Any applicable implied warranties
are also limited, and Hardware Innovations will not be liable
for consequential damages. (Some states do not allow
limitations on implied warranties or exclusion of consequential
damages, so these restrictions may not apply to you.) This
warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
For questions or comments regarding this or other
products, please call our toll free number
1- 888-548-4484
