RY-24L
7
88255
30410
3
Form C Door Release Relay for AX, KB, and JP Series
The RY-24L door release relay module is an interface between the door release contact on the Aiphone master station or
CEU and the actual release mechanism. The contact closure directly from the master station or CEU has limited voltage and
current capacity. Use the RY-24L to ensure that the contact rating will be sufficient for the electric strike or magnetic lock
used. The relay's contact rating supports a majority of door release hardware available. This relay is recommended for all
AX, KB, and JP Series systems when using door release and will protect the built-in contact from possible surge damage.
(Note: Use the RY-3DL when releasing more than two doors in a JP Series, or more than one door in a KB Series).
INSTALLATION:
1. Install near the power source for the door release mechanism, or behind the master station or CEU.
2. Secure wire connections with proper termination, such as wire nuts or crimp connectors.
3. Trim the wires to the desired length.
4. Trim the unused contact wire so the bare strands are not exposed.
WIRING DIAGRAMS:

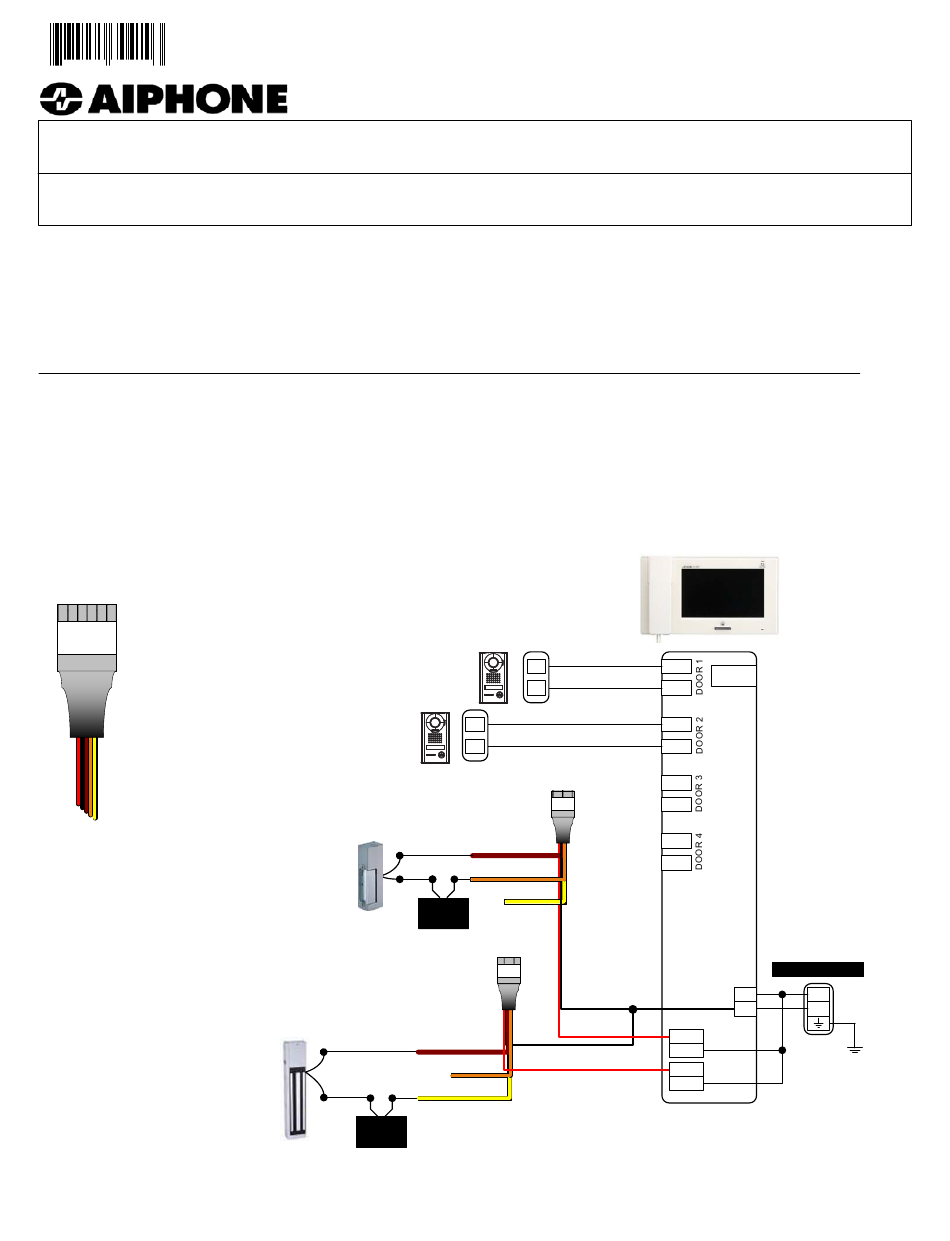

JP Series Wiring
RY-24L COLOR CODE:
RED: L/ORG
Input of Relay:
BLK: (-) Neg.
BRN: Common
ORG: N/O
Red:
L/ORG, Positive trigger
YEL: N/C
Black:
(-) Negative
Output of Relay:
Brown:
Common
Orange:
N/O contact
Yellow:
N/C contact
(See contact rating specs on
page 3)
ELECTRIC STRIKE
WIRING METHOD:
(Normally Open contact)
MAGNETIC LOCK
WIRING METHOD:
(Normally Closed contact)
NOTE: The door release contacts on the station are rated at 24V AC, 500mA. The RY-24L should be used in any application
where the strike or maglock has a higher voltage or draws more current. Otherwise, internal damage to the master station
could occur.
30410
0518
RY-24L
- INSTRUCTIONS -
Door #1
JP-DV
Door #2
JP-DV
Door
Release
#1
LOCK
POWER
RY-24L
Door
Release
#2
LOCK
POWER
A1
A2
A1
A2
RY-24L
Brn
COM
Org
N/O
Yel
N/C
Blk
Red
Blk
Brn
Red
Org
Yel
JP-4MED
1A1
M(Out)
1A2
2A1
2A2
3A1
3A2
4A1
4A2
PS-2420UL
+
+
-
-
L1
L1
L2
L2
Page 1
Advertisement
Related Manuals for Aiphone RY-24L
Summary of Contents for Aiphone RY-24L
- Page 1 POWER NOTE: The door release contacts on the station are rated at 24V AC, 500mA. The RY-24L should be used in any application where the strike or maglock has a higher voltage or draws more current. Otherwise, internal damage to the master station could occur.
- Page 2 NOTE: The door release contacts on the KB-3MRD master are rated at 12V AC, 400mA. The RY-24L should be used in any application where the strike or maglock has a higher voltage or draws more current. Otherwise, internal damage to the master station could occur.
- Page 3 3A at 30V DC or 125V AC Wiring: 2 conductors from station’s door release contacts to RY-24L 2 conductors from RY-24L to release mechanism, with power wired in series Dimensions (HxWxD): 1-3/4" x 7/8" x 7/16", with wires extending approx. 7-1/2" Aiphone Corporation Page 3 www.aiphone.com...
