  • Page 1 M-TYPE PREMIUM COMMANDER USER TRAINING...
  • Page 2 Agenda Operator Training - 2 days (DAY 1) 09:00 - 09:15 Introduction, Overview of training program 09:15 - 10:00 Presentation of advantages and differences vs traditional machine (CLASSIC) New features and functions Advantages, Opportunities for customer 10:00 - 10:30 Machine Components •...
  • Page 3 Agenda Operator Training - 2 days (DAY 1) 13:15 - 13:45 Operating modes, explication Manual Mode • Configuration of the main screen and status bar • Description of the help button • Explication of the parameter view • Explication and settings of start and end backtack •...
  • Page 4 Agenda Operator Training - 2 days (DAY 1) 15:00 - 16:15 Automatic mode • Explication of mode and seam program • Explication of the main screen and program selection • Explication of the correction factors • Exercises: Sewing in automatic mode, select a predefined program, identify and modify parameter settings 16:15 - 16:45 Conclusion, Questions...
  • Page 5 Agenda Operator Training - 2 days (DAY 2) 09:00 - 09:30 Recapitulation of the 1st day Questions 09:30 - 10:30 Programming • Explication of program management • Edit a program • Settings of base parameters • Explication of global program parameters •...
  • Page 6 Agenda Operator Training - 2 days (DAY 2) 13:15 - 14:45 Programming Mode, creation of programs • Create a new program • Exercises: Creation of simple programs 14:45 - 15:00 Break 14:30 - 16:15 Programming Mode (cont.) Exercises: • Creation of complex programs comprising multiple seam sections, forward/backward sewing in program, parameter settings in program 16:15 - 16:45 Conclusion, Questions...
  • Page 7 Why M-TYPE PREMIUM? • Productivity • Higher efficiency due to programming functionality / increased no. of operations per machine. • Better Quality Results • Automatic and more precise adjustment / finer calibration tuning • Facility to reproduce parameter settings (more precise results) •...
  • Page 8 Differences PREMIUM vs. CLASSIC • Digital function control with panel Commander • Reproducible and reusable parameter adjustment • Creation of automated programs • Automation of seam sections • End backtack settings can vary from adjustments of start backtack • Sewing foot lift height adjustment (max. 20 mm) •...
  • Page 9 Video Stitch Length Thread Tension Foot Pressure Footstroke...
  • Page 10 Advantages/Opportunities Problem: • Small volume lot sizes • Numerous models • long setup times • Dynamic model line Solution/Opportunity: • Programmable sewing machine • Execution of different seam operations using the same machine...
  • Page 11 M-TYPE PREMIUM Operation panel Commander Basic / Commander Pro...

  • Page 12: Machine Components

    Machine Components  (1) Programmable thread tension    (2) Push buttons (3) Stitch adjustment lever  (4) Bobbin winder /  (4a) motorized winder  (5) Oil level indicator  (6) Jog Dial (electronic hand wheel) (7) Control panel OP3000 (standard) ...
  • Page 13 Machine Components Programmable foot stroke (max. 9 mm) Control Panel Sewing machine motor Commander Pro integrated in machine head Programmable Bobbin winder with bobbin thread tension winding mechanism Hand wheel Oil level Thread Clamp Service Stop indicator (optional equipment) Button Electronic hand Sewing lamp LED wheel (Jog Dial)

  • Page 14: Function Buttons

    Push buttons (soft keys) Function Buttons Favorite Button press and turn vertically!
  • Page 15 M-TYPE PREMIUM Operation panel Commander Basic / Commander Pro...

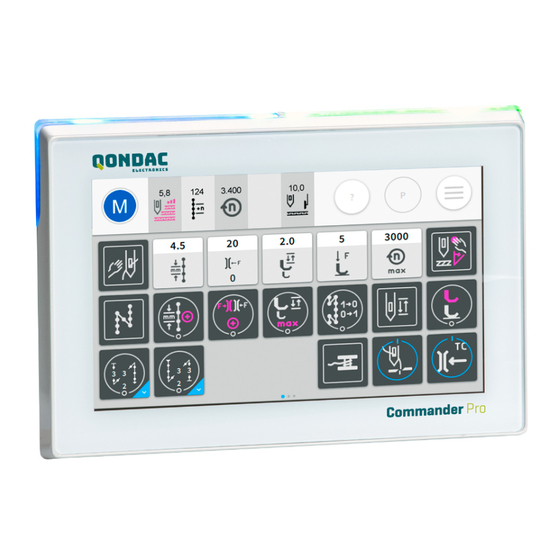

  • Page 16 Operation panel Commander Basic / Commander Pro Commander Basic: • 7” touch screen • 4 GB Internal storage capacity • Media formats: PDF / WebM VP8 • LED status indicator • 2 USB ports Commander Pro: • In addition to the basic features, the Commander Pro has an Ethernet interface (for easy communication with QONDAC) and an NFC-module...
  • Page 17 Main screen – Manual Mode Parameterview Manual/ Automatic-Modus Help button Navigation Status bar Main screen...
  • Page 18 Commander Basic / Pro – Main screen Sewing foot Thread tension Foot pressure Stitch length stroke Max. Speed the additional parameters are indicated with the + sign...
  • Page 19 Value Tiles with popover menu • Settings of parameters which are used often (light grey buttons) • Adjustment in steps (plus and minus button), overwriting the value directly or continuous adjustment (Slide bar)
  • Page 20 resting/tentative Functional Tiles ( ) – Freely configurable Manual/ Automatic- mode Navigation Point position Threading mode Manual backtack Sewing foot lift Thread clamp Seam begin Thread trimmer and seam end backtack...
  • Page 21 Folie 20 neuer Screenshot mit 0 Stichen benötigt Henrik Schuette; 06.02.2019...
  • Page 22 Multi-Functional Tiles with popover menu • SingleTap • Longpress (1s press and hold) Opening of backtack popover Indicator for Longpress- Popover...
  • Page 23 Status bar - Configuration • Material thickness • Seam length (Number of stitches) • Speed • Handwheel position • Pedal position • Stitch Counter Bobbin Thread Select tiles via Drag and Drop • Edge Guide Position • Daily Piece Counter...

  • Page 24: Main Screen - Configuration

    Main screen - Configuration • Freely configurable • 3 pages • Every user can configure his own main screen • Function tiles for each function Select tiles via Drag and Drop...

  • Page 25: Help Button

    Help Button Help Button Single Tap: Help mode is actived for single function. Next tap opens an information advice. Closing of the information window deactivates the help button. Long Press: Demo mode No automatical deactivation of the help button after closing of information advice.

  • Page 26: Parameter View

    Parameter view Seam Begin Seam Global Parameter Seam End...
  • Page 27 Parameter view – Segment...
  • Page 28 Parameter view – Parameter • Additional values (+) • Stitch length • Sewing foot stroke • Needle • Main parameter • Bobbin monitor mode • Point position • Correction speed effect • Correction material thickness effect...
  • Page 29 Parameter Seam begin / Seam end Seam begin Seam end...
  • Page 30 Settings seam begin backtack / seam end backtack On/Off Single tap onto value opens numerical keyboard Increase or decrease value If the function „Stitch length default“ is activated, the same stitch length is used in the backtack as in Indicator for Drop-Down the seam menue, opens further settings...
  • Page 31 Settings backtack Speed of automatical backtack Single stitches per pedal during backtack If the function „Needle 0 = Off thread tension default“ is 1 = Single stitches with activated, then the same backtack speed tension is used in the 2 = Single stitches with backtack as in the seam pedal-dependent sewing speed...
  • Page 32 Start backtack - Repetitions 1 Repetition 2 Repetitions 3 Repetitions 4 Repetitions backtack backtack starts starts forward backward seam seam seam seam Impair Pair...
  • Page 33 Exercise: Sewing in Manual Mode, other parameters Pre-setting in Manual Mode During sewing process • modify the base parameters: • start sewing • stitch length 5.0 mm (automatic start backtack) • needle thread tension 25% • activate/deactivate the auxiliary values: •...
  • Page 34 Exercise: Backtack with Pedal Stop Adjustment of backtacks During sewing process • other parameters • start sewing P… (automatic start backtack) • Start backtack active (On) • interrupt the sewing process (pedal) • Number of backward stitches (3 points) • Number of forward stitches (3 points) •...
  • Page 35 Parameter Material thickness detection • Material thickness detection On/Off Goal: Goal: – Sewing foot stroke consistent good consistent good – Stitch length sewing results sewing results – Needle thread tension – Sewing foot pressure – Max. Speed – Maximum speed •...
  • Page 36 Example: Material thickness - Foot Stroke Max. Thickness Min. Thickness Min. Value (Seam parameter) Max. Stroke...
  • Page 37 Exercises: Adjustment Material thickness detection Mode linear Mode 2. Value On/Off • Active (On) • Stitch length • Stroke • Mode 2. Value On/Off • Mode linear • Min. Material thickness 3.0 mm • Sewing foot stroke 8.0 • Min. Material thickness 2.0 mm •...
  • Page 38 Exercise: Sewing in Manual Mode, Gap and Gap+ Pre-setting in Manual Mode During Sewing Process • modify the base parameters : • start sewing • stitch length 3.8 mm (automatic start backtack) • thread tension 25% • activate/deactivate the additional values •...

  • Page 39: Navigation Mode

    Navigation Mode Program-Management to create, delete, copy or edit programs All types of settings (depends of access level) Logout and Tutorials: PDFs opening of and videos Login-Screens...

  • Page 40: Automatic Mode

    Automatic mode • Program selection • Select from the program list or search for the right program by clicking on the magnifying glass.
  • Page 41 Automatic mode • During sewing process • Indication of actual seam section • Display of parameter values defined in the seam section • Program progress (program bar) • Predefined number of stitches per section • Backtacks • Switch between two seam sections with a stop and with/without thread cutting •...
  • Page 42 Automatic mode: Main screen Current seam- progress Sketch of sewing progress Switch to previous or next section Predefined number of stitches per section Pop over tiles: correction parameters could be changed Information tiles: Threading Preset value mode Current value e.g. Speed Correction / Material Thickness...
  • Page 43 Automatic Mode: Correction actors • correction %age for stitch length and thread tension • Test results • Due to the influence of different material GOAL REALITY Test the correction values and adjust alteration %age...
  • Page 44 Exercise: Identify configurations / settings • Selection of programme no.10 SEAM 10 MANUEL • Which program settings can you identify? – Number of seam sections ? – Backtacks ? – Thread Trim ? – Stop between seam sections ? – Predefined number of stitches ?
  • Page 45 Automatic Mode: Sewing a program • Program Selection • Start sewing process • Switch to previous and following seam section • Function Button no. 6 • USEFUL! Favourite button (assign feature of function buttons) • Skip a seam section of the program •...
  • Page 46 Exercise: Sewing in Automatic Mode • Utilise a program consisting of several seam sections – Select a program using the program selection: Program 10 – SEAM 10 MANUEL – Sew the program • start backtack automatically executed • switch to next seam section (function button no. 6 or •...
  • Page 47 Exercise: Sewing in Automatic Mode • Sewing of a program consisting of several seam sections and specific number of stitches per section – Select a program using the program selection: Program 20 – SEAM 20 AUTOMATIC – Sew the program •...
  • Page 48 Conclusion Day 1 • Introduction to the M-TYPE PREMIUM machine • Advantages, new functions • Components of the machine • Control Panel Commander Basic / Pro • Manual Mode • Parameter adjustment • Start backtack / end backtack • Material thickness detection •...
  • Page 49 QUESTIONS?
  • Page 50 THANK YOU FOR YOUR ATTENTION...
  • Page 51 Recapitulation of First Day • Control panel Commander Pro • How to navigate in the menus • Use of Softkey Menu, favourite button • Manual Mode • Adjustment of base parameters • Adjustment of other parameters • Thread trimmer • Start backtack / End backtack •...

  • Page 52: Program Management

    Program management...
  • Page 53 Program management Create a new Copy highlighted Delete highlighted Searching function program program program Available programs...
  • Page 54 Program management Create a seam Configuration of main Home button screen and status bar Delete a seam Back to Main screen Copy a seam Play button Play selected Program Seam settings Seam sketch Available seams in segment...

  • Page 55: Edit A Program

    Edit a program Back to program Switch between management Seams 1. Segment (Sketch) A seam segment consist of segment begin, segment and segment end Global seam parameter Thread cutting is only available in the end of seams...
  • Page 56 Segment parameter – Seam begin Seam begin Backtack parameters are similar to manual mode Thread clamp Backtack activated activated Number of stitches in segment Segment number Sewing stop in the end of segment Backtack deactivated for segment end...
  • Page 57 Segment parameter – Seam end – Sewing stop Segment end Stop at segment Function at segment end Seam end (last segment) Sewing Stop & Thread Trimming Backtack activated for seam end...
  • Page 58 Segment parameter...
  • Page 59 Global seam parameters • Additional values(+): • Stitch length(+) • Needle Thread tension(+) • Sewing foot stroke(+) • Program Cycle • Next program • Program cycle • Main Parameters • Needle thread clamp • Bobbin monitor mode • Counter mode (Daily piece counter) •...
  • Page 60 Automatic mode: Main Screen Switch to previous or next section Sketch of sewing progress Pop over tiles: Parameters could be changed Bobbin wind Threading mode mode Information tiles: Preset value Current value e.g. Speed Correction / Material Thickness...
  • Page 61 Exercise: Edit Mode – Modify program P10 1. Select the program P 10 – SEAM 10 Manuel and press 2. Select segment 1. 3. Modify the following parameter settings: • Segment 1: • stitch length 6 mm • sewing foot stroke 2.5 mm •...
  • Page 62 Programming Mode: Create a program • Open the navigation and press „Programming“ • Press in the left box • Edit the name of the program via double tap on the name • Press (in the right box) to edit the first seam in the program.
  • Page 63 Exercise: Create a Simple Program Create a program consisting of one seam section only • Create program P 7 PROGRAM SIMPLE • Add a segment • Set the seam section parameters: • stitch length 4 mm • sewing foot stroke 3 mm •...
  • Page 64 Exercise: Create a complex Program Create a program consisting of several seam sections • Create the program • Segment 2: P 8 COMPLEX PROGRAM • stitch length 6 mm • sewing foot stroke 5 mm • Segment 1: • stitch count: mode 0 (not counted) •...
  • Page 65 Exercise: Create a program BACKTACK Creation of a program with backward sewing • Create the program • Segment 2: P 9 BACKTACK • Stitch count.: number of stitches 4 pt • Segment 3: • Segment 1: • number of stitches backwards: 2 pt •...
  • Page 66 Exercise: Programme « Cross » stitch length: 3,5 mm sewing foot stroke 3 mm sewing foot pressure 3 thread tension 20% maximum speed: 200 Segment 1: 2 forward stitches Segment 2: 4 backward stitches Segment 3: 2 forward stitches, Foot lifted active On -->...
  • Page 67 Practice various programs • Basic parameters • stitch length: 3,4 mm • thread tension: • sewing foot pressure: • sewing foot stroke: • Programs for chapes (bag handles, etc.) • Backtacks...
  • Page 68 Exercise: Create a complex program Create a program consisting of divers seam sections • Create the program • stitch count: number of stitches 7 Start P 30 SEWING TEST sewing • Section 3: • stitch count: number of stitches 7 •...
  • Page 69 Programming Mode: Copy / Delete a program 1. Select the program you want to copy 2. Press 3. Press to adjust a seam in the program and adjust the parameters of the selected section 4. To delete a program press button in the program management...
  • Page 70 Conclusion Day 2 • Edit Mode: Modify / Edit programs • Global program parameters • Parameters of seam section • Programming Mode • Create programs • Adjust basic parameters, parameters for the seam sections and global program parameters • Copy / Delete a program...

  • Page 71: Best Practice

    BEST PRACTICE • Useful sequence for creation of programs (Adding a new section in the program copies the values of the previous section) • Pre-set of default values for programs in technical mode (values used for first section) • Copy a program and modify settings...
  • Page 72 QUESTIONS?
  • Page 73 THANK YOU FOR YOUR ATTENTION...
  • Page 74 Subject to design changes - Part of the machines shown with additional equipment - Printed in Germany © Dürkopp Adler AG – Additional Instructions – 0791 867729 EN - 00.0 - 04/2019...
