Quick Start Guide

BB 560M

High-Quality Professional Headphones with

Built-in Microphone

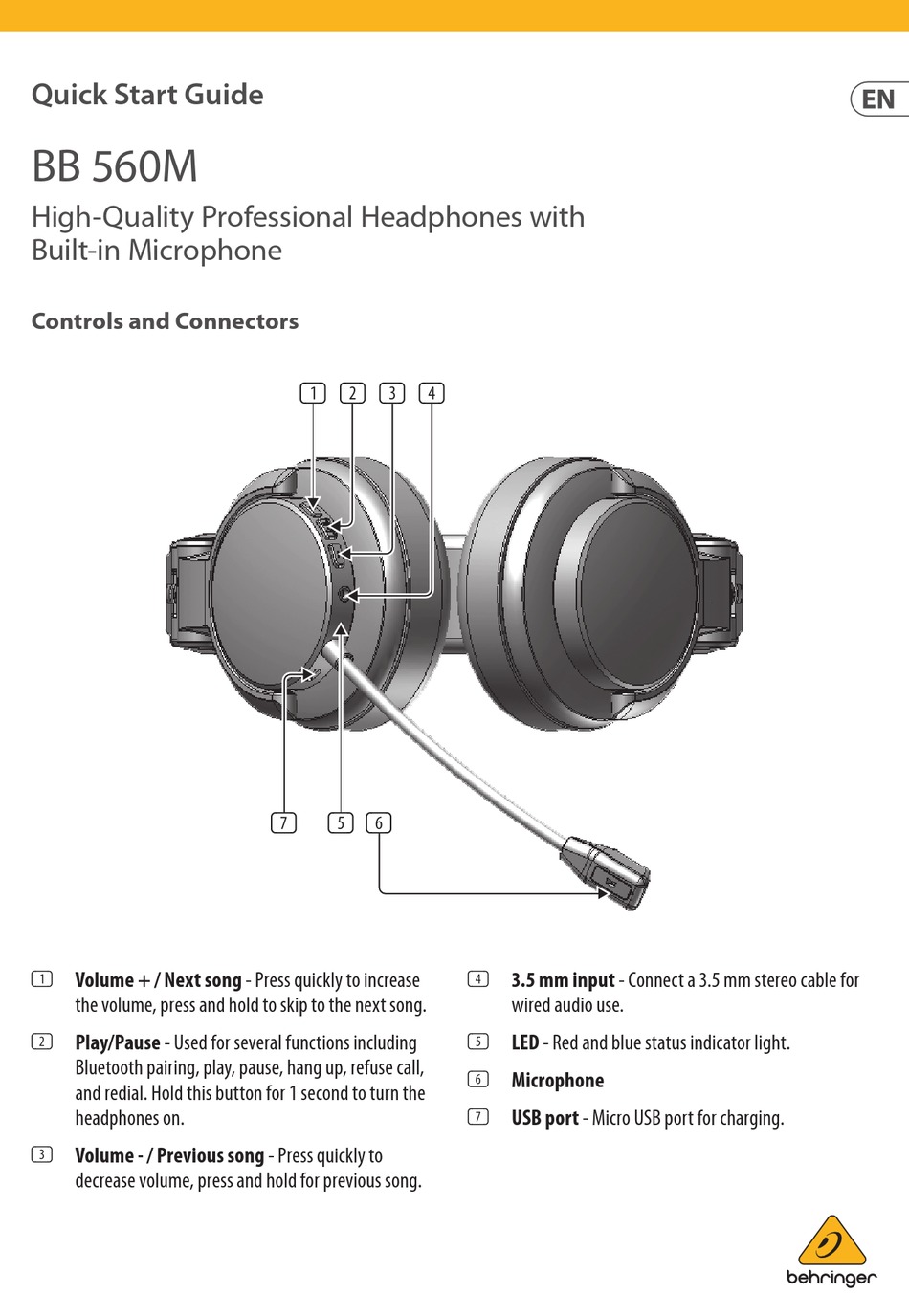

Controls and Connectors

(1) Volume + / Next song - Press quickly to increase

the volume, press and hold to skip to the next song.

(2) Play/Pause - Used for several functions including

Bluetooth pairing, play, pause, hang up, refuse call,

and redial. Hold this button for 1 second to turn the

headphones on.

(3) Volume - / Previous song - Press quickly to

decrease volume, press and hold for previous song.

(1)

(2)

(3)

(4)

(7)

(5) (6)

(4) 3.5 mm input - Connect a 3.5 mm stereo cable for

wired audio use.

(5) LED - Red and blue status indicator light.

(6) Microphone

(7) USB port - Micro USB port for charging.

Page 1: Quick Start Guide
Quick Start Guide BB 560M High-Quality Professional Headphones with Built-in Microphone Controls and Connectors (5) (6) (1) Volume + / Next song - Press quickly to increase (4) 3.5 mm input - Connect a 3.5 mm stereo cable for the volume, press and hold to skip to the next song.
Page 2 3. To end a call, press the Play/Pause button or press the 3. Select "BB 560M" from the list. When pairing is successful, hang up button on the phone screen. After the call ends, any the headset will beep once and the LED will light blue. If a music that was playing prior to the call will resume.
Page 3 Specifi cation Version Bluetooth V5.0 Frequency range 2.402 - 2.480 GHz ISM Band Wireless transmission standard Class 2 Channel 79 channels of 1 MHz bandwidth Connection type Point-to-point Transmitting range 10 m (free space) Frequency response 20 Hz - 20 kHz Signal to noise ratio 80 dB Audio power output...
Page 4: Legal Disclaimer
All trademarks are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Auratone and Coolaudio are trademarks or registered trademarks of Music Tribe Global Brands Ltd. © Music Tribe Global Brands Ltd.
