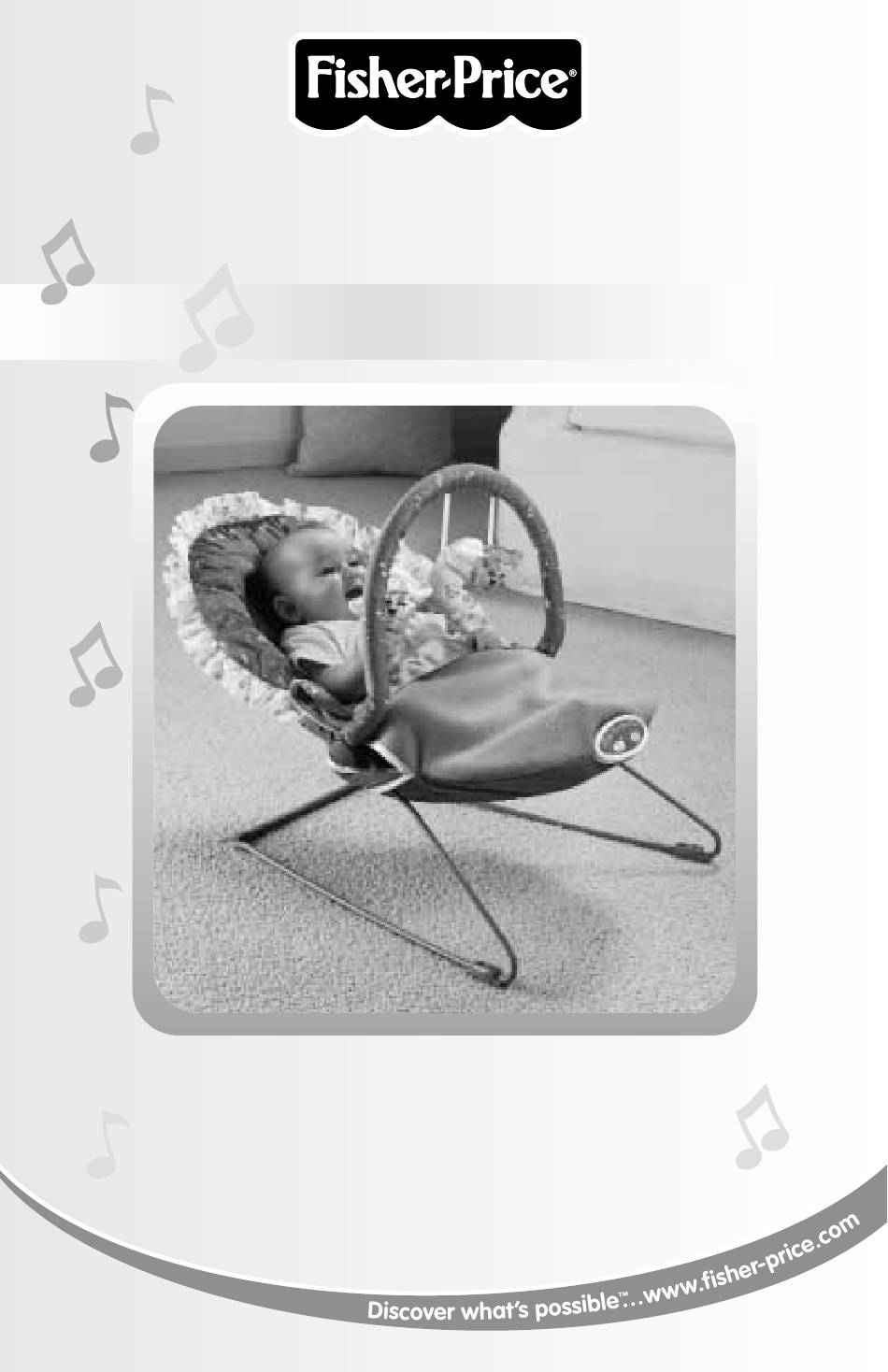

Classical Chorus
™
Bouncer
Model Number: B0772
Please keep this instruction sheet for future reference,
as it contains important information.
Adult assembly is required. Tool required for assembly:
Phillips Screwdriver (not included).
Requires three "C" (LR14) alkaline batteries (not included).

Advertisement

Table of Contents
loading

Related Manuals for Fisher-Price Classical Chorus B0772

Summary of Contents for Fisher-Price Classical Chorus B0772

  • Page 1 Classical Chorus ™ Bouncer Model Number: B0772 Please keep this instruction sheet for future reference, as it contains important information. Adult assembly is required. Tool required for assembly: Phillips Screwdriver (not included). Requires three “C” (LR14) alkaline batteries (not included).

  • Page 2: Warning And Caution

    Warning and Caution WARNING To prevent serious injury and/or falls: • Never use on any elevated surface, since child’s movement may cause bouncer to slide or tip over. • Never use as a carrier or lift while child is seated. •...
  • Page 3 Parts Toybar Seatback Tube Retainer Footrest Retainer Right Base Wire Soothing Unit Base Tube #8 x " Screw - 2 Left Base Wire Shown Actual Size...

  • Page 4: Battery Installation

    Battery Installation 1.5V x 3 “C” (LR14) SHOWN ACTUAL SIZE Battery Compartment Door • Loosen the screw in the soothing unit battery compartment door with a Phillips screwdriver. Remove the battery compartment door. • Insert three “C” (LR14) alkaline batteries, as indicated inside the battery compartment.
  • Page 5 Assembly Colored Tabs Base Tube Right Base Wire Left Base Wire Base Tube Base Wire • Place the base tube on a flat surface as shown. • Position the left and right base wires as Colored Tab shown. Note the location of the colored Back View tabs on the left and right base wires.
  • Page 6 Assembly Footrest with Soothing Unit Flex Base Wires Inward • Position the footrest so that the soothing unit is upright. • While flexing the base wires toward each other, hook the footrest onto the ends of the base wires. • Push the footrest down completely to the tabs on the base wires. Base Wire Seat Back Tube Base Wire...
  • Page 7 Assembly Retainer Retainer Socket Socket Seat Back Tube PULL UP • Fit a retainer to the outside of the seat back tube, as shown. Make sure the socket in the retainer is upright. • Insert a screw through the hole in the seat back tube, base wire and into the inside of the retainer.
  • Page 8 Assembly Footrest Soothing Unit Seat Back Tube • Position the pad above the frame with the blanket toward the soothing unit. • Fit the upper pocket on the back of the pad onto the seat back tube • Lift the footrest. Fit the lower pocket on the back of the pad onto the footrest .
  • Page 9 Assembly Toy Bar Retainer Retainer Socket Socket Plugs • Fit the toy bar plugs into each retainer socket. • The toy bar is removable. Simply pull to remove.

  • Page 10: Setup And Use

    Set-Up & Use WARNING To prevent serious injury and/or falls: • Never use on any elevated surface, since child’s movement may cause bouncer to slide or tip over. • Never use as a carrier or lift while child is seated. •...
  • Page 11 Set-Up & Use Buckle Buckle Anchored End Anchored End Free End Free End Loosen Tighten To tighten the restraint: • Feed the anchored end of the belt up through the buckle to form a loop • Pull the free end of the belt •...
  • Page 12 Set-Up & Use Power Button Mode Switch Music and Calming Vibrations • Make sure your child is properly secured in the seat. • Slide the mode switch on the soothing unit to select music, calming vibrations or both! Then press the power button to turn your selection on. Music •...
  • Page 13 Set-Up & Use Blanket • Fold blanket up on baby’s lap. Storing the Blanket • Pull the blanket down completely. • Fold the blanket under the footrest wire. • Tuck the blanket into the pocket on the underside of the pad.
  • Page 14 Care The pad is machine washable. Wash it separately in cold water on the gentle cycle. Do not use bleach. Tumble dry separately on low heat and remove promptly. The frame, toy bar and toys may be wiped clean using a mild cleaning solution and a damp cloth. Do not immerse the soothing unit.

  • Page 15: Fcc Note (United States Only)

    FCC Note (United States Only) Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 16: Consumer Information

    Consumer Information Questions? We’d like to hear from you! Call Fisher-Price ® Consumer Relations, toll-free at 1-800-432-5437, 8 AM – 6 PM EST Monday through Friday. Hearing-impaired consumers using TTY/TDD equipment, please call 1-800-382-7470. Or, write to: Fisher-Price ® Consumer Relations 636 Girard Avenue East Aurora, New York 14052 For other countries, outside the United States:...
