Jabra Headset Installation
Overview

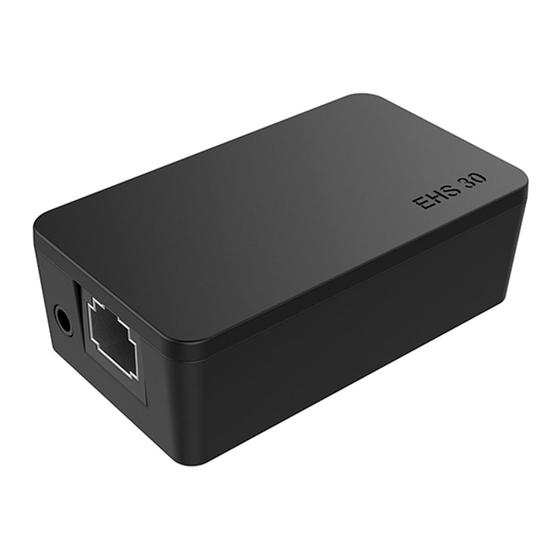

EHS30 Included Contents
EHS30
3.5MM DC Jack
RJ12 Cord
RJ45 Cord
EHS30 Ports
1.
RJ-12 Port for IP Phone EXT/EHS or Expansion Module
2.
Operation LED
3.
3.5mm DC Power Jack (not applicable to Jabra Headsets)
4.
RJ-45 Jack
Headset Base and Phone Ports
Advertisement
Related Manuals for Jabra EHS30
Summary of Contents for Jabra EHS30
- Page 1 EHS30 Included Contents EHS30 3.5MM DC Jack RJ12 Cord RJ45 Cord EHS30 Ports RJ-12 Port for IP Phone EXT/EHS or Expansion Module Operation LED 3.5mm DC Power Jack (not applicable to Jabra Headsets) RJ-45 Jack Headset Base and Phone Ports...
- Page 2 Putting 92X and 93X Headset in to DHSG Mode You need to make sure your Jabra headset is set up for the DHSG remote call control mode and not another mode such as IQ or auto- detect. If your headset is not in DHSG mode, the headset may lose audio shortly after going off-hook (approximately 5-10 seconds).
-
Page 3: Connecting The Cables
The following figure shows the connections between the EHS30 Adapter, the bottom of the Sangoma Phone, and the Jabra Wireless Headset base unit. See the detailed instructions below. Connect the included RJ45 Ethernet cable between the Aux Port of the Jabra Wireless Headset base unit and the RJ45 port (Port 4) of the EHS30 Adapter. - Page 4 RJ45 Port on EHS30 Connect the included RJ-12 cord between the EHS30 Adapter RJ12 Port (Port 1, next to the green LED light) and the EXT/EHS Port of the Sangoma Phone. RJ12 Port on EHS30 EXT/EHS Port on Sangoma S700 Phone...
- Page 5 Connect the included RJ-9 cord from the telephone port on the Jabra Wireless Headset base unit to the headset port of the Sangoma phone. Telephone Port on 92X/93X Headset Base (labeled in blue Headset Port on Sangoma S700 Phone Connect the headset base station's power cable between the DC port on the base station and a power outlet.
- Page 6 Putting 94XX Headset in to DHSG Mode You need to make sure your Jabra headset is set up for the DHSG remote call control mode and not another mode such as IQ or auto- detect. If your headset is not in DHSG mode, the headset may lose audio shortly after going off-hook (approximately 5-10 seconds).
- Page 7 RJ45 Port on EHS30 Connect the included RJ-12 cord between the EHS30 Adapter RJ12 Port (Port 1, next to the green LED light) and the EXT/EHS Port of the Sangoma Phone. RJ12 Port on EHS30 EXT/HHS Port on Sangoma Phone...
- Page 8 Connect the included RJ-9 cord from the telephone port on the Jabra Wireless Headset base unit to the headset port of the Sangoma phone. Telephone Port on 94XX Headset Base (labeled in blue here) Headset Port on Sangoma Phone Connect the headset base station's power cable between the DC in port and a power outlet.
