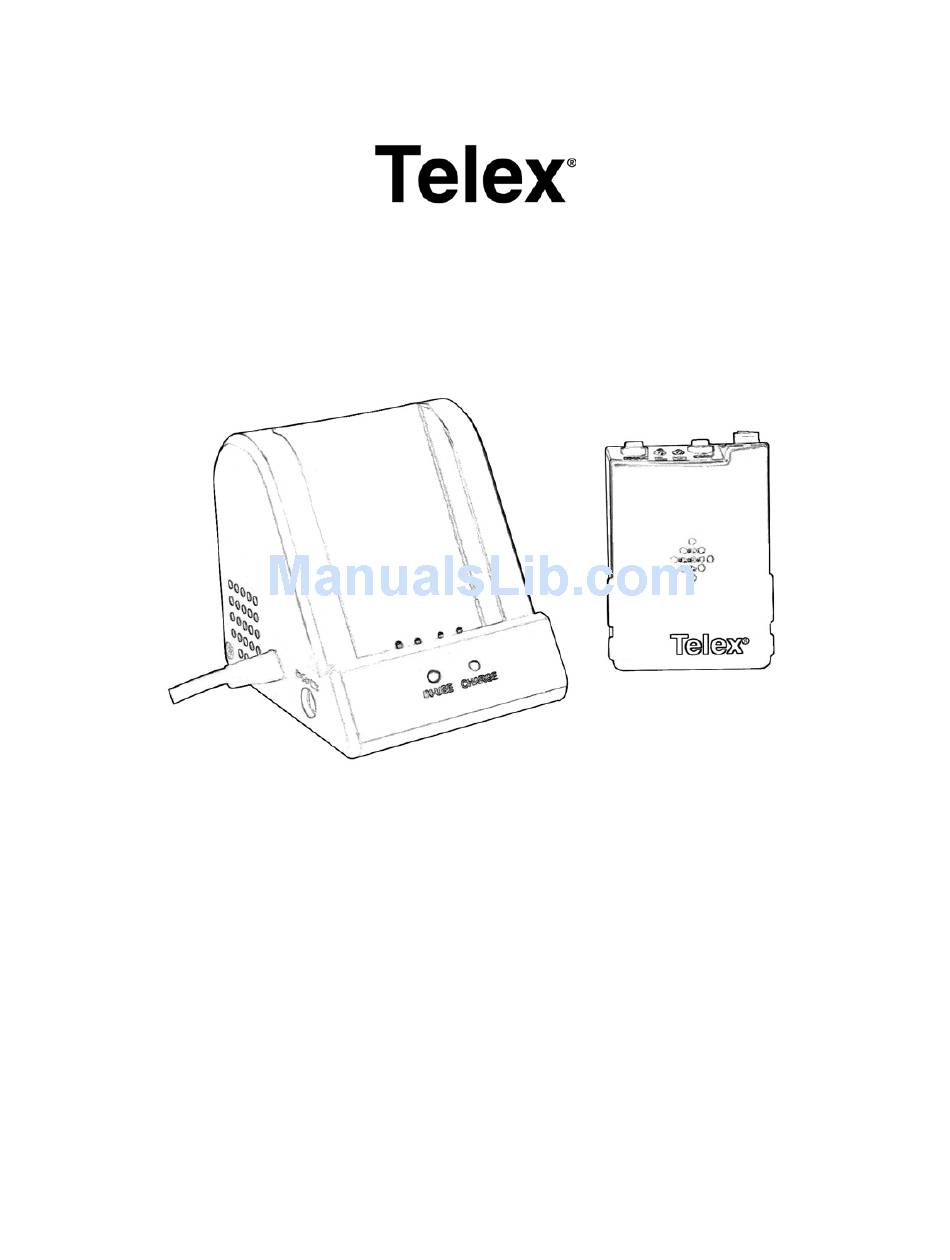

Page 1: User Guide
PW24 2.4GHZ WIRELESS SYSTEM FOR POLICE VIDEO RECORDING USER GUIDE Revision B Page 1 of 8 3/29/06... -
Page 2: Table Of Contents
TABLE OF CONTENTS Quick Set Up and Operation ... 3 Installation... 4 Guidelines For Best Performance... 5 Troubleshooting Guide... 6 Technical Specifications ... 7 Service and Warranty ... 8 Components and Accessories ... 8 Revision B Page 2 of 8 3/29/06... -
Page 3: Quick Set Up And Operation
QUICK SET UP AND OPERATION Synching Up The Transmitter and Base 1) Turn the transmitter power switch to on and place the transmitter in the recharge cradle of the base. The transmitter goes in the base with the beltclip facing out. 2) The recharge LED will light (Green if fully charged, Red if charging) and the In-Use Green LED on the base and transmitter will flash 3 times. -
Page 4: Installation
INSTALLATION 1. Wire the un-terminated signal wires to the control unit according to the signal chart. A 5 Amp fast blow fuse is recommend in the 12VDC power supply line to protect the equipment. Audio In Un-terminated wires 2. Plug the 3.5mm stereo plug into the audio input jack of the recording device. Description Position Inside Car Mic Audio... -
Page 5: Guidelines For Best Performance
The PW24 operates in the 2.4MHz ISM band and other devices in that band may interfere. The spread spectrum technique used in the PW24 is very robust and should operate even in the presence of other 2.4MHz devices such as walkie-talkies, LANs, cordless phones, etc. -
Page 6: 5) Trouble Shooting Guide
Check the mic connection and placement of the microphone Connect, repair or replace cable Push the In-Use button and the PW24 will automatically select a clearer channel. If the interference is too strong, this may not completely eliminate Move the obstacles, or... -
Page 7: Technical Specifications
PR24 RECEIVER BASE STATION Indicators INUSE LED: GREEN CHARGE LED : CHARGING -> RED FULL CHARGED -> GREEN Connections In Car Mic 2.5mm Mono Plug Un-terminated Cord +12V DC Power BLACK Microphone Trigger (Ground = Transmitter On) WHITE AUX (Panic) Trigger (+12V when EMG is pushed) YELLOW Left Channel (Inside Mic) ORANGE... -
Page 8: Service And Warranty
Enclose a note describing the problem along with any other pertinent information and how to contact you. Warranty (Limited) Telex products are guaranteed against malfunction due to defects in materials or workmanship for a specified period, as noted in the individual product-line statement(s) below, or in the individual product data sheet or owner's manual, beginning with the date of original purchase.
