Wasp Point of Sale Hardware Quick Start Setup Manual

Point-of-Sale Hardware Quickstart Setup Guide
Point-of-Sale Hardware Parts List
Hardware
1. Pole Display
2. Receipt Printer, Parallel
3. Cash Drawer
4. Cash Drawer Shoe
5. Keyboard
6. CCD LR Bar Code Scanner
7. Scanner Autosense Stand
Cables
1. Pole Display Power Cord
2. Pole Display DB9 Communications Cable
3. Receipt Printer Parallel Cable
4. Receipt Printer Power Supply w/ Power Cord
5. Cash Drawer Communications Cable
(Cable is hardwired to Cash Drawer)
6. Keyboard Communications Cable
(Cable is hardwired to Keyboard)
7. CCD LR Scanner Cable (PS2 Y Cable)
Documentation
1. Quick Start
2. Pole Display User's Manual
3. Receipt Printer User's Manual
4. CCD LR User's Manual
5. Keyboard Utility CD
Software
1. Only included in software bundles
Wasp Technologies
1400 10th Street
Plano, Texas 75074
214-547-4100
Fax: 214-547-4101
www.waspbarcode.com

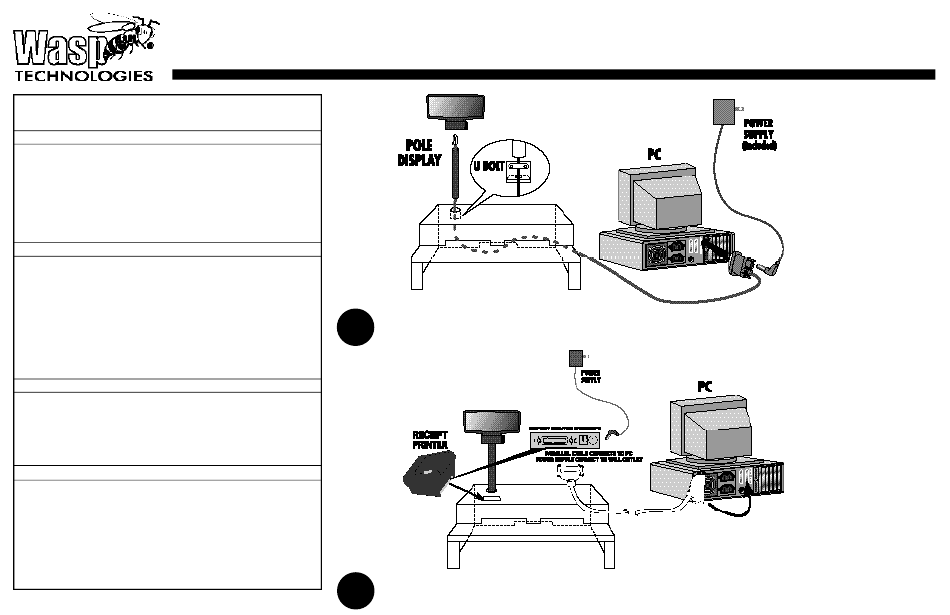

Thread Pole Display Cable through Cash Drawer Shoe, through Pole Display Pole, and connect to the Display Head. Connect Pole to
1
Display Head, and tighten U-Bolt within Shoe around Pole Display Pole to secure. Thread other end of Pole Display Cable through
back slot of Cash Drawer Shoe, and connect to your PC. Power Supply connects as shown, and plugs in standard wall outlet.
Thread both Parallel Cable and Power Supply Cable up through rectangular slot on top of Cash Drawer Shoe (in front of Pole Display)
2
and connect to back of Receipt Printer. Thread other ends of Parallel Cable and Power Supply out through back slot of Cash Drawer
Shoe. Connect Parallel Cable to Parallel Port on back of your PC, and plug Power Supply into standard wall outlet.
