TDK HHM Series HHM1518A3 Specifications

Multilayer chip baluns for dcs-pcs/tx & rx hhm series

Advertisement

Quick Links

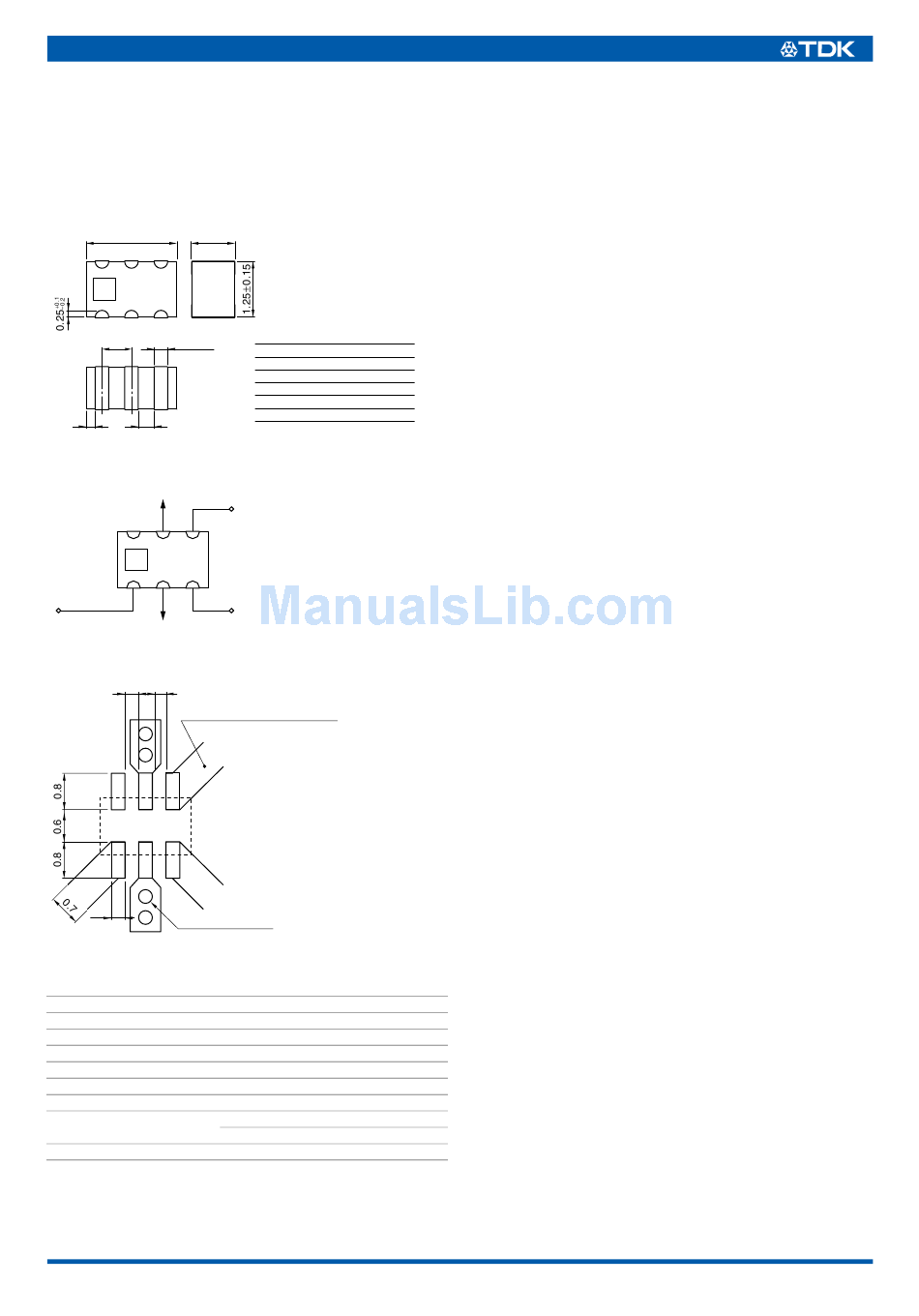

Multilayer Chip Baluns
For DCS-PCS/Tx & Rx
HHM Series HHM1518A3
SHAPES AND DIMENSIONS
2.0±0.15
0.95±0.1
6
5
4
1
2
3
0.65±0.2
0.3±0.2
0.2±0.2
0.35±0.2
Dimensions in mm
CIRCUIT DIAGRAM
6
5
4
Unbalanced
Balanced
input
output
50Ω
150Ω
1
2
3
RECOMMENDED PC BOARD PATTERNS
0.3
0.2
This width is 50Ω.
Micro-strip line for 0.4mm thick
glass-epoxy substrate.
6
5
4
1
2
3
ø0.3 Through-hole
0.3
ELECTRICAL CHARACTERISTICS
Unbalanced impedance
Balanced impedance
Frequency range
Unbalanced port return loss
Phase imbalance at balanced port
Amplitude imbalance at balanced port
Insertion loss
Operating
Temperature range
Storage
Packaging style and quantities
Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and
specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
• All specifications are subject to change without notice.
Terminal functions
1
Unbalanced port
2
GND or DC feed+ RF GND
3
Balanced port
4
Balanced port
5
GND
6
N.C.
Dimensions in mm
50Ω
150Ω
1710 to 1990MHz
10dB min.
180±10deg.
0±1.0dB
1.0dB max.
–40 to +85°C
–40 to +85°C
2000pieces/reel
Conformity to RoHS Directive
001-02 / 20080106 / e751_hhm1518a3.fm
(1/2)

Advertisement

loading

Summary of Contents for TDK HHM Series HHM1518A3

  • Page 1 Multilayer Chip Baluns For DCS-PCS/Tx & Rx HHM Series HHM1518A3 SHAPES AND DIMENSIONS 2.0±0.15 0.95±0.1 Terminal functions 0.65±0.2 0.3±0.2 Unbalanced port GND or DC feed+ RF GND Balanced port Balanced port N.C. 0.2±0.2 0.35±0.2 Dimensions in mm CIRCUIT DIAGRAM Unbalanced...
  • Page 2: Return Loss

    FREQUENCY CHARACTERISTICS Unbalance 50Ω/Balance 150Ω RETURN LOSS 1: 1710MHz –5 –10 2: 1850MHz –15 –20 3: 1990MHz –25 –30 –35 –40 –45 –50 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 Frequency ( MHz ) INSERTION LOSS –0.5 –1.0 –1.5...
