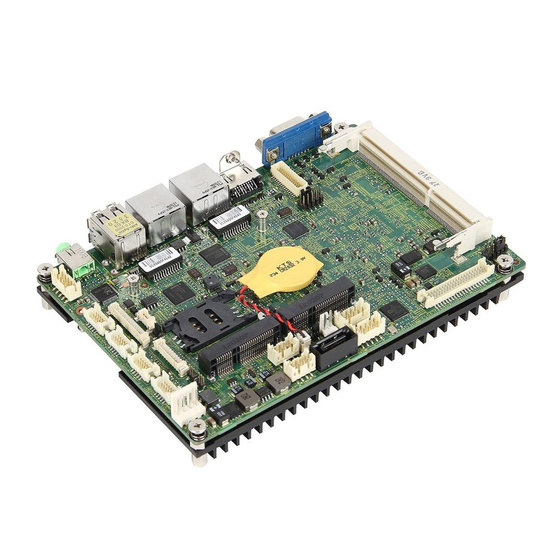

MS-9896
(v1.X) Industrial Computer Board
i

Advertisement

Table of Contents
loading

Related Manuals for MSI MS-9896

Summary of Contents for MSI MS-9896

  • Page 1 MS-9896 (v1.X) Industrial Computer Board...

  • Page 2: Trademarks

    If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alterna- tively, please try the following help resources for further guidance. Visit the MSI website for technical guide, BIOS updates, driver updates, and other information: http://www.msi.com/service/download Contact our technical staff at: http://support.msi.com...

  • Page 3: Safety Instructions

    MS-9896 Safety Instructions ￭ Always read the safety instructions carefully. ￭ Keep this User’s Manual for future reference. ￭ Keep this equipment away from humidity. ￭ Lay this equipment on a reliable flat surface before setting it up. ￭ The openings on the enclosure are for air convection hence protects the equipment from overheating.

  • Page 4: Chemical Substances Information

    Chemical Substances Information In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at: http://www.msi.com/html/popup/csr/evmtprtt_pcm.html Battery Information European Union: Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste.

  • Page 5: Ce Conformity

    MS-9896 CE Conformity Hereby, Micro-Star International CO., LTD declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive. FCC-B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 6: Weee Statement

    MSI will comply with the product take back requirements at the end of life of MSI-branded products that are sold into the EU. You can return these products to local collection points.
  • Page 7 MSI će poštovati zahtev o preuzimanju ovakvih proizvoda kojima je istekao vek tra- janja, koji imaju MSI oznaku i koji su prodati u EU. Ove proizvode možete vratiti na lokalnim mestima za prikupljanje.
  • Page 8 MSI si adeguerà a tale Direttiva ritirando tutti i prodotti marchiati MSI che sono stati venduti all’interno dell’Unione Europea alla fine del loro ciclo di vita. È possibile portare i prodotti nel più...

  • Page 9: Table Of Contents

    MS-9896 CONTENTS Copyright Notice .................... ii Trademarks ....................ii Revision History .................... ii Technical Support ..................ii Safety Instructions ..................iii Chemical Substances Information ............... iv Battery Information ..................iv CE Conformity ....................v FCC-B Radio Frequency Interference Statement ......... v WEEE Statement ..................
  • Page 11 Overview Thank you for choosing the MS-9896 v1.X, an excellent server board from MSI. Based on the innovative Intel NM10 chipset for optimal system efficien- ® cy, the MS-9896 accommodates the Intel Cedarview-D/ Cedarview-M ® processor and supports 1 DDR3 1066MHz Non-ECC SO-DIMM slot to...

  • Page 12: Mainboard Specifications

    Overview Mainboard Specifications Processor ■ Intel Cedarview-D D2550/ Cedarview-M N2800/ Cedarview-M N2600 Chipset ■ North Bridge: integrated with CPU ■ South Bridge: Intel NM10 chipset Memory For D2550 and N2800 ■ 1 DDR3 800 / 1066MHz Non-ECC SO-DIMM slot ■ Supports the maximum of 4GB For N2600 ■...
  • Page 13 MS-9896 Rear Panel I/O ■ 1 D-sub VGA port ■ 1 HDMI port ■ 2 Gigabit LAN jacks ■ 2 USB 2.0 ports ■ 1 Line-Out audio jack Onboard Pinheaders/ Connectors ■ 2 LVDS voltage selection pinheaders ■ 2 LVDS connectors ■...

  • Page 14: Mainboard Layout

    Overview Mainboard Layout Bottom...

  • Page 15: Hardware Setup 2-1

    Hardware Setup This chapter provides you with the information about hardware setup procedures. While doing the installation, be careful in holding the com- ponents and follow the installation procedures. For some components, if you install in the wrong orientation, the components will not work prop- erly.

  • Page 16: Quick Components Guide

    Hardware Setup Quick Components Guide Rear Panel I/O, p2-5 JAUD1, p2-9 JLVDS1, p2-6 FAN1, p2-9 JDP1, p2-9 JVDD1, p2-11 SO-DIMM Slot, p2-3 JCOM1 /2 /3 /4, JAT, p2-12 p2-8 SIM Card Holder, p2-13 JPWR1, p2-4 JVDD2, p2-11 JFP1, p2-7 JLVDS2, p2-6 JCOMP1/2, p2-12 J1, p2-7 Mini PCI-E, p2-13...

  • Page 17: Installing Memory Modules

    MS-9896 Installing Memory Modules 1. Locate the SO-DIMM slot. Align the notch on the DIMM with the key on the slot and insert the DIMM into the slot. 2. Push the DIMM gently downwards until the slot levers click and lock the DIMM in place.

  • Page 18: Power Supply

    Hardware Setup Power Supply DC Power Connector: JPWR1 This connector allows you to connect a 12V DC power adapter. HDD Power Connector: JHDDPWR1 This connector provides power to SATA hard drives.

  • Page 19: Rear Panel I/O

    MS-9896 Rear Panel I/O VGA Port HDMI Port LAN Jack USB Port Line-Out Jack ▶VGA Port The DB15-pin female connector is provided for monitor. ▶HDMI Port The High-Definition Multimedia Interface (HDMI) is an all-digital audio-video interface that is capable of transmitting uncompressed streams. HDMI supports all types of TV formats, including standard, enhanced, or high-definition video, plus multi-channel digital audio on a single cable.

  • Page 20: Connector

    Hardware Setup Connector LVDS Connector: JLVDS1, JLVDS2 The LVDS (Low Voltage Differential Signal) connector provides a digital interface typically used with flat panels. After connecting an LVDS interface flat panel to this connector, be sure to check the panel datasheet and set the JVDD1 jumper to proper power voltage.
  • Page 21 MS-9896 GPIO Connector: J1 This connector is provided for the General-Purpose Input/Output (GPIO) periph- eral module. Front Panel Pinheader: JFP1 This front panel connector is provided for electrical connection to the front panel switches & LEDs and is compliant with Intel Front Panel I/O Connectivity Design...
  • Page 22 Hardware Setup Front USB Pinheader: JUSB1, JUSB2 This connector, compliant with Intel I/O Connectivity Design Guide, is ideal for connecting high-speed USB interface peripherals such as USB HDD, digital cam- eras, MP3 players, printers, modems and the like. Important Note that the pins of +5V and GND must be connected correctly to avoid possible damage.
  • Page 23 MS-9896 Port 80 Pinheader: JDP1 This pinheader is intended for Transport Control Protocol (TCP) port 80. Fan Power Connector: FAN1 The fan power connector supports cooling fan with +12V. When connecting the wire to the connectors, always note that the red wire is the positive and should be connected to the +12V;...
  • Page 24 Hardware Setup Serial ATA Connector: SATA1 This connector is a high-speed Serial ATA interface port. Each connector can connect to one Serial ATA device. Important Please do not fold the SATA cable into a 90-degree angle. Otherwise, data loss may occur during transmission. 2-10...

  • Page 25: Jumper

    MS-9896 Jumper Backlight Pinheader & LVDS Power Jumper: JVDD1, JVDD2 The backlight connector is provided for LCD backlight options while the LVDS power jumper allows users to select the operation voltage of the LVDS flat pan- JVDD1 LVDS Power Jumper...
  • Page 26 Hardware Setup Serial Port Power Jumper: JCOMP1, JCOMP2 These jumpers specify the operation voltage of the onboard serial ports. JCOMP1/2 +12V (for COM1/2) AT/ATX Select Jumper: JAT1 This jumper allows users to select between AT and ATX power. JAT1 (Default) 2-12...

  • Page 27: Slot

    MS-9896 Slot Mini PCI-E (Peripheral Component Interconnect Express) Slot The Mini PCI-E slot is provided for wireless LAN card, TV tuner card, and Robson NAND Flash card mSATA Slot The mSATA slot is provided for mSATA SSD card Important When adding or removing expansion cards, make sure that you unplug the power supply first.

  • Page 29: Bios Setup 3-1

    BIOS Setup This chapter provides information on the BIOS Setup program and allows users to configure the system for optimal use. Users may need to run the Setup program when: ■ An error message appears on the screen at system startup and re- quests users to run SETUP.

  • Page 30: Entering Setup

    BIOS Setup Entering Setup Power on the computer and the system will start POST (Power On Self Test) process. When the message below appears on the screen, press <DEL> or <F2> key to enter Setup. Press <DEL> or <F2> to enter SETUP If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button.

  • Page 31: Control Keys

    MS-9896 Control Keys ← → Select Screen ↑ ↓ Select Item Enter Select Change Option General Help Previous Values Optimized Defaults Save & Exit Exit Getting Help After entering the Setup menu, the first menu you will see is the Main Menu.

  • Page 32: The Menu Bar

    BIOS Setup The Menu Bar ▶ Main Use this menu for basic system configurations, such as time, date, etc. ▶ Advanced Use this menu to set up the items of special enhanced features. ▶ Boot Use this menu to specify the priority of boot devices. ▶...

  • Page 33: Main

    MS-9896 Main ▶ System Date This setting allows you to set the system date. The date format is <Day>, <Month> <Date> <Year>. ▶ System Time This setting allows you to set the system time. The time format is <Hour> <Min- ute>...

  • Page 34: Advanced

    BIOS Setup Advanced ▶ Full Screen Logo Display This BIOS feature determines if the BIOS should hide the normal POST mes- sages with the motherboard or system manufacturer’s full-screen logo. When it is enabled, the BIOS will display the full-screen logo during the boot-up sequence, hiding normal POST messages.
  • Page 35 MS-9896 ▶ CPU Configuration ▶ Hyper-Threading The processor uses Hyper-Threading technology to increase transaction rates and reduces end-user response times. The technology treats the two cores inside the processor as two logical processors that can execute instruc- tions simultaneously. In this way, the system performance is highly improved.
  • Page 36 BIOS Setup ▶ Super IO Configuration ▶ Serial Port 1/ 2/ 3/ 4 This setting enables/disables the specified serial port. ▶ Change Settings This setting is used to change the address & IRQ settings of the specified serial port. ▶ Mode Select Select an operation mode for the serial port 1.
  • Page 37 MS-9896 ▶ PCI/PCIE Device Configuration ▶ PCI Latency Timer This item controls how long each PCI device can hold the bus before another takes over. When set to higher values, every PCI device can conduct trans- actions for a longer time and thus improve the effective PCI bandwidth. For better PCI performance, you should set the item to higher values.
  • Page 38 BIOS Setup This setting specifies the transfer rate (bits per second, data bits, parity, stop bits) of Console Redirection. ▶ Flow Control Flow control is the process of managing the rate of data transmission be- tween two nodes. It’s the process of adjusting the flow of data from one device to another to ensure that the receiving device can handle all of the incoming data.
  • Page 39 MS-9896 ▶ GPIO Configuration ▶ GPO1~4 This setting controls the operation mode of the specified GPIO. 3-11...

  • Page 40: Boot

    BIOS Setup Boot ▶ Boot Option #1 / #2 / #3 This setting allows users to set the sequence of boot devices where BIOS at- tempts to load the disk operating system. ▶ Hard Drive BBS Priorities This setting allows users to set the priority of the specified devices. First press <Enter>...

  • Page 41: Security

    MS-9896 Security ▶ Administrator Password Administrator Password controls access to the BIOS Setup utility. ▶ User Password User Password controls access to the system at boot and to the BIOS Setup utility. 3-13...

  • Page 42: Chipset

    BIOS Setup Chipset ▶ IGFX - Boot Type Use the field to select the type of device you want to use as the boot display of the system. ▶ LCD Panel Type This setting allows you to set the resolution of the LCD panel. ▶...

  • Page 43: Power

    MS-9896 Power ▶ ACPI Sleep State This item specifies the power saving modes for ACPI function. If your operating system supports ACPI, you can choose to enter the Standby mode in S1 (POS) or S3 (STR) fashion through the setting of this field.
  • Page 44 BIOS Setup ==Advanced Resume Events Control== ▶ USB from S3/S4 The item allows the activity of the USB device to wake up the system from S3/S4 sleep state. ▶ PCIE/PCI PME This field specifies whether the system will be awakened from power saving modes when activity or input signal of onboard PCIE/PCI PME is detected.

  • Page 45: Save & Exit

    MS-9896 Save & Exit ▶ Save Changes and Exit Save changes to CMOS and exit the Setup Utility. ▶ Discard Changes and Exit Abandon all changes and exit the Setup Utility. ▶ Restore Defaults Restore the factory defaults. ▶ Save as User Defaults Save all changes as the user defaults.
