PSB CS500W Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CS500W
SUBWOOFER AMPLIFIER
INST ALLA TION MANUAL

Advertisement

Table of Contents
loading

Related Manuals for PSB CS500W

Summary of Contents for PSB CS500W

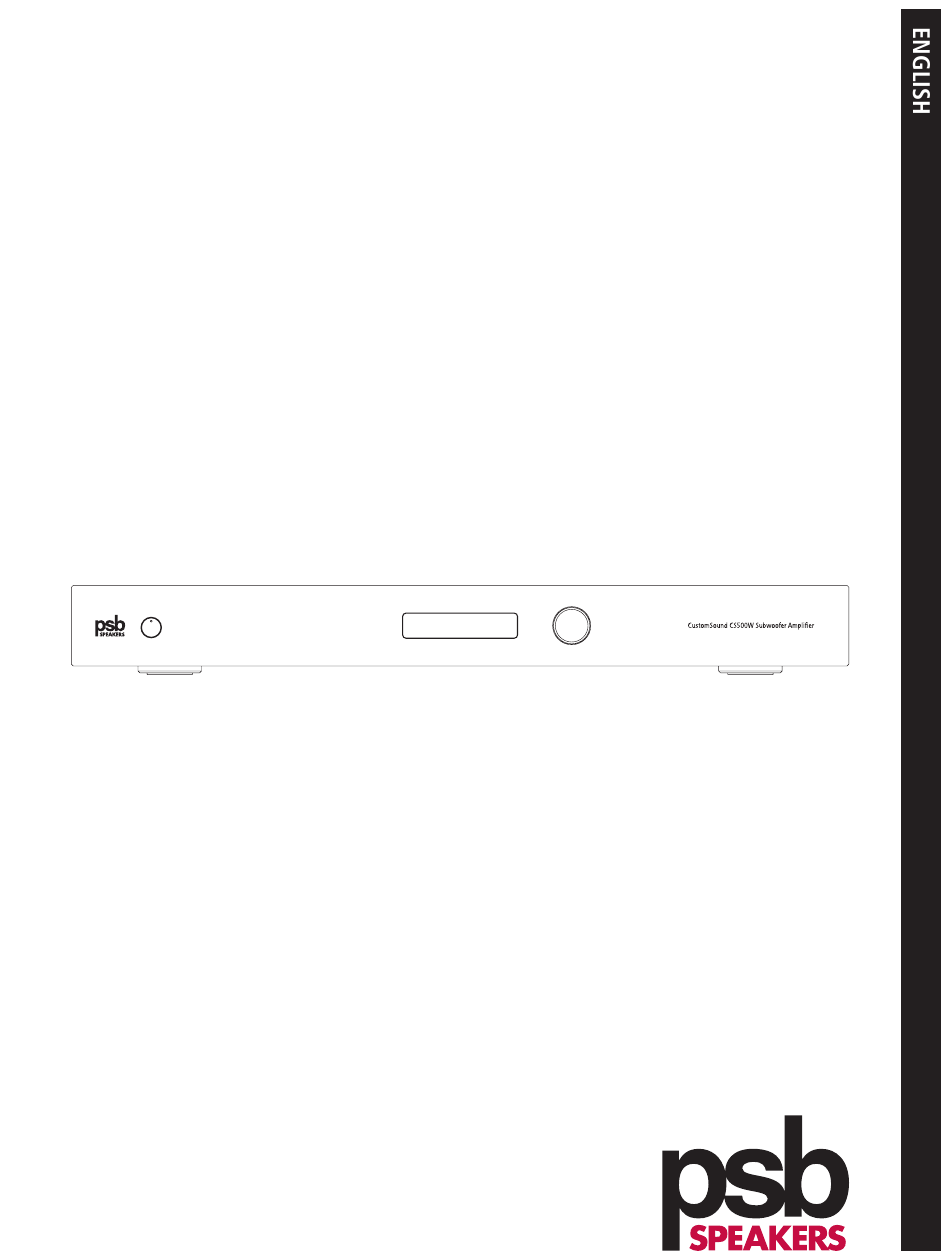

  • Page 1 CS500W SUBWOOFER AMPLIFIER INST ALLA TION MANUAL...

  • Page 2: Safety Information

    SAFETY INFORMATION Please read this booklet to ensure that you are getting the most out of your PSB product and music. CAUTION Risk of Electrical Shock! DO NOT OPEN! The lightning flash with arrowhead symbol, within the equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be...
  • Page 3 FEATURES M N O POWER H. MINI USB PORT Red: Off/Standby Reserved for service use. Blue: On/Operating OPERATION MODE SWITCH B. STATUS DISPLAY MENU UPDATE: For service use only. Displays current function/setting. OPERATE: Normal function. C. SELECTION KNOB/ROTARY ENCODER SPEAKER OUTPUTS Navigates and controls menu display functions.

  • Page 4: Menu Display

    MENU DISPLAY A. VOLUME DISPLAY D. NIGHT MODE Displays if night mode is ON. No display if night mode B. VOLUME LEVEL Displays the volume level. is OFF. NOTE: Lock mode overrides power mode. E. SOUND MODE C. POWER MODE Displays the current sound mode setting.
  • Page 5 D. SOUND MODE: BYPASS/MUSIC/MOVIE Selects media preference. BYPASS: Reference MUSIC: Boosts +1.5dB @ 50Hz MOVIE: Boosts +3dB @ 30Hz DEFAULT: BYPASS E. NIGHT MODE: ON/OFF ON: Limits high and low sound threshold for night time viewing. Reduces maximum power to 250W and relative sub level by 3dB. OFF: No limiting DEFAULT: OFF POWER CONTROL: FRONT PANEL/12V TRIGGER/AUDIO SENSE...

  • Page 6: Installation

    SETUP Amplifier Positioning Placing the subwoofer amplifier can have a large impact on performance and longevity. Please take the following guidelines into consideration: • Ensure that the unit is in a well-ventilated area that provides adequate cooling. Installation • Attach rack-mount brackets to the amplifier if mounting into rack or attache bottom feet on the amplifier chassis if placing on a shelf.
  • Page 7 CAUTION: When two subwoofers are connected in parallel, the nominal impedance of each subwoofer should not be less than 8Ω. Single Sub Connection AV Receiver Left & Right Preamp Out or LFE Sub Out PSB CS500W 4Ω Minimum Dual Sub Connection PSB CS500W PSB CS500W 4Ω Minimum 4Ω Minimum...
  • Page 8 12V DC Trigger Connect the 12V trigger output of another device to the 12V trigger input of the amplifier using a high quality mono cable. AV Receiver +12V Trigger Switched Outlet If the receiver does not have a 12V trigger output, using a 12V power GND (Sleeve) supply plugged into a switched outlet on the receiver provides the same functionality.
  • Page 9 IR Port IR Repeater Connections Control Systems Connections 3.5mm Mono Mini RS 232 IR Outputs IR Inputs Control System Power Cord IR Receiver...

  • Page 10: Specifications

    If you require service, please visit your local authorized PSB service centre, or www.psbspeakers.com. If you have moved since your purchase, the nearest PSB dealer will be able to assist you. If the problem is not resolved, please contact us directly and provide the model name, serial number, date of purchase , dealer name, and a fully detailed description of the issue.
  • Page 11 PRONTO IR COMMANDS IR ID Channel 1 Command Value Pronto Pastable Code Power toggle 0x21 0000 006d 0022 0002 0156 00ab 0015 0015 0015 0040 0015 0040 0015 0015 0015 0015 0015 0015 0015 0015 0015 0040 0015 0040 0015 0040 0015 0040 0015 0040 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0040 0015 0040 0015 0040 0015 0015 0015 0040 0015 0040 0015 0040 0015 0040 0015 0015 0015 0015 0015 0015 0015 0040 0015 0015 0015 0015 0015 0015 0015 05d8 0156 0055 0015 0e48 Power On...
  • Page 12 PRONTO IR COMMANDS IR ID Channel 2 Command Value Pronto Pastable Code Power toggle 0x21 0000 006d 0022 0002 0156 00ab 0015 0015 0015 0040 0015 0040 0015 0015 0015 0015 0015 0015 0015 0015 0015 0040 0015 0040 0015 0040 0015 0040 0015 0040 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0040 0015 0040 0015 0040 0015 0015 0015 0040 0015 0040 0015 0040 0015 0040 0015 0015 0015 0015 0015 0015 0015 0015 0015 0040 0015 0040 0015 0040 0015 05d8 0156 0055 0015 0e48 Power On...
  • Page 13 PRONTO IR COMMANDS IR ID Channel 3 Command Value Pronto Pastable Code Power toggle 0x21 0000 006d 0022 0002 0156 00ab 0015 0015 0015 0040 0015 0040 0015 0015 0015 0015 0015 0015 0015 0015 0015 0040 0015 0040 0015 0040 0015 0040 0015 0040 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0040 0015 0040 0015 0040 0015 0015 0015 0040 0015 0040 0015 0040 0015 0040 0015 0015 0015 0015 0015 0040 0015 0040 0015 0040 0015 0040 0015 0040 0015 05d8 0156 0055 0015 0e48 Power On...
  • Page 14 PRONTO IR COMMANDS IR ID Channel 4 Command Value Pronto Pastable Code Power toggle 0x21 0000 006d 0022 0002 0156 00ab 0015 0015 0015 0040 0015 0040 0015 0015 0015 0015 0015 0015 0015 0015 0015 0040 0015 0040 0015 0040 0015 0040 0015 0040 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0040 0015 0040 0015 0040 0015 0015 0015 0040 0015 0040 0015 0040 0015 0040 0015 0015 0015 0040 0015 0015 0015 0040 0015 0040 0015 0040 0015 0040 0015 05d8 0156 0055 0015 0e48 Power On...
  • Page 15 PRONTO IR COMMANDS IR ID Channel 5 Command Value Pronto Pastable Code Power toggle 0x21 0000 006d 0022 0002 0156 00ab 0015 0015 0015 0040 0015 0040 0015 0015 0015 0015 0015 0015 0015 0015 0015 0040 0015 0040 0015 0040 0015 0040 0015 0040 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0040 0015 0040 0015 0040 0015 0015 0015 0040 0015 0040 0015 0040 0015 0040 0015 0040 0015 0015 0015 0015 0015 0040 0015 0040 0015 0040 0015 0040 0015 05d8 0156 0055 0015 0e48 Power On...
