Tannoy Reveal 66D Owner's Manual

Tannoy Reveal 66D Owner's Manual

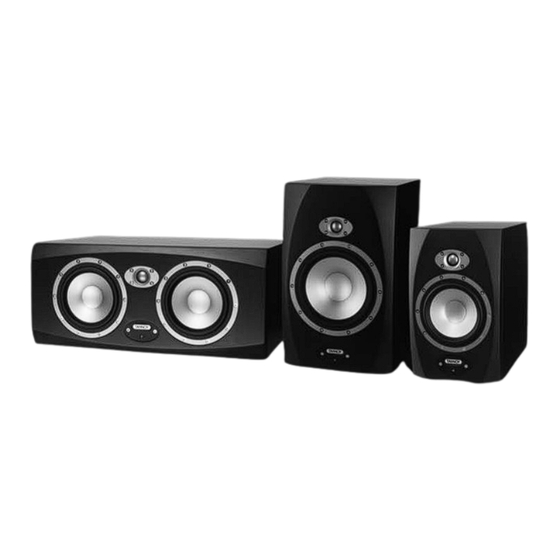

Tannoy reveal 6d 66d & 8d active studio monitors speaker owners manual
Hide thumbs Also See for Reveal 66D:

Advertisement

Table of Contents

Tannoy United Kingdom
T: +44 (0) 1236 420199
F: +44 (0) 1236 428230
Tannoy North America
T: (519) 745 1158
F: (519) 745 2364
Tannoy Deutschland
T: (04102) 888 393
F: (04102) 888 959
Tannoy adopts a policy of continuous improvement and product specification is subject to change.
E: enquiries@tannoy.com
E: inquiries@tannoyna.com
E: info@tannoy.com
6D 66D & 8D ACTIVE STUDIO MONITORS
O W N E R S
M A N U A L

Advertisement

Table of Contents
loading

Related Manuals for Tannoy Reveal 66D

Summary of Contents for Tannoy Reveal 66D

  • Page 1 T: (04102) 888 393 F: (04102) 888 959 E: info@tannoy.com Tannoy adopts a policy of continuous improvement and product specification is subject to change. 6D 66D & 8D ACTIVE STUDIO MONITORS O W N E R S M A N U A L...

  • Page 2: Warranty

    4.0: EQUALISATION POSSIBILITIES 5.0: GUIDE TO SETTING THE EQUALISATION 6.0: PLACEMENT OF THE SPEAKERS 7.0: PERFORMANCE DATA Reveal 6D Reveal 8D Reveal 66D 8.0: TECHNICAL SPECIFICATIONS 9.0: DIMENSIONS 10.0: SERVICING 11.0: WARRANTY 12.0: DECLARATION OF CONFORMITY 1.0: IMPORTANT SAFETY INSTRUCTIONS Introduction 1.

  • Page 3: Installation

    2.1: UNPACKING AND VISUAL CHECKS The Reveal 6D’s are packed in pairs and the Reveal 8D and 66D’s are packed singly. To remove the speakers from the carton without damage open the end flaps fully and bend them right back (remember they are packed in pairs). Turn the package upside-down on the floor and lift the carton vertically up to leave the speakers resting on their packing tray.
  • Page 4 Having chosen an appropriate location for your monitors and arranged them accordingly, connect the power cord to the mains socket and turn the power on. The LED on the front panel will now glow red. Push the Tannoy logo on the front panel to operate the switch to bring the amplifier out of standby mode and into operational mode.
  • Page 5 Low Mid Contour Frequency: A shelving filter can be set to the flat anechoic response or set to shelve at frequencies of 800Hz, 400Hz, or 200Hz in combination with the low mid contour amplitude (below) to correct half space (pi/2), quarter space (pi/4) and very difficult close field boundary conditions (pi/8 space).
  • Page 6 Hi-Mid Shelf Boost/Cut: a shelving filter between 1kHz and 3KHz can be set to +2, +1dB, flat, -1dB, -2dB, to take account of room characteristics and personal preference. Editing news broadcast material is often easier with an increased output in this band.
  • Page 7 Quarter Space (Pi): An example of quarter space would be with speakers mounted on stands in a corner, or on the meter bridge against a wall or mounted on small stands or shelves against a wall. Also typical PC/Mac editing in a confined space on a desk near a wall.

  • Page 8: Placement Of The Speakers

    MID AND HIGH EQ SETTINGS RT60 Decay Time: An estimation of the RT60 decay time above 1kHz within the monitoring environment will help to set the mid and high frequency equalisation. Hard surfaces in general and particularly if close to the speakers will increase the amount of reverberent energy to direct energy above 1kHz (RT60 above 500mS) and may justify setting the mid or high EQ (or both) to -1dB.

  • Page 9: Speaker Mounting

    EQ, or leaning back and listening to the mix. Don’t go crazy trying to get this exact to three decimal places, within a few inches will suffice. Your Tannoy monitors have a wide sweet spot both horizontally and vertically to reduce the variations in sound quality as you move around doing your recording engineer stuff.

  • Page 10: Performance Data

    7.0: PERFORMANCE DATA R6D ON AXIS ANECHOIC FREQUENCY RESPONSE @ 1m R66D ON AXIS ANECHOIC FREQUENCY RESPONSE @ 1m R8D ON AXIS ANECHOIC FREQUENCY RESPONSE @ 1m...

  • Page 11: Technical Specifications

    (1) +/- 3 dB, measured at 1m in an anechoic chamber. (2) Peak SPL at mix position for 1 pair driven. Tannoy operates a policy of continuous research and development. The introduction of new materials or manufacturing methods will always equal or exceed the published specifications which Tannoy reserve the right to alter without prior notice.
  • Page 12 12.0: DECLARATION OF CONFORMITY The following apparatus is/are manufactured in China by Tannoy Ltd of Rosehall Industrial Estate, Coatbridge, Scotland, ML5 4TF. The following equipment is marked with the CE label and conform(s) to the protection requirements of the European Electromagnetic Compatibility Standards and Directives.

This manual is also suitable for:

Reveal 6dReveal 8d
