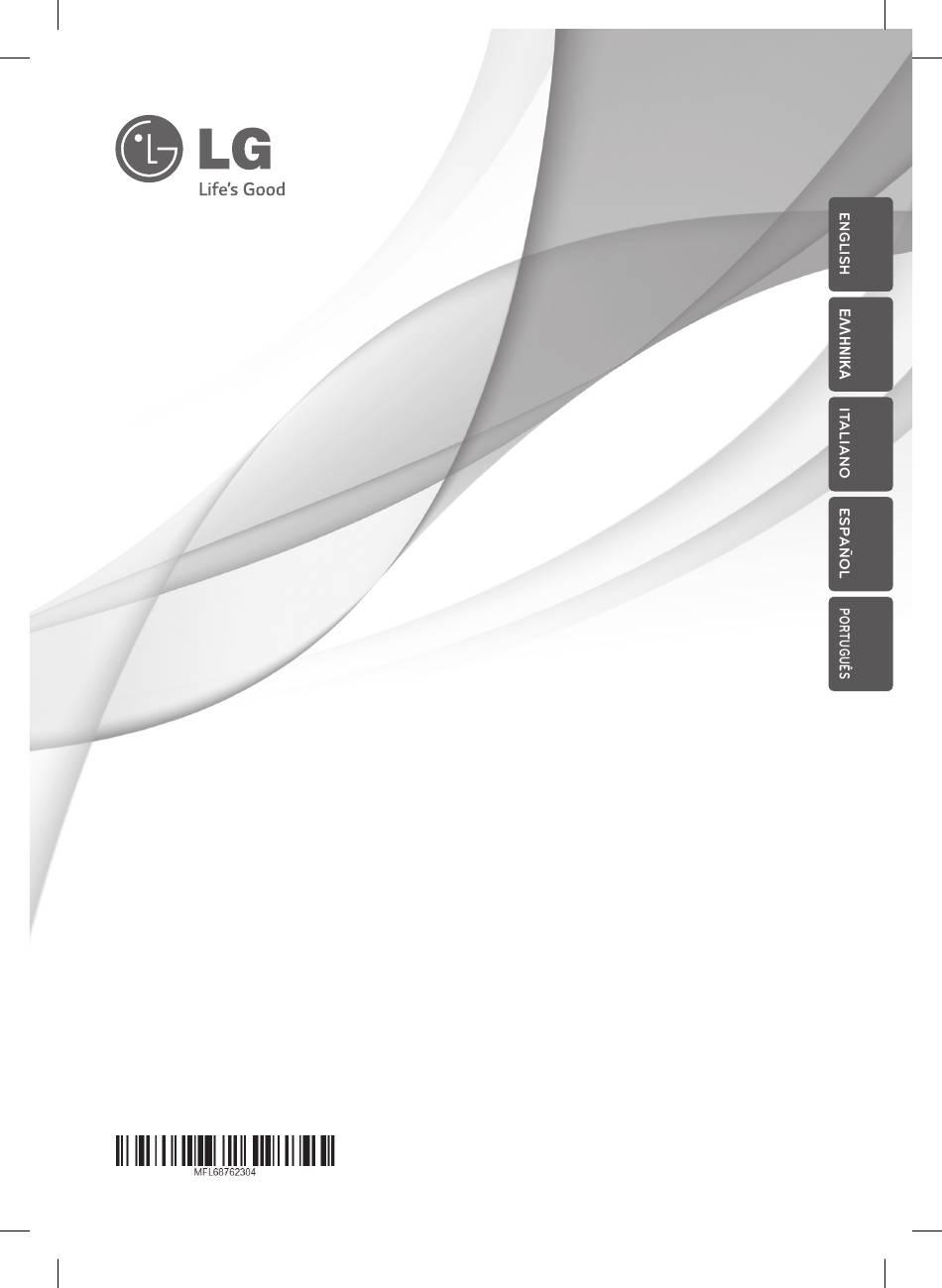

- Page 1 OWNER’S MANUAL DVD Micro Hi-Fi System Please read this manual carefully before operating your set and retain it for future reference. DM1530 (DM1530, DMS1530V) DM1530-DU.AESPLLK_ENG_2304.indd 1 2015-04-02 10:37:12...
- Page 2 Getting Started Getting Started Safety Information CAUTION RISK OF ELECTRIC SHOCK CAUTION: This product employs a Laser System. DO NOT OPEN To ensure proper use of this product, please read CAUTION: TO REDUCE THE RISK OF ELECTRIC this owner’s manual carefully and retain it for future SHOCK DO NOT REMOVE COVER (OR BACK) NO reference.
- Page 3 Getting Started Disposal of waste batteries/accumulators This device is equipped with a portable battery or accumulator. Safety way to remove the battery or the battery from the equipment: Remove the old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate...
- Page 4 This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of LG Electronics hereby declares that this/these this copyright protection technology must be product(s) is/are in compliance with the essential authorized by Rovi, and is intended for home and...
-
Page 5: Table Of Contents
Table of Contents Table of Contents Getting Started Operating Safety Information Basic Operations Unique Features – Disc/USB Operations Accessories Other Operations Introduction – Displaying Disc Information on-screen – To display the DVD Menu – Playable Discs – To display the DVD title –... -
Page 6: Getting Started
Getting Started Unique Features Introduction Portable In Playable Discs Listens to music from your portable device. (MP3, This unit plays DVD±R/RW and CD-R/RW that Notebook, etc) contains audio titles, DivX, MP3, WMA and/or JPEG files. Some DVD±RW/DVD±R or CD-RW/ CD-R cannot be played on this unit due to the Accessories recording quality or physical condition of the disc, or the characteristics of the recording device and... -
Page 7: Symbol Used In This Manual
Getting Started Playable file Symbol Used in this Manual Requirement DVD and finalized DVD±R/RW DivX files MP3/WMA files Audio CDs Compatible USB Devices JPG files y MP3 Player : Flash type MP3 player. y USB Flash Drive : Devices that support USB2.0 or Regional Codes USB1.1. -
Page 8: Mp3/Wma Music File Requirement
If there is a code impossible to express in the discs. When setting the option to Live File DivX file, it may be displayed as a “ _ “ mark on System, you cannot use it on LG players. the display. (Mastered/ Live File System : Disc format system... -
Page 9: Remote Control
Getting Started Remote • • • • • • a • • • • • • • • • • • b • • • • • 1 (Power) : Switches the unit DISPLAY : Displays playback Control ON or OFF. time information during playback. - Page 10 You can control the sound level, input source, and power REPEAT : Selects a play mode. switching of LG TVs as well. Hold 9 SOUND EFFECT : Selects a 1 (TV power) and press PR/CH sound effect mode.
-
Page 11: Front Panel
Getting Started Front Panel a Display window g d/M (Play/Pause) Starts playback and pauses. Shows the current state of the unit. Z (Stop) b Remote sensor Stops playback. c 1/! (Power) PRESET (+/-) Switches the unit ON or OFF. Chooses a preset number for a radio station. d FUNC. -
Page 12: Rear Panel (Case 1)
Getting Started Rear Panel (Case 1) a FM ANTENNA b VIDEO OUT Connects to a TV with video inputs. c POWER IN d Speaker connector (R/L) Rear Panel (Case 2) a FM ANTENNA b VIDEO OUT Connects to a TV with video inputs. c POWER IN d Speaker connector (R/L) DM1530-DU.AESPLLK_ENG_2304.indd 12... -
Page 13: Connecting
Connecting Connecting to Case 2 speakers To connect the cable to the unit, press each plastic finger pad to open the connection terminals on the unit. Insert the wire and release the finger pad. Connect the black stripe of each wire to the Case 1 terminals marked - (minus) and the other end to the terminals marked + (plus). - Page 14 Connecting Connections to Your Antenna Connection Be sure to fully extend the FM wire antenna. Connect the VIDEO OUT jack on the unit to the video in jack on the TV using a video cable. FM antenna You can hear the sound through the system’s speakers.
-
Page 15: Optional Equipment Connection
Connecting Optional Equipment PORT. IN Connection Connection Connect an output of portable device (MP3 or PMP etc) to the PORT. IN connector. USB Connection Connect the USB port of USB Memory (or MP3 player, etc.) to the USB port on the front of the unit. Portable cable portable device Listening to music from your... -
Page 16: System Setting
System Setting Adjust the Setup [GENERAL] Menu settings TV DISPLAY Select a TV aspect ratio option according to your TV By using the Setup menu, you can make various type. adjustments to items such as picture and sound. You can also set a language for the subtitles and [4 : 3 PANSCAN] the Setup menu, among other things. -
Page 17: [Audio] Menu
System Setting [AUDIO] Menu SCREEN SAVER The screen saver appears when you leave the ANALOG AUDIO unit in Stop mode for about 5 minutes. Note [DOWNMIX] The screen saver will not appear when you leave the player in pause status. DOWNMIX means that multi-channel surround sound are mixed to produce 2 channel sound suitable for this unit. -
Page 18: [Video] Menu
System Setting [VIDEO] Menu DIVX(R) VOD ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi COLOR SETTING Corporation. This is an official DivX Certified® You can control the picture on your own. device that has passed rigorous testing to verify that it plays DivX video. - Page 19 System Setting DIVX(R) CP CODE If the subtitle is displayed in broken letter, you can change the subtitle code page to view the subtitle file properly. DM1530-DU.AESPLLK_ENG_2304.indd 19 2015-04-02 10:37:17...
-
Page 20: [Preference] Menu
System Setting [PREFERENCE] Menu PASSWORD You can create or change the password. TV TYPE PASSWORD MODE You must select the appropriate system mode Select [ON] to lock the setting. for your TV system. Select a TV type among [PAL], [AUTO], or [NTSC]. PASSWORD [AUDIO]/[SUBTITLE]/[DISC MENU] Select [CHANGE] to change password. -
Page 21: Operating
Operating Operating Basic Operations Press REPEAT repeatedly, and the current title, chapter Playing or track will be played back repeatedly or repeatedly or randomly. Disc/USB Operations randomly - Random play mode : only music files. 1. Insert the disc by pressing OPEN or connect the USB device to the USB port. -
Page 22: Other Operations
Operating Other Operations To display the DVD Menu When you play a DVD which contains several Displaying Disc Information menu, you can select the menu you want using the on-screen MENU. 1. Press MENU. The disc’s menu appears. You can display various information about the disc 2. -
Page 23: Creating Your Own Program
Operating Creating your own program Viewing a PHOTO file This unit can play discs with photo files. You can play the contents of a disc in the order you want by arranging the order of the songs on 1. Select the DVD/CD or USB function by pressing the disc. -
Page 24: Listening To Music During Slide Show
Operating Turning off the sound Going to thumbnail mode temporarily While viewing a photo, press Z on the remote control or Z on the unit to move thumbnail mode. Press MUTE on the remote control to mute your (JPEG menu) Select a picture or menu by using unit. -
Page 25: Radio Operations
Operating Radio Operations Presetting the Radio Stations You can preset 50 stations for FM. Before tuning, make sure to turn down the volume. Listening to the radio 1. Select tuner (FM) function by using FUNCTION on the remote control or FUNC. on the unit 1. -
Page 26: Seeing Information About A Radio Station
Operating Sound adjustment Seeing information about a Radio station The FM tuner is supplied with the RDS (Radio Data Setting the surround mode System) facility. This shows information about the radio station being listened to. Press RDS This system has a number of pre-set surround repeatedly to cycle through the various data types. -
Page 27: Troubleshooting
Troubleshooting Troubleshooting Troubleshooting Problem Correction y Plug the power cord into the wall outlet securely. No Power y Select the appropriate video input mode on the TV so the picture from the unit appears on the TV screen. No picture y Connect the video cables securely to both the TV and unit. -
Page 28: Appendix
Appendix Appendix Language Codes Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu. Language Code Language Code Language Code Language Code Afar 6565 French 7082 Lithuanian 7684 Sindhi 8368 Singhalese 8373 Afrikaans 6570... -
Page 29: Trademarks And Licenses
Appendix Trademarks and Licenses Dolby, Pro Logic, and the double-D symbol are registered trademarks of Dolby Laboratories. “DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation. DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. -
Page 30: Specifications
Appendix Specifications General Power supply Refer to the main label on the unit. Power consumption Refer to the main label on the unit. Net Weight 1.6 kg External dimensions (W x H x D) (150 x 200 x 212) mm Operating Temperature 5 °C to 35 °C (41 °F to 95 °F) Operating humidity... -
Page 31: Maintenance
Appendix Maintenance Notes on Discs Handling Discs Handling the Unit Never stick paper or tape on the disc. Storing Discs When shipping the unit After playing, store the disc in its case. Do not Please save the original shipping carton and expose the disc to direct sunlight or sources of heat packing materials. - Page 32 DM1530-DU.AESPLLK_ENG_2304.indd 32 2015-04-02 10:37:18...
