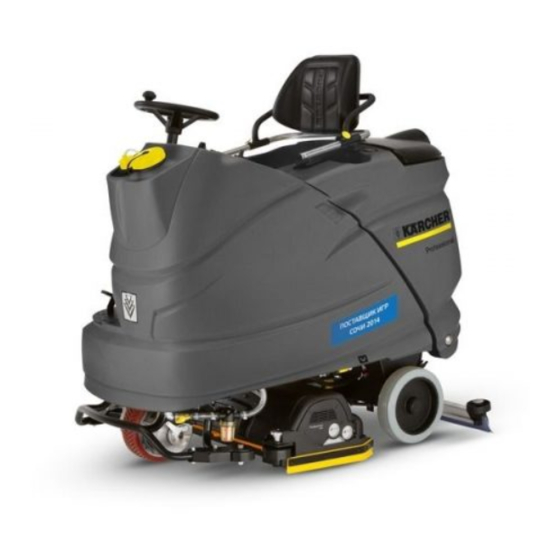

Kärcher B140R Quick Start

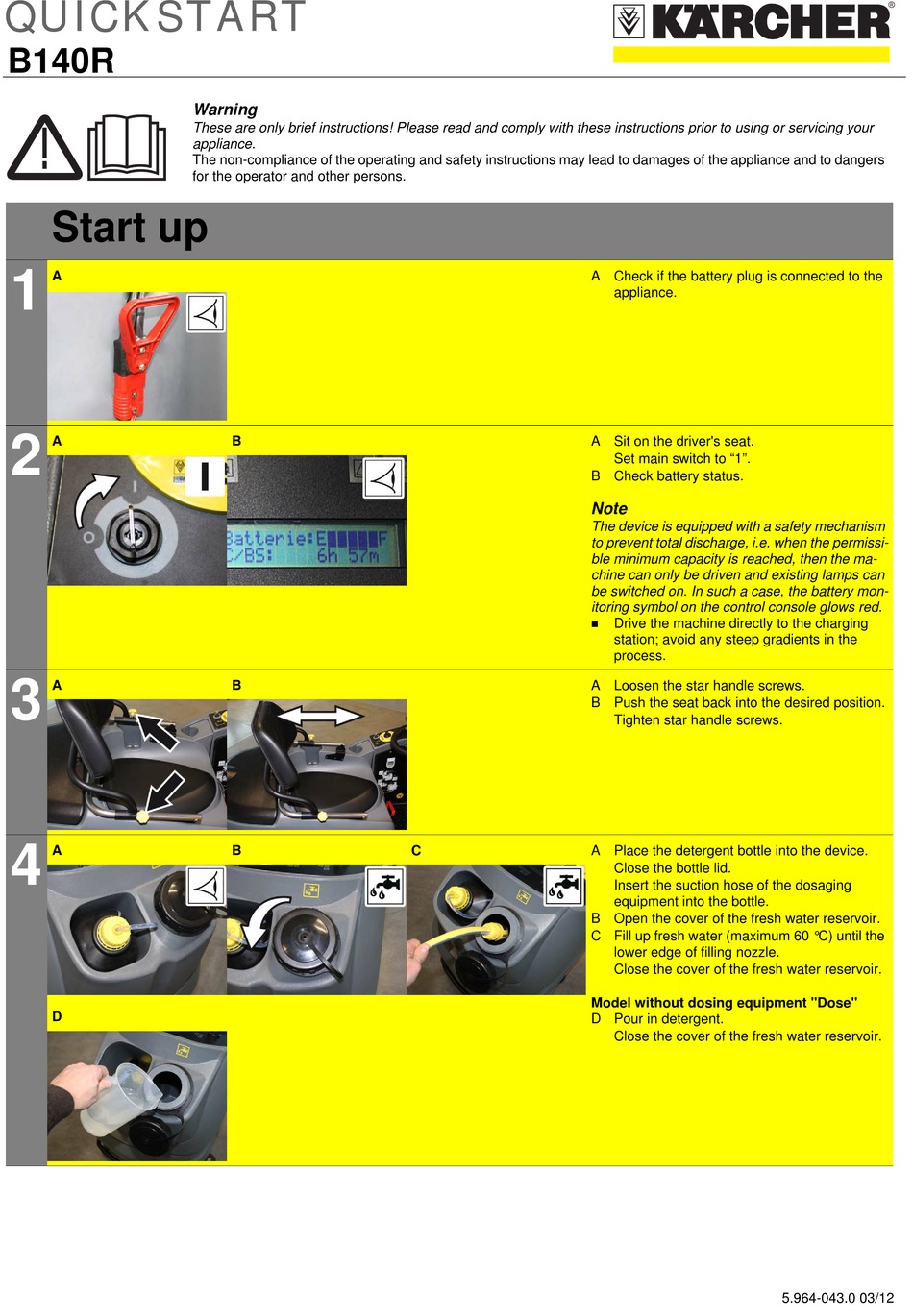

QUICKSTART
B140R
Start up
1
A
2
A
3
A
4
A
D
Warning
These are only brief instructions! Please read and comply with these instructions prior to using or servicing your
appliance.
The non-compliance of the operating and safety instructions may lead to damages of the appliance and to dangers
for the operator and other persons.
B
B
B C
A Check if the battery plug is connected to the
appliance.
A Sit on the driver's seat.
Set main switch to "1".
B Check battery status.
Note
The device is equipped with a safety mechanism
to prevent total discharge, i.e. when the permissi-
ble minimum capacity is reached, then the ma-
chine can only be driven and existing lamps can
be switched on. In such a case, the battery mon-
itoring symbol on the control console glows red.
 Drive the machine directly to the charging
station; avoid any steep gradients in the
process.
A Loosen the star handle screws.
B Push the seat back into the desired position.
Tighten star handle screws.
A Place the detergent bottle into the device.
Close the bottle lid.
Insert the suction hose of the dosaging
equipment into the bottle.
B Open the cover of the fresh water reservoir.
C Fill up fresh water (maximum 60 °C) until the
lower edge of filling nozzle.
Close the cover of the fresh water reservoir.
Model without dosing equipment "Dose"
D Pour in detergent.
Close the cover of the fresh water reservoir.
5.964-043.0 03/12
