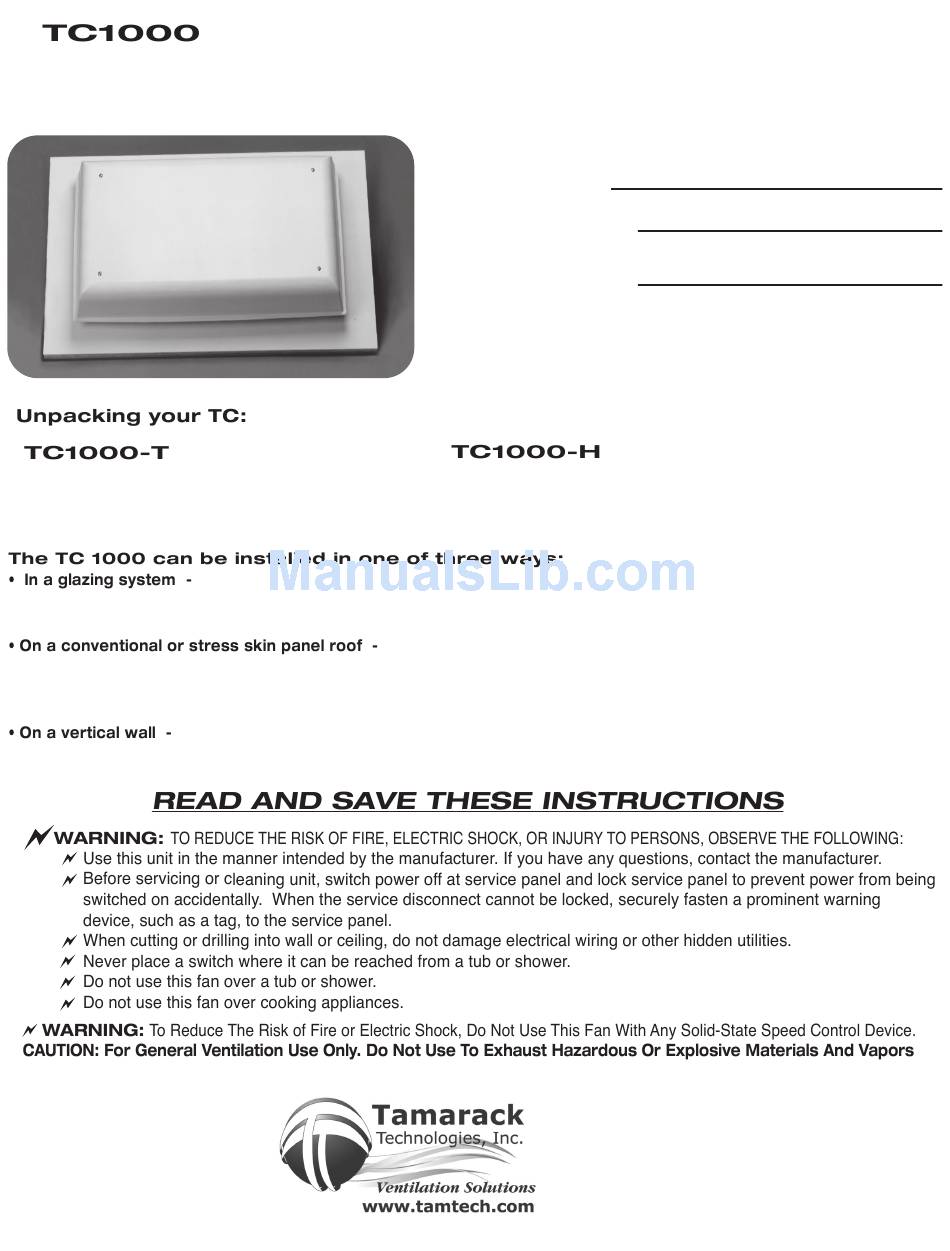

PRODUCT MANUAL & INSTALLATION GUIDE

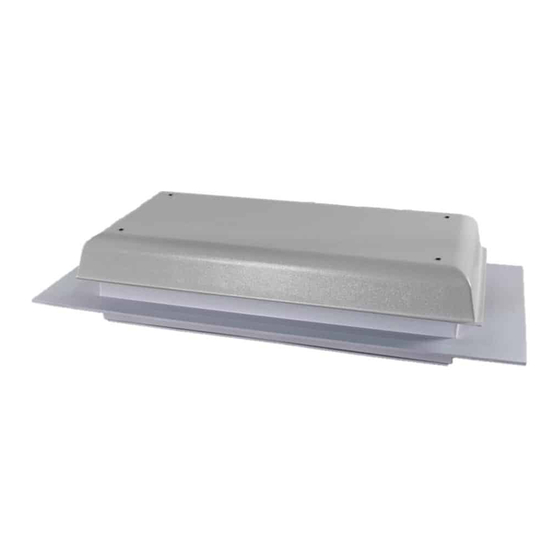

One (1) TC1000-T All Weather Ventilator
One (1) Line Voltage Thermostat
The TC 1000 must be installed by a qualified installer. If it is to be installed in a double glazing
system, an internal spacer to match the thickness of the glazing must be factory installed, or one fabricated on the site.
If a spacer is site fabricated, please note that it must be installed UNDER the fan.
After a 12 1/2" x 27" rough opening is cut through the roof, a sheet metal "thimble" should be installed to line the opening
The fan should be installed using standard skylight flashing techniques and an optional grille is recommended to
cover the opening in the ceiling.
We strongly suggest installing a piece of flashing above the TC 1000 to sweep the rain away before
it hits the edge of the fan.
When you have unpacked your TC carefully you will find the following:
The TC 1000 will have no internal spacer - its flanges will be 1/4" thick.
Serial Number
Date of Purchase
Point of Purchase
The serial number is located on the shipping carton
and on a label affixed to the upper housing.
One (1) TC1000-H All Weather Ventilator
320 Main Street • Buzzards Bay, Ma 02532
508-759-4660 / 800-222-5932 / Fax 508-759-6001
TCPG.3
