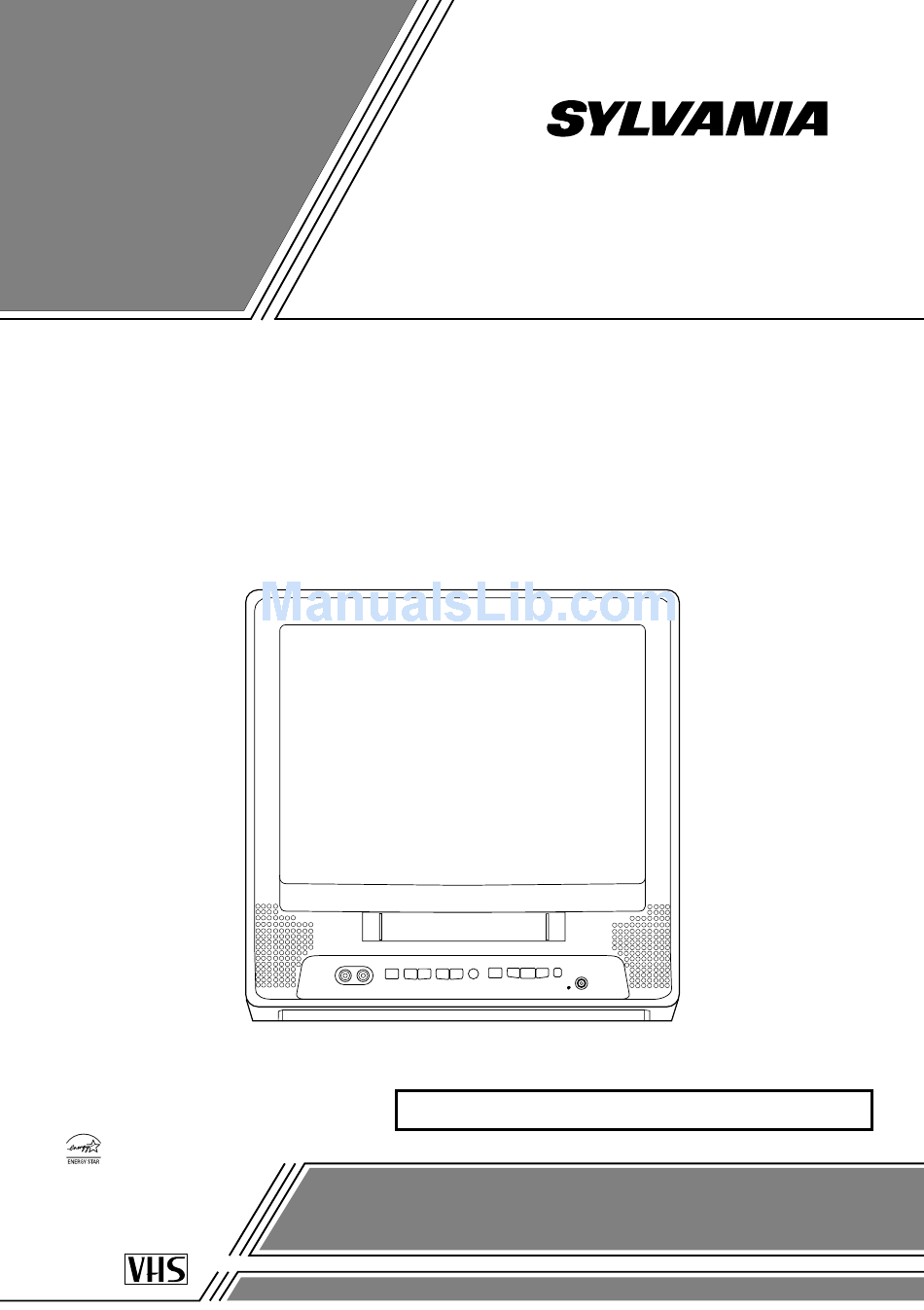

OWNER’S MANUAL COLOR TV/VCR SRC2213W SRC2419 This Owner’s Manual is made of recycled paper. ® As an E NERGY Partner, our company has determined that this product meets the E ® guidelines for NERGY ® energy efficiency. E NERGY is a U.S. registered mark.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.
Page 3
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECT RICAL CODE NEC - NATI O NAL EL ECTRI CAL CO DE S2 8 9 8 A 13.Outdoor Antenna grounding-If an outside antenna or cable system is connected to the TV/VCR, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.
LOCATION For safe operation and satisfactory performance of your TV/VCR, keep the following in mind when selecting a place for its installation: • Shield it from direct sunlight and keep it away from sources of intense heat. • Avoid dusty or humid places. •...
You can view a • V-CHIP– from watching inappropriate material on TV. • FM mode– (13 inch model /SRC2213W only) 2 AA Batteries - 6 - Automatically cleans video The tape returns to counter of Automatically Improves playback picture...
If you decide to use a universal remote control with this unit, please be aware that the code number given may not operate this unit. In this case, please call the manufacturer of the universal remote control. - TV/VCR FRONT PANEL - - REMOTE CONTROL - [SRC2213W] WAKE-UP POWER /SLEEP...
Page 8
- REAR VIEW - Press to rewind the tape, or to view REW button– the picture rapidly in reverse during playback mode. (Rewind Search) button– • Press to select a mode from a particular menu. (for example: LANGUAGE or USER’S SET Press to begin playback.
ANTENNA/CABLE CONNECTIONS From Cable System or Satellite Dish Satellite Box or O UT Cable Box (Not supplied) From Cable System 75-ohm Coaxial Cable (Not supplied) VHF/UHF COMBINED ANTENNA The VHF/UHF Rod Antenna (supplied with 13” model only) is detachable. Insert the stem of the antenna into the hole on the upper-back portion of the TV/VCR.
TO RECORD A SCRAMBLED/UNSCRAMBLED CHANNEL 1) Set the TV/VCR channel selector to the output channel of the Cable Converter Box or Satellite Box. (Example: CH3) 2) Select the channel to record from your Cable Converter Box or Satellite Box. FRONT A/V INPUT When using an external input signal (another VCR, video game or video camera), connect the player’s audio/video output cables to the AUDIO IN/ VIDEO...
Page 11
In the example below, the clock is to be set to: DATE May 6th, 2004 SETTING TIME 5:40PM Select “SETTING CLOCK” Press the MENU button on the remote control. Press the PLAY/K or STOP/L button to point to “SETTING CLOCK”. Then, press the F.FWD/B button.
Select “SETTING CLOCK” Press the MENU button on the remote control. Press the PLAY/K or STOP/L but- ton to select “SETTING CLOCK”. Press the F.FWD/B button to enter “SETTING CLOCK” menu. Set “AUTO CLOCK” to [ON] Press the F.FWD/B button until “AUTO CLOCK [ON]”...
CHANNEL SET UP You can program the tuner to scan all the channels you receive in your area. NOTE: Channel memory programming is NOT needed when connected to a cable box or satellite box. Just select the TV/VCR channel selector to the output channel of the cable box or satellite box (Ex CH3).
WATCHING A TV PROGRAM Turn on the TV/VCR Press the POWER button to turn on the TV/VCR. Select the channel number Press the CHANNEL K or L button to select your desired channel number or press the number buttons on the remote control. Remember: If the TV/VCR is connected to a cable box or satellite box, the TV/VCR must be on CH3 or CH4, then the channel to be viewed must be selected...
CLOSED CAPTION SYSTEM You can view specially labeled (cc) TV programs, movies, news, pre-recorded tapes with either a dia- logue caption or text display. By choosing the caption mode, you CAPTION mode: can watch dramas, movies and news while captioning the dialogues and the contents of news.
Exit the V-Chip setting mode Press the MENU button on the remote control to enter the setting and exit the screen. V-CHIP SET UP SUB RATINGS When you select the ratings of TV-Y7,TV-PG,TV-14 or TV-MA you will have the option of selecting sub rating categories.
Exit the V-Chip setting mode Press the MENU button on the remote control to enter the setting and exit the screen. CHANGE ACCESS CODE To change access code, follow the steps. Select “V-CHIP SET UP” Press the MENU button on the remote control. Press the PLAY/K or STOP/L button to select “V- CHIP SET UP”.
NORMAL PLAYBACK Make sure ... • TV/VCR power must be turned on. Insert a prerecorded tape If the erase-protection tab has been removed, the TV/VCR will start playback automatically. To begin playback Press the PLAY button. Note: If any menu is activated on the screen, the PLAY button does not function.
TIME SEARCH The Time Search function makes it possible to quick- ly advance the tape to your desired position simply by entering the exact amount of playback time you want to skip. NOTES: • Time Search can be set up to a maximum of 9 hours 50 minutes (9:50) by 10 minutes at a time.
VERTICAL HOLD CONTROL In the Pause/Still mode only, when the picture begins to vibrate vertically, stabilize the picture by pressing the CHANNEL K or L button. NOTE: If there are video noise lines on the screen, see Tracking Adjustment section. STILL PICTURE You can view a still picture on the TV screen during playback (the Still mode).
OTR (One Touch Recording) This function enables you to set the recording length simply by pressing the REC/OTR button on the TV/VCR. 1)Begin OTR by pressing the REC/OTR button on the TV/VCR repeatedly until the desired recording length appears. Recording stops when 0:00 is reached.
F.FWD/B button. For every day recording : To record a TV program at the same time on the same channel every day. (Example: Monday through Sunday) Press the STOP/L (down) button until “EVRY DAY” appears. Then, press the F.FWD/B but- ton.
TO CANCEL AN AUTOMATIC TIMER RECORDING • After setting a program; 1)Press the POWER button. 2)Repeat steps [1] ~ [2] under TIMER RECORD- ING, page 21, and select a program you want to cancel. 3)Press the T-PROG. CLEAR button. 4)Press the MENU button on the remote control to return to TV mode.
Select “TV” or “TAPE” Press the PLAY/K or STOP/L but- ton until it points to “TV/TAPE”. Press the F.FWD/B or REW/s button, and select [TV] or [TAPE]. Set wake up time Press the PLAY/K or STOP/L but- ton until it points to “TIME”. Press the F.FWD/B or REW/s button until your desired wake up time appears.
To check the Counter, Clock and Channel number on the TV screen, press the DISPLAY button on the remote control. Each time you press the DISPLAY button on the remote control, the TV screen will change as follows: WHEN THE CLOSED CAPTION MODE IS OFF: •...
TROUBLESHOOTING GUIDE If you have followed the instructions contained in this manual and have difficulty in operating your TV/VCR, locate the PROBLEM in the left column below. Check the corresponding CORRECTIVE ACTION column to remedy the problem. PROBLEM No power. No picture and sound.
CONTROLES DE OPERACIÓN Y SUS FUNCIONES Este manual sirve para los modelos de 13" y 19". A excepción de la apariencia, la operación de los dos modelos es exac- tamente la misma. En este manual se muestra el modelo de 13". NOTA: No recomendamos utilizar mandos a distancia universales.
- PANEL TRASERO - 9 Botón de reproducción (PLAY) iniciar la reproducción. Botón K – • Púlselo para seleccionar los modos de ajuste desde el menú de la pantalla. • Púlselo para introducir dígitos cuando establezca un programa. (Por ejemplo: Para ajustar el reloj o establecer un programa de temporizador) 10 Botón de avance rápido (F.FWD) para avanzar rápidamente la cinta, o para ver la...
Desde el cable coaxial o caja de emisiones vía Caja de CATV satélite de 75 ohm del o caja de emi- sistema de Cable siones vía satélite (no incluído) O UT Desde el sistema de Cable Cable coaxial de 75 ohm (no incluído) MODO DE ENTRADA EXTERNA Cuando utilice una señal de entrada externa (otra videograbadora o una videocámara), conecte los cables...
AJUSTE DE CANAL Puede programar el sintonizador para buscar todos los canales que recibe en su localidad. NOTA: El canal preparado NO es necesario cuando esté conectado a una caja de cable o caja de satélite. Sólo tiene que seleccionar con el selector de canal del televisor/videograbadora al canal de salida de la caja de cabe o caja de satélite (por ejemplo el canal CH3).
