Sylvania SRT902A Operation Instruction Manual

Lcd color digital tv receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

SRT902A
Operation
Instruction
LCD Color digital TV receiver
NOTE: THIS UNIT IS NOT MEANT TO BE USED IN A MOVING VEHICLE. ATSC DIGITAL
TUNERS DOES NOT RECEIVE SIGNAL WHEN IN MOTION.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.

Advertisement

Table of Contents
loading

Related Manuals for Sylvania SRT902A

Summary of Contents for Sylvania SRT902A

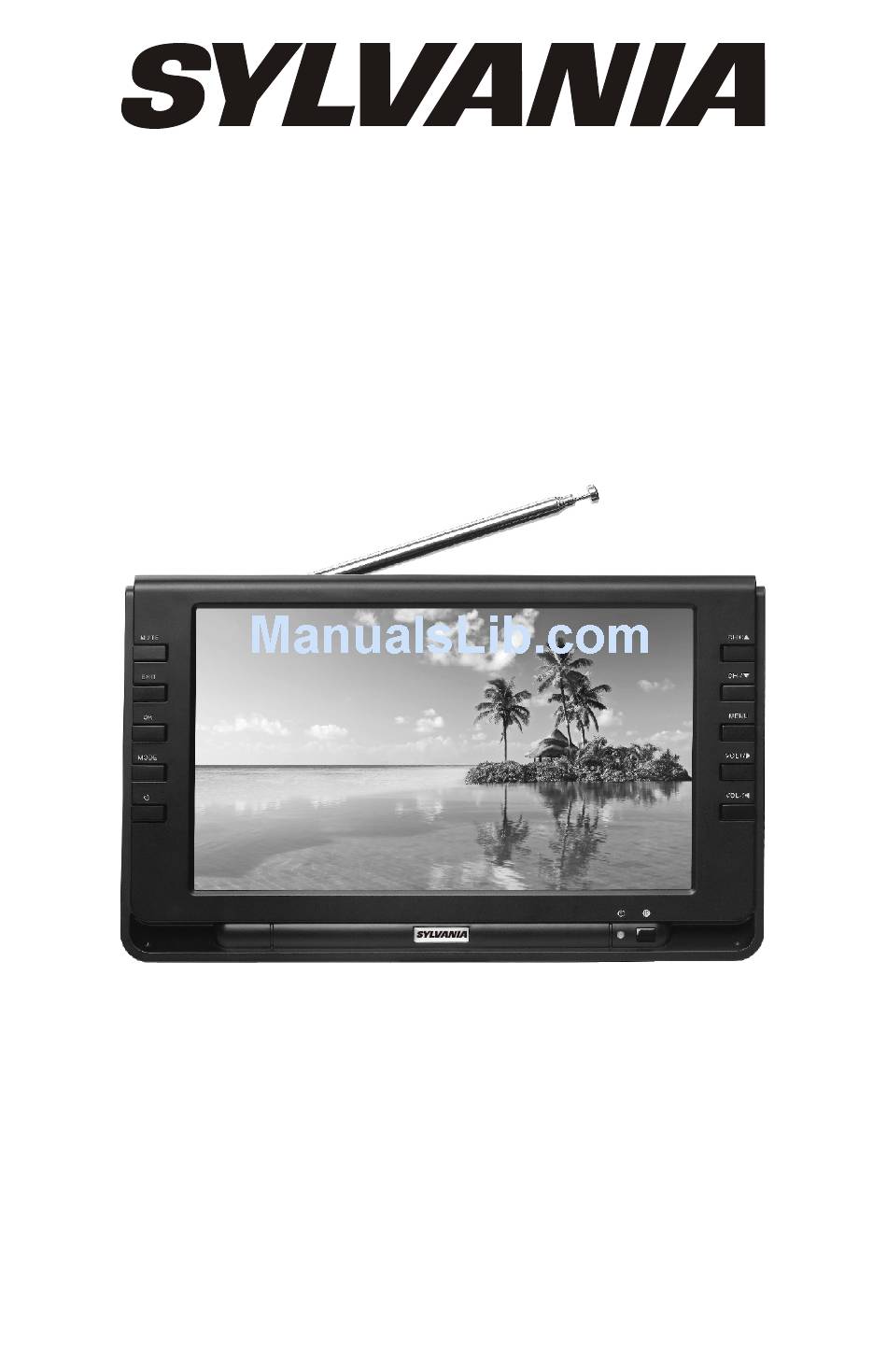

  • Page 1 SRT902A Operation Instruction LCD Color digital TV receiver NOTE: THIS UNIT IS NOT MEANT TO BE USED IN A MOVING VEHICLE. ATSC DIGITAL TUNERS DOES NOT RECEIVE SIGNAL WHEN IN MOTION. This device complies with Part 15 of the FCC Rules.

  • Page 2: Table Of Contents

    Precautions Accessories Appearance Description of Panel Buttons Remote Controller Operation Instruction Basic Operation VII TV Menu Operation 7.1. TV/AV Image Quality Adjustment 7.2. Sound Adjustment 7.3. Time Adjustment 7.4. Settings 7.5. Program search VIII Operations in CARD mode Before Repair Technical Parameter Stand Assemble Instruction Manual Contents...

  • Page 3: I Precautions

    I Precautions Storage 1. Keep this product away from extremely hot or cold places. The storage temperature ranges from -40 temperature from -5 2. Do not use this product at damp environment like bathtubs, wash basins, kitchens, washtubs, as well as basements, swimming pools or similar places.

  • Page 4: Accessories

    II Accessories 1. Car adapter 2. AC adapter 3. 75 ohm antenna conversion cable(screw connector) 4. Remote control 5. AAA type batteries 6. AV conversion cable 7. Telescopic antenna 8. User manual * Open the package and make sure all the items are included.

  • Page 5: Appearance

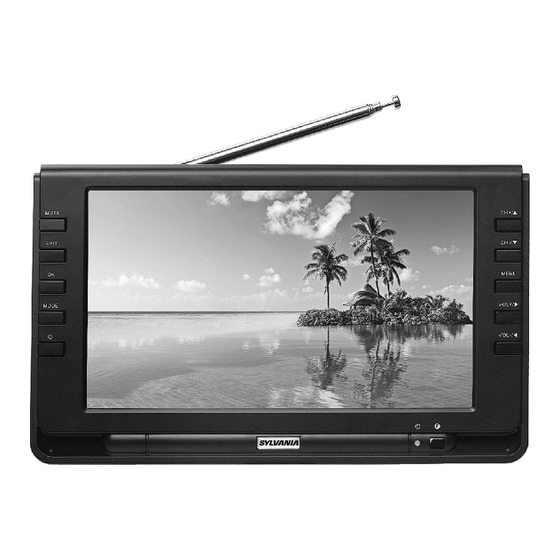

    III Appearance 1. Telescopic antenna 2. MUTE: Mute button 3. EXIT: Exit button . OK: Confirm button 5. MODE: Mode shift button : Standby button 7. TFT-LCD screen 8. CH+/ : Channel Select/ Upward button 9. CH-/ : Channel Select/ Downward button MENU: Menu button VOL+/...

  • Page 6: Description Of Panel Buttons

    IV Description of Panel Buttons 1. MUTE: Mute button. 2. EXIT: Exit button. OK: Confirm button. 4. MODE: TV/AV/External storage switch. : Standby button. . CH+/ : Upward selection/Channel increasing. 7. CH-/ : Downward selection/Channel decreasing. 8. MENU: Menu button, press to show the main menu. When system enters a multilevel submenu, press to return the previous menu step by step.

  • Page 7: Remote Controller Operation Instruction

    V Remote Controller Operation Instruction (Power Switching Key): When you press this key, the TV set will be turned off, and press again it will be turned on. 2. Channel Key(Number key (0-9) and ): Press relevant key directly when you want to change channel. 3.
  • Page 8 9. LIST: TV program menu key. When pressing this key, you will see the entire program list in a program list box. 10. FAVOR: Press to activate/deactivate my favorite Program list. 11. SOURCE : When pressing this key, you switch state among TV , AV and External storage .

  • Page 9: Basic Operation

    VI Basic Operation 1. Connection of Power Supply: Align the power supply plug on AC adapter with the jack on the machine rear cover marked with 2. Connection of Antenna Cable: 75ohm antenna conversion line Align one end of the attached antenna cable plug in the antenna jack on TV set and the other end plug in the external antenna jack.

  • Page 10: Tv Menu Operation

    VII TV Menu Operation 7.1. TV/AV Image Quality Adjustment Picture Mode Brightness Contrast Color Sharpness Tint Color Mode Press MENU key to enter the menu list and then press left or right key to enter the above list. Press up and down key to choose to enter the sub-list, press left and right key to adjust the numerical value or setup the contents, then press MENU to confirm and return to previous list.

  • Page 11: Time Adjustment

    Press MENU key to enter the menu list and then press left or right key to enter the above list. Press up and down key to choose to enter the sub-list, press left and right key to adjust the numerical value or setup the contents, then press Menu to confirm and return to previous list.

  • Page 12: Settings

    7.4. Settings Menu Language Zoom Mode Transparency OSD Time Out Closed Caption Restore Default Press MENU key to enter the menu list and then press left or right key to enter the above list. Press up and down key to choose to enter the sub-list, press left and right key to setup the contents.

  • Page 13: Program Search

    There are three CC Modes, which are Off (closed caption off), On (closed caption always on when information is available) and CC on Mute (closed caption on when TV is in mute and closed caption off when TV is not in mute). Basic Selection can choose among CC1, CC2, CC3, CC4, Text1, Text2, Text3, Text4.

  • Page 14: Operations In Card Mode

    VIII Operations in CARD mode 1. Memory (USB and CARD) operation This product supports a variety of USB memories, as well as four types SD , MMC , MS and MS PRO . The capacity of the USB of cards, like Multi memory and cards is required to be below 4GB.
  • Page 15 2.1. When in PHOTO status, press OK and then VOL- select the corresponding function of the icon in tool bar: : Previous photo : Pause (It is Play button when in pause status) : Next photo : Zoom in : Repeat : 6-image display 2.2.

  • Page 16: Before Repair

    IX Before Repair The following phenomenons do not mean that the TV set has fault. Please check it according to the following methods before repair. Phenomenon No image and sound No signal No sound Mosaic in the image Could not receive signals Image too dark Reason...

  • Page 17: Technical Parameter

    X Technical Parameter Input ATSC frequency: 54MHz 803MHz NTSC receiving frequency: 55.25MHz 801.25MHz LCD Screen Technical Parameter LCD screen: 9" LCD Resolution: 640 H LCD screen scale: 16:9 Capability Parameter Power Supply: By AC Adaptor AC INPUT 100-240V 50/60HZ DC OUTPUT 12V/2000mA Build-in battery: 7.4V/2000mAh Dimensions: 258 156 39mm Net Weight: About 780g...

  • Page 18: Stand Assemble Instruction Manual

    Stand Assemble Instruction Manual Pict.-1 Step One: Pick up the stand from the package as Pict.-1. Step Two: Pick out the 2 screws from the Stand Head and use later Pict.-2. Step Three: use the 2 screws from the step two to put into the hole of the fixed stand, later it can be used to lock the stand head Pict.-3.
  • Page 19 This operation instruction is only intended for reference. No further notice is available to any modification of all information contained therein. Due to continuing improvements, the features and design are subject to change without notice. No repairable components exist in the machine. Don't try to dismantle and improve the TV box, and the high voltage in the machine may cause danger.
