American Standard Colony PRO Series Installation Instructions Manual

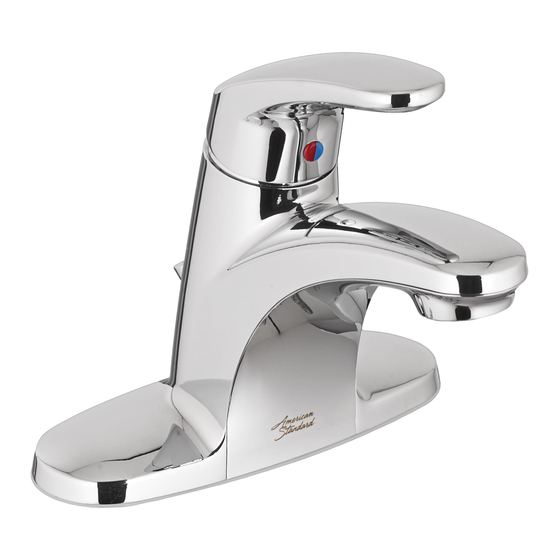

Single control centerset lavatory faucet
Hide thumbs Also See for Colony PRO Series:
Table of Contents

Advertisement

Quick Links

PLUMBING, HEATING, COOLING, AND INDUSTRIAL SUPPLIES
SERVING NEW ENGLAND & NEW YORK SINCE 1866
F.W. WEBB COMPANY- O & M
WARREN MECHANICAL
O&M FIXTURES
HARTLEY BLOCK
06/08/2018
Erica Bryant @ FW Webb Co.
07/29/2016
150 Postal Service Way • South Portland, Maine
P h o n e : ( 2 0 7 ) 7 7 2 - 8 3 6 4 F a x : ( 2 0 7 ) 7 7 3 - 4 5 7 1

Advertisement

Table of Contents
loading

Related Manuals for American Standard Colony PRO Series

Summary of Contents for American Standard Colony PRO Series

  • Page 1 PLUMBING, HEATING, COOLING, AND INDUSTRIAL SUPPLIES SERVING NEW ENGLAND & NEW YORK SINCE 1866 F.W. WEBB COMPANY- O & M WARREN MECHANICAL O&M FIXTURES HARTLEY BLOCK 06/08/2018 Erica Bryant @ FW Webb Co. 07/29/2016 150 Postal Service Way • South Portland, Maine P h o n e : ( 2 0 7 ) 7 7 2 - 8 3 6 4 F a x : ( 2 0 7 ) 7 7 3 - 4 5 7 1...

  • Page 2: Recommended Tools

    7075.050 / 7075.004 / 7075.005 CENTERSET 7075.006 / 7075.002 / 7075.000 LAVATORY FAUCET Thank you for selecting American Standard... the benchmark of fine quality for over 100 years. To ensure that your installation proceeds smoothly-please read Certified to comply with ANSI A112.18.1M these instructions carefully before you begin.
  • Page 3 P-2, P-2B - 7075.050 INSTALL POP-UP DRAIN • Push TAIL PIECE (11) down into TRAP (C) (threaded end up). • Thread LOCKNUT (5), WASHER (4) and GASKET (3) (Bevel side up) onto DRAIN BODY (10). • Apply a bead of PUTTY (D) to underside of FLANGE (2). •...

  • Page 4: Care Instructions

    P-2, P-2B - 7075.050 TEST INSTALLED FITTING • With HANDLE (1) in OFF position, turn on WATER COLD SUPPLIES (2) and check all connections for leaks. • Remove AERATOR (3). • Operate HANDLE (1) to flush water lines thoroughly. • Replace AERATOR (3). CHECK DRAIN CONNECTIONS •...
  • Page 5 P-2, P-2B - 7075.050 COLONY ® SINGLE CONTROL CENTERSET LAVATORY FAUCET MODEL NUMBERS 7075.054 / 7075.055 / 7075.056 7075.050 / 7075.004 / 7075.005 M970184-YYY0A 7075.006 / 7075.002 / 7075.000 HANDLE KIT M970194-YYY0A Replace the “YYY” with SET SCREW & BUTTON &...

  • Page 6: Specification

    P-3 - SYMMONS 9602-XP Origins ™ S-9600-P, S-9600TS-P, S-9601-P, S-9602-P Operation & Maintenance Manual Model Numbers Specification S-9600-P/S-9601-P  S-9600-P Origins Shower Valve Shower system powered by the Temptrol Pressure ® Balancing valve. Features adjustable stop screw to  S-9600TS-P limit handle turn, integrated volume control, 1 mode Origins Tub/Shower Valve showerhead with easy to clean rubber nozzles and...
  • Page 7 P-3 - SYMMONS 9602-XP Dimensions Measurements 6 3/8”, 162 mm 3 1/2”, 89 mm 2 7/8”, 73 mm Shower Valve Hole Size Min. Ø 3”, 76 mm Max. Ø 4”, 102 mm Ref. 77”, 1956 mm Rough-in 2 3/8” ± 1/2”, 60 mm ± 13 mm Ref.

  • Page 8: Parts Breakdown

    P-3 - SYMMONS 9602-XP Parts Breakdown Replacement Parts Item Description Part Number Showerhead 4-141 Shower Arm & 300S Flange Handle RTS-061 Assembly Dome Cover T-19 S-9600TS-TRM-KIT Shower (S-9602-P, S-9600TS-P) Escutcheon Kit S-9600-TRM-KIT (S-9601-P, S-9600-P) Water Supply Diverter/Volume RTS-062 RTS-062-B (Brass) Control Handle COLD Water Supply...

  • Page 9: Installation

    P-3 - SYMMONS 9602-XP Installation Note: 3) Install dome cover (E) to valve by 5) Install tub spout (K) to pipe fitting. For valve body installation, please turning clockwise. Turn clockwise to secure. see valve body manual. 1) Install diverter handle or volume control handle (J) into shower escutcheon (G).

  • Page 10: Operation (Temperature Control)

    P-3 - SYMMONS 9602-XP Operation (Temperature Control) 1) Turn shower handle counterclock- 2) Turn shower handle counterclock- 3) Turn shower handle counterclock- wise approximately 1/4 turn to put wise approximately 1/2 turn to put wise approximately 3/4 turn to put valve in cold position.
  • Page 11 P-3A SYMMONS 9604-PLRX Origins ® S-9603-PLR, S-9604-PLR Operation & Maintenance Manual Model Numbers Specification S-9603-PLR  S-9603-PLR Origins Hand Shower System Hand shower system powered by the Temptrol ® Pressure Balancing valve. Features adjustable stop screw  S-9604-PLR to limit handle turn, integrated volume control, 36” slide Origins Tub/Hand Shower System bar, in-line vacuum breaker, 60”...
  • Page 12 P-3A SYMMONS 9604-PLRX Dimensions Measurements 3”, 76 mm WOOD WOOD 3 1/2”, 89 mm Male 1/2” NPT fitting must BLOCKING BLOCKING protrude 3/8” from finished wall Shower Valve Hole Size Min. Ø 3”, 76 mm Max. Ø 4”, 102 mm 3 5/8”, 92 mm Rough-in 2 3/8”...
  • Page 13 P-3A SYMMONS 9604-PLRX Parts Breakdown Replacement Parts Item Description Part Number Handle RTS-063* Assembly Dome Cover T-19* Standard Shower S-9600-PLR-ESC* Brass Escutcheon Kit S-9600-PLR-B-ESC* Standard Diverter or RTS-062* Volume Control Brass Handle RTS-062-B* Tub Spout 060* Hand Shower ADACHS* Wall Ell 40A* Slide Mechanism FP-SM6*...
  • Page 14 P-3A SYMMONS 9604-PLRX Installation 7) Disassemble slide assembly (L). Note: 4) Install handle (A) to valve. Secure For valve body installation, please with set screw (B). see valve body manual. 1) Attach diverter handle or volume control handle (F) to shower escutcheon (E).
  • Page 15 P-3A SYMMONS 9604-PLRX Installation 9) Press tabs on wall ell flange. Install wall ell (K) to pipe 10) Attach hand shower (H) to hose (N). Attach hose (N) to fitting. Turn clockwise to secure. vacuum breaker (M). Connect vacuum breaker (M) to wall ell (K).
  • Page 16 P-3A SYMMONS 9604-PLRX Operation (Volume Control) 1) Turn volume control handle left for high flow. 2) Turn volume control handle right for low flow. Troubleshooting Chart Problem Cause Solution Clean finished trim area with a soft Elements in water supply may cause cloth using mild soap and water or a Finish is spotting.
  • Page 17 P-4, P4A & P4B - MOEN 8707 I l l u s t ra t e d Pa r t s C O M M E R C I A L Single-Handle Kitchen Faucet n Order by Part Number MODEL HANDLE FINISH 8707...

  • Page 18: Technical Information

    P-6 MOP SINK - ZURN Z843M1 ® AQUASPEC FAUCETS MODEL - Z84300 SERIES SINK FAUCET TECHNICAL INFORMATION MAXIMUM PRESSURE: 125 PSI MAXIMUM TEMPERATURE: 180 HANDLE NUT TORQUE: 15-20 FT - LBS. CARTRIDGE STYLE: QUARTER TURN CERAMIC DISK INSTALLATION INSTRUCTIONS 1. 1/2” IP NIPPLE SHOULD PROTRUDE 3/8” FROM THE FINISHED WALL ON 8” CENTERS. SUPPLY PIPES SHOULD BE SECURED TO SUPPORT THE FAUCET.

  • Page 19: Maintenance

    P-6 MOP SINK - ZURN Z843M1 MAINTENANCE 1. YOUR ZURN AQUASPEC FAUCET HAS A HIGHLY POLISHED NICKEL CHROME PLATED FINISH. CLEAN WITH SOAP AND WATER OR A MILD CLEANER WHICH IS SAFE FOR CHROME PLATING. DO NOT USE ACIDS OR TOILET BOWL CLEANER AS THEY WILL DAMAGE THE FINISH.

This manual is also suitable for:

Colony pro 7075.054Colony pro 7075.055Colony pro 7075.056Colony pro 7075.050Colony pro 7075.005Colony pro 7075.004 ... Show all
