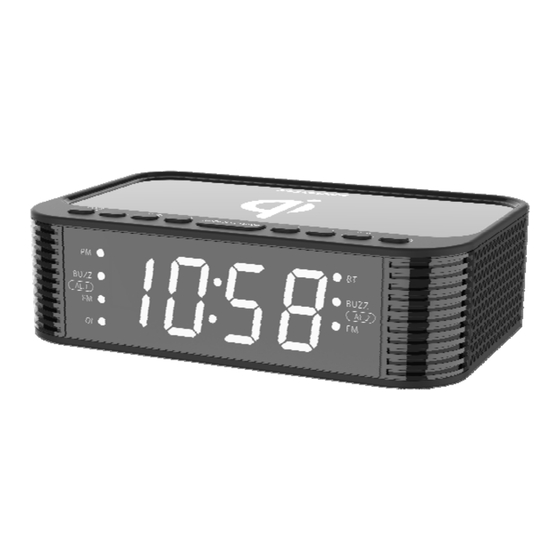

- Page 1 USER MANUAL WIRELESS QI CHARGING BLUETOOTH ALARM CLOCK ITEM NO.: SCR0932 Please read and follow this instruction manual carefully before using the unit and retain it for future reference...
-
Page 2: Important Safety Instructions
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”... -
Page 3: Fcc Notice
FCC NOTICE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. -
Page 4: Dimmer Button
UNIT BUTTONS 1. LED display 2. Left speaker 3. Right speaker 4. CLOCK/MEM./ PLAY/PAUSE Button 5. DIMMER Button 6. HOUR/SKIP‐ Button 7. MIN/SKIP+ Button 8. SNOOZE/SLEEP Button 9. AL 1/VOL‐ Button 10. AL 2/VOL+ Button 11. FUNC./Auto scan Button 12. POWER/AL OFF Button 13. DC IN 5V jack ... -
Page 5: Alarm Set
14. USB CHARGING Port 15. AUX IN Jack 16. FM Antenna 17. Battery door 18. QI Charging position 19. Rubber feet SET TIME/YEAR/MONTH/DAY 1. Power on the unit, the display will be blinking. Now in the TIME SET mode, press [HOUR/SKIP‐] button to set the hour, press [MIN/SKIP+] button to set the minutes, press and hold [CLOCK/MEM.] button for 2‐3 seconds in the YEAR SET mode (year range: ... -
Page 6: Radio Mode
RADIO MODE 1. Press [AL. OFF/POWER] button to turn on the unit, the “FM” is the default mode 2. Manual searching: short press [HOUR/SKIP‐] button or [MIN/SKIP+] button to manually adjust the FM stations 3. Auto‐searching: press and hold the [HOUR/SKIP‐] button or [MIN/SKIP+] button to auto adjust the FM stations 4. Memory Set to obtain the stations: short press [CLOCK/MEM.] button to save the pre‐set station, the display will show “P01”, press [CLOCK/MEM.] button again to save the next pre‐ set station, also you can press [HOUR/SKIP‐] button or [MIN/SKIP+] button to select the pre‐ set stations. The display will show station frequency 5 seconds later, and will exit the time display if you don’t press any buttons for 5 seconds 5. Store the stations: select the station which you need stored, press and hold [CLOCK/MEM.] button for 2‐3 seconds, “P01” on LED display will blinking, press [HOUR/SKIP‐] button or [MIN/SKIP+] button to select the stored position, press [CLOCK/MEM.] button to confirm 6. Auto storage the stations: press and hold [FUNC./Auto‐scan] button, the unit can auto search the stations from 87.5MHz to 108MHz, and auto store the searched stations. Can storage total 10 stations AUTO POWER OFF (SLEEP MODE) Under any mode, press [SNOOZE/SLEEP] button, LED will show “90”. Under standby mode, you can continue press [SNOOZE/SLEEP] button to select sleep time from “90→80→70→60→50→40→30→20→10→OFF”, 5 seconds after you set the sleep time, will auto confirm the set and activate the AUTO POWER OFF function. If you need to power off midway, press the [AL. OFF/POWER] button; check or change the auto power off time, after activating the auto power off function, press [SNOOZE/SLEEP] button again, the LED will show the rest auto power off time, press [SNOOZE/SLEEP] button again can select the next level auto power off time (Such as: if originally you set “30”, after 2 minutes, you check the LED will show the rest 28 minutes, if you press [SNOOZE/SLEEP] button again, at this time, the auto power off time will become “40”). If you need turn off the auto power off function, repeat press [SNOOZE/SLEEP] button, until the LED show “OFF” VOLUME CONTROL Press [AL.1/VOL‐] button or [AL2/VOL+] button to adjust to your desired volume, the volume ... -
Page 7: Dimmer Function
DIMMER FUNCTION You can press the [DIM] button to select the dimmer level from “low to high” level, the default dimmer is low level WIRELESS CHARGING FUNCTION When a wireless charging compatible device is put on top of the clock radio, the indicator “QI” of the clock display will be lit. the indicator will be off when no device is charged. BLUETOOTH MODE Press [FUNC./Auto‐scan] button to move into Bluetooth mode. The light next to BT icon will be lit. To connect the external audio device, search for Bluetooth device name SYLVANIA SCR0932 on your phone to pair. Once paired, the unit will play music, you can press [AL.1/VOL‐] button or [AL2/VOL+] button to adjust to your desired volume, press [HOUR/SKIP‐] button or [MIN/SKIP+] button to select the tracks, press [PLAY/PAUSE/PAIR] button to play or pause, press and hold [PLAY/PAUSE/PAIR] button for 2‐3 seconds can disconnect the Bluetooth Bluetooth indicator: will blink slowly if no connected, and will light steadily if connected Bluetooth device name: SYLVANIA SCR0932 USB CHARGING The USB port will support USB charging, output: 5V 1A. This port is useful for charging non wireless enabled devices. AUX MODE Under FM mode, press [FUNC./Auto‐scan] button into AUX mode, connect up the external sound, the unit will play music, you can press [VOL‐] button or [VOL+] button to the desired volume ... - Page 8 To make a warranty claim, do not return this product to the store. Please email support@curtiscs.com or call 1‐800‐968‐9853. 90 day Year Warranty This product is warranted to be free from defects in material and workmanship for a period of ninety (90) days from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us. If the product or component is no ...
