User Manual
SV Sound
O
W N E R S
G
U I D E

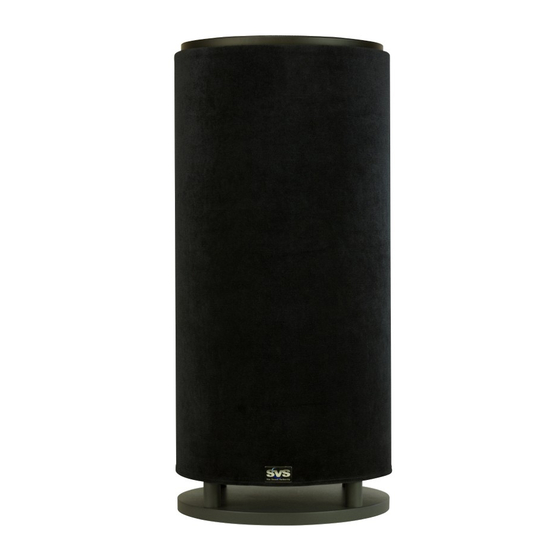

SVS PB12-NSD Powered Box and
PC12-NSD Powered Cylinder —
NSD 12" Woofer
Contents:
Chapter 2 Safety instructions
Chapter 3 SVS Welcome
Chapter 4 About your SVS subwoofer
Chapter 5 General subwoofer features
Chapter 6 Setup, integration, and calibration
Chapter 7 Subwoofer specifications
Chapter 8 Terms and Conditions
'
Last update: 30 September, 2008
