User Manual
SV Sound
O
W N E R S
G
U I D E

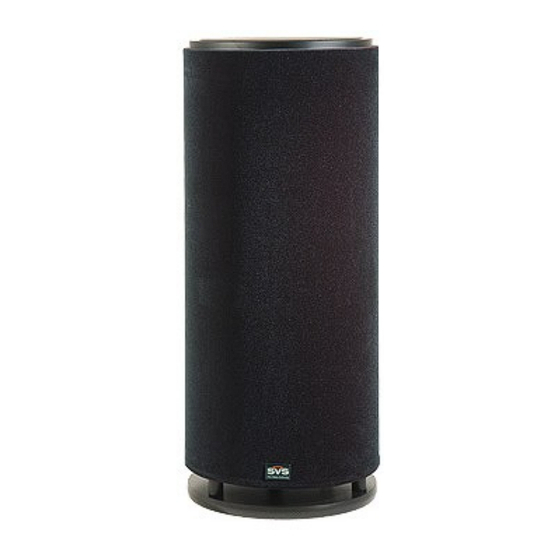

SVS PB12-Plus and PC12-Plus
Powered Box and Cylinder —
Plus 12" Woofer
Contents:
Chapter 2 Safety instructions
Chapter 3 SVS Welcome
Chapter 4 About your SVS subwoofer
Chapter 5 General subwoofer features
Chapter 6 Setup, integration, and calibration
Chapter 7 Variable tuning feature
Chapter 8 Parametric equalizer (PEQ)
Chapter 9 Subwoofer specifications
Chapter 10 Terms and Conditions
'
Last update: 30 September, 2008
Advertisement
Related Manuals for SV Sound PB12-Plus
Summary of Contents for SV Sound PB12-Plus
- Page 1 SV Sound W N E R S U I D E SVS PB12-Plus and PC12-Plus Powered Box and Cylinder — Plus 12” Woofer Contents: Chapter 2 Safety instructions Chapter 3 SVS Welcome Chapter 4 About your SVS subwoofer ...
- Page 2 SV Sound Chapter 2-1 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
- Page 3 The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. SV Sound...
- Page 4 SV Subwoofers Chapter 3 SV Sound Page 4 Welcome! At SVS, you can actually hear tireless research and design efforts built in to our subwoofers and speak- ers. Years are spent developing any SVS product — with work typically spanning from our Ohio headquar- ters…...
- Page 5 SV Subwoofers SV Sound About your SVS Subwoofer There maybe be other subwoofers that look like them, but virtually none work like them. SVS subwoofers are decidedly different in how they are designed, produced, sold, and the exceptionally high quality components we use.
- Page 6 SV Sound Chapter 5-1 Powered Box/Cylinder Common Fea- tures: SVS subwoofer amps use the most durable and accurate designs possible. Get familiar with yours! Volume/Gain Use “gain” (in conjunction with your Audio Video Re- ceiver (AVR) subwoofer output level control) to achieve bass level calibration to your liking.
- Page 7 SV Sound Chapter 5.2 Sometimes, with very low listening levels, your subwoofer might not get enough of a bass signal from your AVR to “trip” the Auto-On circuit. Should you ever find this to be the case you may leave this switch to “On”, or turn up the AVR’s subwoofer level some (be sure...
- Page 8 SV Subwoofers SV Sound Setup, calibrating and integration What’s to know? Setup is easy! However, there are key steps which must be done carefully and correctly, read on: Unpacking. Take a few moments to carefully unpack everything. Save the box and shipping materials, just in case you need to return the sub for any reason.
- Page 9 SV Sound SV Sound More Setup, calibrating and integration If you are running a pair of SVS subwoofers (Fig. 2), you will need to use an inexpensive “Y” cable adapter (d.) dard 75 Ohm RCA signal cable (e.) to each sub, thus “splitting” the Low Fre- quency Effects (LFE) and other bass from your receiver, and effectively feed- ing both subwoofers with the same signal.
- Page 10 SPL meter reading is still too high, then turn down the sub’s amp volume a little with each run of the test noise signal, as it cycles from speaker to speaker and the subwoofer. sound pressure level (SPL) ® This tool is absolutely essential to proper SV Sound Use a well-shielded...
- Page 11 Page 11 Page 11 SV Sound Chapter 6-4 But what’s “too high”?? Tastes vary, and do movie soundtracks, but your SVS subwoofer is capable of tremendous levels of low distortion, low fre- quency bass — far more than most subs in this size or price class. Take advantage of this, especially if you like action movies with lots of “.1”...
- Page 12 “tuning point”. NOTE: We strongly recommend you do NOT run a lower subsonic filter point than your port plug configuration would dictate — especially if you are running the subwoofer at high sound pressure levels. SV Sound Subsonic Filter Knob 20Hz 16Hz...
- Page 14 SV Sound Chapter 8-1 Advanced Features: Parametric Equalizer (PEQ). Important Note: Until you are ready to use the PEQ feature set, it should be disabled by setting all three controls to the full counter clock-wise position. Background Information: Direct and reflected bass waves in the listening room will create “standing waves”...
- Page 15 SV Sound Chapter 8-2 “Q” Control Effects Measuring The In-Room Frequency Response: In order to use the PEQ effectively, you must measure the in-room FR of the subwoofer at the lis- tening positions. This can be done manually using test tones and an spreadsheet, or it can be accomplished using software such as “TrueRTA”,...
- Page 16 SV Sound Chapter 8-3 To set the overall test level, play a 25 Hz frequency and adjust the sub- woofer gain (option 1 below) or the processor master volume (option 2 below) until the SPL meter reads about 75 dB at the listening position.
- Page 17 SV Sound Chapter 8-4 Option 2: Measure the Combined FR of the Speakers and Subwoofer: To measure the combined FR of the front speakers and subwoofer (to in- clude the digital crossover in your processor), connect your sound card output to an analog input on your processor. Make sure the analog input is configured to use the digital crossover between the speakers and the sub- woofer.
- Page 18 SV Sound Chapter 8-5 Set the Frequency control to the approximate center frequency of the largest peak. Set the Q control to HI (narrowest bandwidth), and set the Level control to MAX. Play the test tones again and re-measure and re- plot the affected portion of the FR curve and visually evaluate your re- sults.
-
Page 19: Specifications
SV Sound Specifications Model Name: Configuration: Design: Dimensions: H x W x D Weight: Voltage (fixed): Driver: Frequency Response: (quasi-anechoic) Inputs/Outputs: Controls: Power Handling: Crossover: Enclosure Material: PC12-Plus Powered Cylinder, 12” woofer Vented, Variable Tune 40” High x 16” Wide 102 cm H. - Page 20 SV Sound Specifications Model Name: Configuration: Design: Dimensions: H x W x D Weight: Voltage (fixed): Driver: Frequency Response: (quasi-anechoic) Inputs/Outputs: Controls: Power Handling: Crossover: Enclosure Material: PB12-Plus Powered Box, front-firing 12” woofer Vented, Variable Tune 25” High x 18” Wide x 25” Deep 63 cm H.
-
Page 21: Terms And Conditions
SV Sound Chapter 10 Terms and Conditions Terms and Conditions: Details are available on request, please contact your Dealer for more. Note that these terms and conditions do not affect your statutory rights. Shipping: When you receive your new subwoofer, please check to en- sure there is no damage.
