Summary of Contents for Bartscher I3WL820 2/1 GN

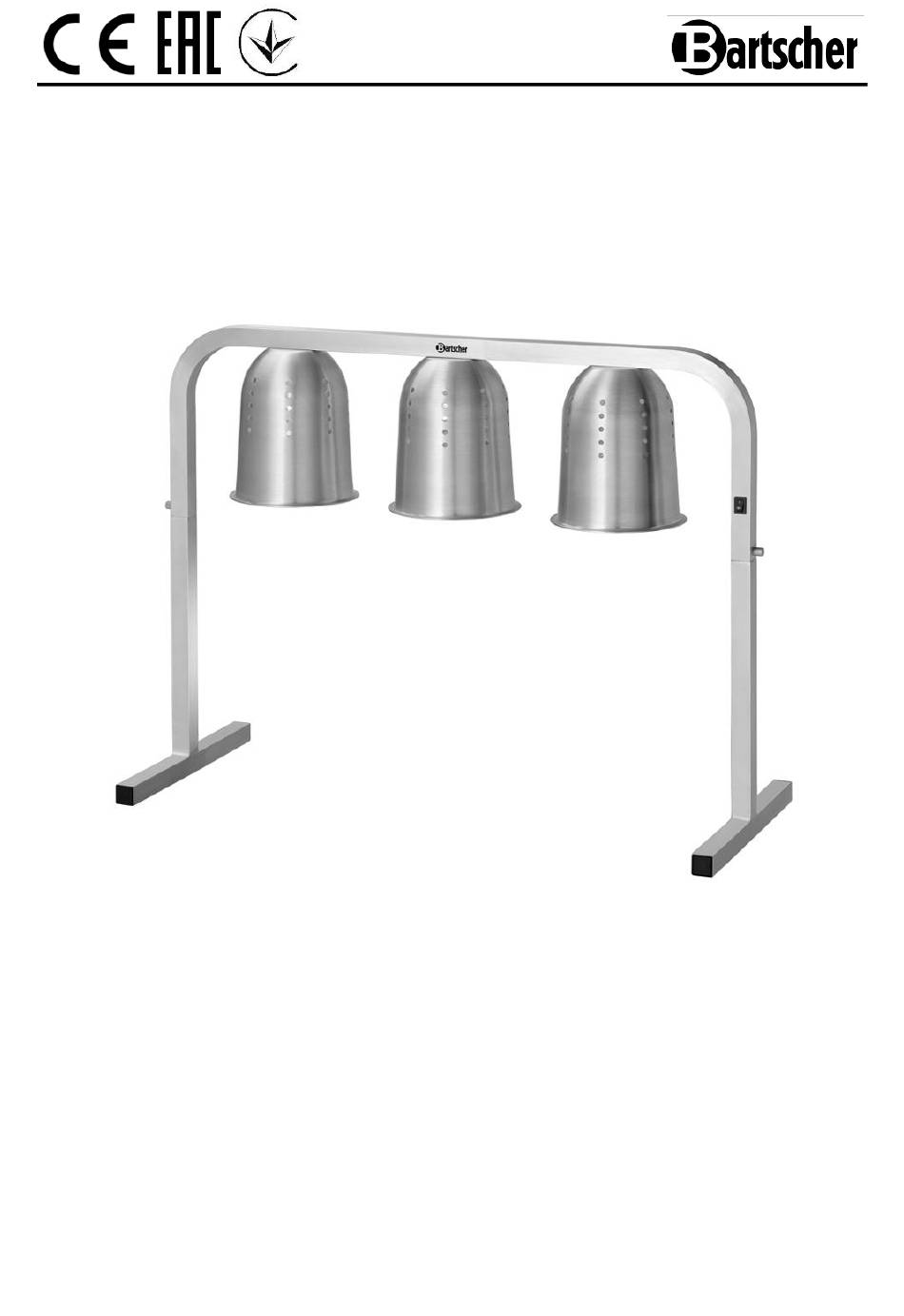

- Page 1 I3WL820 2/1 GN 114267 Original-Gebrauchsanleitung V2/0719...
-
Page 2: Table Of Contents
4.2 Technical specification ..................27 5. Installation and operation ..................28 5.1 Installation ......................28 5.2 Operation ......................30 6. Cleaning ........................31 7. Waste disposal ......................32 Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax: +49 5258 971-120 33154 Salzkotten... -
Page 3: Safety
Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Safety Instructions
HOT SURFACE! This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns! CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation. - Page 5 The device must be operated in correct and safe technical condition only. In case of operational problems disconnect the device from the power supply (pull the plug from the socket) and contact the service company. Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device.
- Page 6 Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged. If this cable is damaged, it must be replaced by customer service or a qualified electrician in order to avoid dangers. ...
- Page 7 When switched off, the ventilated aluminium reflectors, infrared lamps and upper part of the frame stay hot for some time. Before starting cleaning or moving the device elsewhere, let the device cool down completely. During the heat maintaining process the GN container with food becomes hot.
-
Page 8: Use As Intended
1.3 Use as intended Every use of the device for a different purpose and/or in a way that diverges from the intended use is not allowed and is assumed as the use against the intended purpose. Any claims against the manufacturer or their authorized representatives as a consequence of experiencing damage resulting from the use against the intended purpose are inadmissible. -
Page 9: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 10: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 11: Technical Data
4. Technical data 4.1 Overview of parts Infrared lamp (3x) Ventilated aluminium reflectors (3x) Upper lamp holder ON/OFF switch Lamp holder mounting screw (2x) Lower frame (2x) - 26 -... -
Page 12: Technical Specification
4.2 Technical specification Description Food warmer I3WL820 2/1 GN 114267 Code-No.: Material: Aluminium Heat source - Type: infrared lamps, with ventilated aluminium reflectors - Number: 3 - Power per heat source: 0.275 kW Designed for GN basins / GN tray Model: ... -
Page 13: Installation And Operation
5. Installation and operation 5.1 Installation Unpacking Unpack the device and check the delivery completeness. Delivery include the following elements: 1 x upper lamp holder with 3 factory-assembled aluminium reflectors and 3 infrared lamps; 2 x lower frame ... - Page 14 Positioning Put the device on an even, stable, dry and waterproof surface which is resistant to high temperature. Never place the device on an inflammable surface. Do not place the device near open flame, electric heaters or other heat source. ...
-
Page 15: Operation
5.2 Operation Make sure the device is disconnected from the power supply. Before use, clean the device according to the instructions set out in point 6 “Cleaning”. Connect the device to the single grounded socket. Place the warm food products in the GN 2/1 container under the infrared lamps. ... -
Page 16: Cleaning
6. Cleaning WARNING! Before cleaning disconnect the device from the power supply (pull the plug!) and leave to cool off. Never clean the device with use of pressurized water jet. Protect the device from water penetration. CAUTION! Do not use aggressive or bleaching cleaning agents containing active oxigen, chlorine or corrosive components, abrasive or scouring cleaning agents, such as steel wool, steel wool containing soap, metal or plastic sponges, or similar agents with abrasive sufrace. -
Page 17: Waste Disposal
Electric devices should be used and disposed of properly to prevent the impact on the environment. Disconnect the device from the power supply and remove the power cord from the device. Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax: +49 5258 971-120...
