INTRODUCTION
These instructions describe the installation and adjust-
ment of the universal variable air volume (VAV) control pack-
age. This package contains all necessary control devices and
hardware for mounting the system-powered controls on 37HS1,
37HS2 and 37HS4 Moduline® units.
Note that for certain applications, additional control pack-
ages are required and must be ordered separately. These
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Book 3
PC 201
Catalog No. 533-716
Tab
6a
Installation Instructions
Page

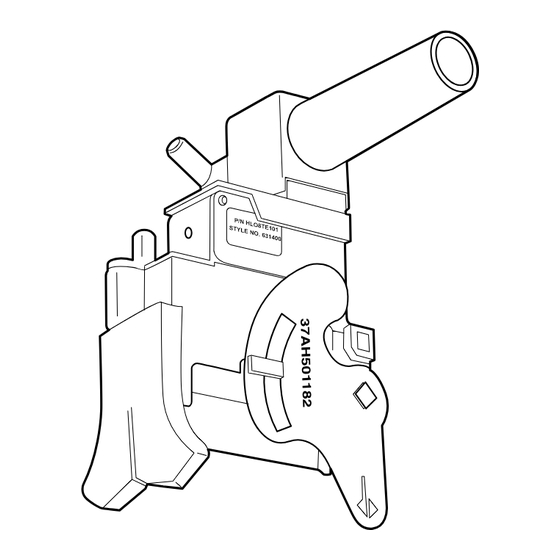

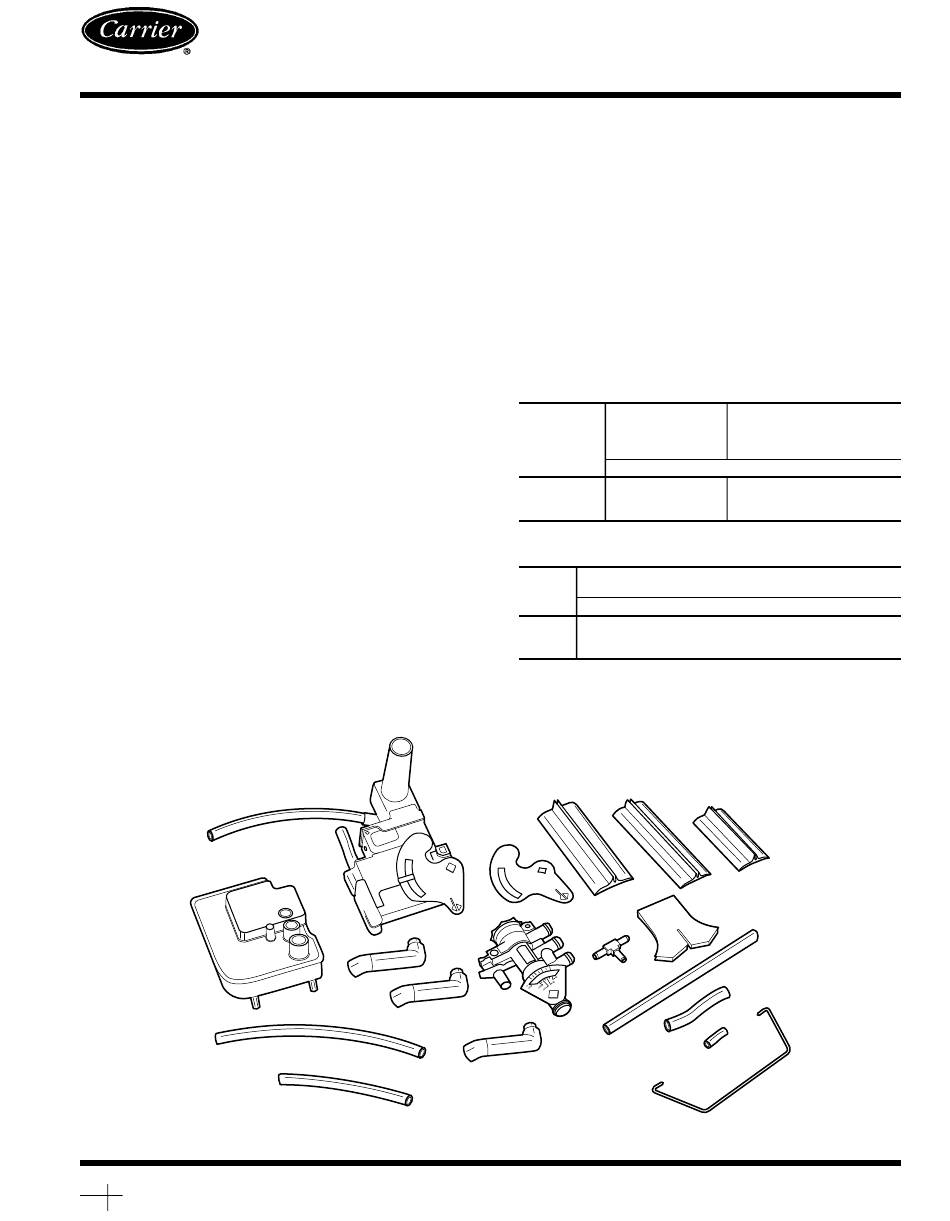

Fig. 1 - Contents of the Universal VAV Control Package
Printed in U.S.A.
include wall thermostats, warm-up valves, changeover valves
and electric warm-up valves. Separate installation instruc-
tions are provided in these packages.
This package supplements the individual VAV control pack-
ages offered for specific Moduline models. Table 1 shows
the control packages available for specific models and the
universal VAV package. Note that the constant volume con-
trol package applies to all 37HS models. Figure 1 shows the
contents of the universal VAV control package.
Table 1 - Volume Control Package Numbers
VARIABLE
AIR
UNIT
VOLUME*
37HS1
37HS900001
37HS2
37HS900002
37HS4
37HS900004
*The same volume controller is used for all 37HS models; however,
other components in the VAV control packages differ.
UNIVERSAL VARIABLE AIR VOLUME
CONTROL PACKAGE-DIFFUSER THERMOSTAT
UNIT
Package Number
37HS1
37HS2
37HS4
Form 37HS-6SI
Pg 1
37HS
CONSTANT
AIR VOLUME or
WALL THERMOSTAT
APPLICATIONS
Package Number
37HS900003
37HS900003
37HS900003
37HS900005
7-91
Replaces: New
