Kenmore 795.7507 Series Use & Care Manual

Kenmore 795.7507 Series Use & Care Manual

Bottom freezer refrigerator, congelador inferior refrigerador
Hide thumbs
Table of Contents

Advertisement

Quick Links

Use & Care Guide
Manual de Uso y Cuidado
Kenmore Elite
®
Bottom Freezer Refrigerator
Congelador Inferior Refrigerador
TM
Model/Modelo: 795.7507# - PreView Grab-N-Go
Model/Modelo: 795.7506# - Standard Door
Model/Modelo: 795.7440# - Standard Door
#
= color number, número de color
MFL69497030_Rev.00
Transform SR Brands Management LLC
Hoffman Estates, IL 60179 U.S.A.
www.kenmore.com

Advertisement

Table of Contents
loading

Related Manuals for Kenmore 795.7507 Series

Summary of Contents for Kenmore 795.7507 Series

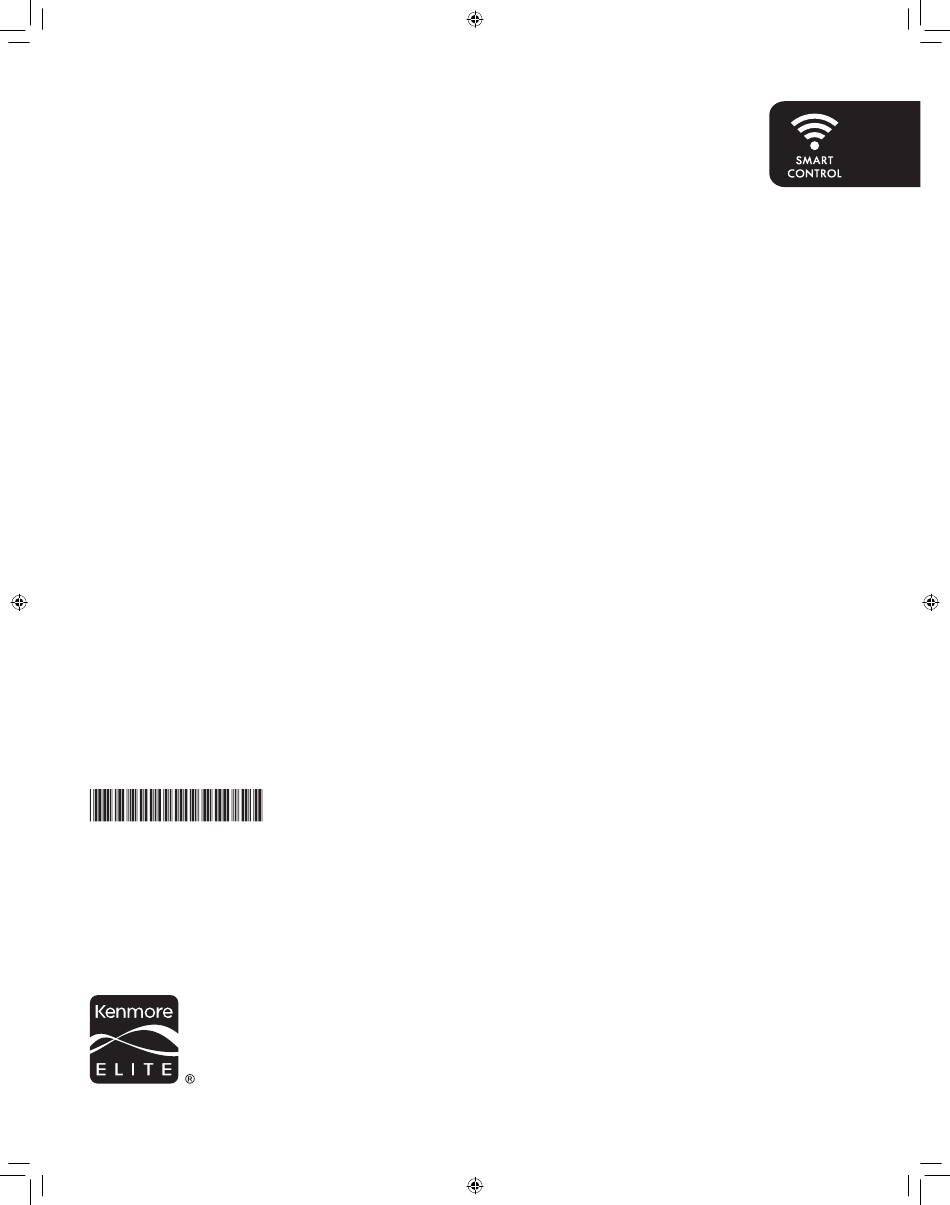

  • Page 1 Use & Care Guide Manual de Uso y Cuidado Kenmore Elite ® Bottom Freezer Refrigerator Congelador Inferior Refrigerador Model/Modelo: 795.7507# - PreView Grab-N-Go Model/Modelo: 795.7506# - Standard Door Model/Modelo: 795.7440# - Standard Door = color number, número de color MFL69497030_Rev.00 Transform SR Brands Management LLC Hoffman Estates, IL 60179 U.S.A.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS ► Freezer Section Warranty .............. 3 Product Record ..........4 Freezer Ice Bin ..........32 Important Safety Instructions ....5-7 Pullout Drawer ..........33 Electrical & Grounding Requirements ..7 Durabase ............33 Parts and Features ........8-9 Durabase Divider ........

  • Page 3: Warranty

    Defects must be verified by a Sears authorized service representative. For warranty coverage details to obtain free repair or replacement, visit the web page: www.kenmore.com/warranty this warranty covers OnLy defects in material and workmanship, and will nOt pay for: 1.

  • Page 4: Product Record

    PRODUCT RECORD In the space below, record the date of purchase, model and serial number of your product. You will find the model and serial number printed on an identification label located on the interior liner of the refrigerator compartment. Have these items of information available whenever you contact Sears concerning your product.

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETy INSTRUCTIONS BASIC SAFETy PRECAUTIONS This guide contains many important safety messages. Always read and obey all safety messages. This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product.
  • Page 6 WARNING • Before replacing a burned-out or broken light bulb, • DO NOT refreeze frozen foods which have thawed unplug the refrigerator or turn off power at the circuit completely. The United States Department of breaker or fuse box in order to avoid contact with a Agriculture in Home and Garden Bulletin No.

  • Page 7: Electrical & Grounding Requirements

    CFC/HCFC DISPOSAL Your old refrigerator may have a cooling system If you are throwing away your old refrigerator, make that used CFCs or HCFCs (chlorofluorocarbons or sure the refrigerant is removed for proper disposal hydrochlorofluorocarbons). CFCs and HCFCs are by a qualified technician. If you intentionally release believed to harm stratospheric ozone if released to the refrigerant, you may be subject to fines and imprisonment atmosphere.

  • Page 8: Parts And Features

    PARTS AND FEATURES • Standard Door • PreView Grab-N-Go...

  • Page 9: Parts And Features

    PARTS AND FEATURES Use this page to become more familiar with the parts and features of your refrigerator. NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all of the items listed below. The locations of the features shown below may not match your model. LED lighting Diagnostics Speaker Ice Bin...

  • Page 10: Refrigerator Installation

    REFRIGERATOR INSTALLATION WARNING WARNING Excessive Weight Hazard: Excessive Weight Hazard: Use two or more people to move and install the Your refrigerator is heavy. When moving the refrigerator. Failure to do so can result in back or refrigerator for cleaning or service, be sure to protect other injury.

  • Page 11: Installation

    REFRIGERATOR INSTALLATION PRIOR TO USE INSTALLATION (continued) 1. Clean your refrigerator thoroughly and wipe off all 1. To avoid noise and vibration, the unit must be dust that accumulated during shipping. leveled and installed on a solidly constructed floor. If required, adjust the leveling legs to compensate for unevenness of the floor.

  • Page 12: Removing/Replacing Your Refrigerator And Freezer Handles, Doors And Drawers

    REFRIGERATOR INSTALLATION NOTE: Removing the doors is always recommended when it is necessary to move the refrigerator through a narrow opening. If it is necessary to remove the handles, follow the directions below. HOW TO REMOVE REFRIGERATOR DOOR HANDLE Mounting Fasteners NOTE: Handle appearance may vary from the illustrations on this page.
  • Page 13 REFRIGERATOR INSTALLATION NOTE: Removing the doors is always recommended when it is necessary to move the refrigerator through a narrow opening. If it is necessary to remove the handles, follow the directions below. HOW TO REMOVE FREEZER DOOR HANDLE NOTE: Handle appearance may vary from the illustrations on this page.
  • Page 14 REFRIGERATOR INSTALLATION REMOVING AND REPLACING 2. Pull out the tube (2). Disconnect all wire harnesses (3). REFRIGERATOR DOORS Unscrew the ground wire (4). WARNING Excessive Weight Hazard: Use two or more people to remove and install the refrigerator doors. Failure to do so can result in back or other injury.
  • Page 15 REFRIGERATOR INSTALLATION Removing the Right Door Replacing the Right Door Install the right-side door first. 1. Detach all the wire harnesses (1). 1. Make sure that the plastic sleeve is inserted in the bottom of the door. Install the refrigerator door onto the middle hinge.
  • Page 16 REFRIGERATOR INSTALLATION Replacing the Left Door 5. Hold the water supply connection and gently push in the collect (4) to connect the water supply line as Install the left refrigerator door after the right door shown. Insert the tube at least ⅝ in. (15 mm) into the installed.
  • Page 17 REFRIGERATOR INSTALLATION HOW TO REMOVE THE FREEZER DRAWER HOW TO INSTALL THE FREEZER DRAWER WARNING: Use two or more people to remove and Pull out each rail to full extension. install the freezer drawer. Failure to do so can result in back or other injury.

  • Page 18: Leveling And Door Alignment

    REFRIGERATOR INSTALLATION LEVELING AND DOOR ALIGNMENT Door Alignment The left refrigerator door has an adjustable nut, located Leveling on the bottom hinge, to raise and lower the door for After installing, plug the refrigerator’s power cord into a proper alignment. 3-prong grounded outlet and push the refrigerator into If the space between your doors is uneven, follow the the final position.

  • Page 19: Using Your Refrigerator

    USING yOUR REFRIGERATOR SETTING THE CONTROLS Temperature • The Refrigerator Temp Control ranges from 33°F to NOTE: When changing control settings, wait 24 hours 43°F (1°C to 7°C). Press the refrigerator temp button before making additional adjustments. The controls are to cycle through the available temperature settings one set correctly when milk or juice is as cold as you would increment at a time.
  • Page 20 USING yOUR REFRIGERATOR Air Filter Control Lock • When power is initially connected to the refrigerator, The Air Filter helps remove odors from the refrigerator. the Lock function is off. The Air Filter will cycle on and off in increments of ten minutes on and 110 minutes off.

  • Page 21: Smart Features

    Notifies the user that the appliance is connected to the Kenmore Smart connectivity transforms your relationship internet. with your home. You can personalize the way Kenmore Smart products operate based on your schedule and daily routines, making life easier and providing greater peace Smart Grid LED (white): of mind.

  • Page 22: Instructions For Smart Grid

    Demand Response (DR), will adjust refrigerator operation to reduce power consumption for You must connect your Kenmore Smart appliance to the a period of time ranging from a few minutes up to a internet and then register the appliance to your account maximum of 4 hours.

  • Page 23: Fcc Notice

    To obtain the source code that is contained in this product under LGPL and other open source licenses, visit http:// kenmore.com/opensource. In addition to the source code, all referred license terms, warranty disclaimers, and copyright notices are available for download.

  • Page 24: In-Door Ice Bin

    USING yOUR REFRIGERATOR IN-DOOR ICE BIN 2. To remove the in-door ice bin, grip the front handle, slightly lift the lower part, and slowly pull out the bin CAUTION: as shown. Keep hands and tools out of the ice compartment door and dispenser chute.

  • Page 25: In-Door Icemaker

    USING yOUR REFRIGERATOR IN-DOOR ICEMAKER FREEZER ICEMAKER Ice is made in the automatic icemaker and sent to the • This automatic freezer icemaker produces 12 cubes dispenser. The icemaker will produce 70-182 cubes in at a time, 50-110 pieces within a 24 hour period a 24-hour period, depending on freezer compartment if conditions are favorable.
  • Page 26 USING yOUR REFRIGERATOR ICEMAKER (continued) WHEN yOU SHOULD SET THE ICEMAKER ON/OFF BUTTON TO OFF CAUTION • When the water supply will be shut off for several • The first ice and water dispensed may include particles hours. or odor from the water supply line or the water tank. •...

  • Page 27: Food Storage Guide

    USING yOUR REFRIGERATOR FOOD STORAGE GUIDE STORING FROZEN FOOD NOTE: Check a freezer guide or a reliable cookbook for Wrap or store food in the refrigerator in airtight and moisture-proof material unless otherwise noted. This further information about preparing food for freezing or prevents food odor and taste transfer throughout the food storage times.

  • Page 28: Refrigerator Section

    USING yOUR REFRIGERATOR REFRIGERATOR SECTION WARNING: Do not put your fingers up the ice chute opening. Doing so can result in severe injury. WATER DISPENSER CAUTION: Do not dispense ice into fine china or To dispense cold water, push on the dispenser switch with crystal glasses.

  • Page 29: Refrigerator Shelves

    USING yOUR REFRIGERATOR REFRIGERATOR SHELVES To reinstall a shelf—Tilt the front of the shelf up and guide the shelf hooks into the slots at a desired height. The shelves in your refrigerator are adjustable to meet Then, lower the front of the shelf so that the hooks your individual storage needs.

  • Page 30: Humidity Controlled Crisper

    USING yOUR REFRIGERATOR HUMIDITy CONTROLLED CRISPER TEMPERATURE CONTROLLED PANTRy DRAWER The crispers provide fresher tasting fruit and vegetables The Temperature Controlled Pantry Drawer provides by letting you easily control humidity inside the drawer. storage space with a variable temperature control that can keep the compartment at a slightly different You can control the amount of humidity in the moisture- temperature than the refrigerator section.

  • Page 31: Preview Grab-N-Go

    USING yOUR REFRIGERATOR PREVIEW GRAB-N-GO GRAB-N-GO CASE (On some models) (On some models) To open the Grab-N-Go case, slightly push the marked The PreView Grab-N-Go area to pop it open. The Grab-N-Go Case is removable compartment allows for easy access for easy cleaning and adjustment.

  • Page 32: Replacing The Air Filter

    CAUTION: Pinch hazard! Keep hands and feet clear NOTE: To purchase a replacement air filter, visit your of the bottom of the freezer drawer when opening and local Sears store, or call 1-844-553-6667. closing. You may also purchase online at www.kenmore.com...

  • Page 33: Pullout Drawer

    USING yOUR REFRIGERATOR PULLOUT DRAWERS 2. To replace, slightly tilt up the front of the drawer, insert the drawer into the frame, and push it back into Top Drawer place. 1. To remove, pull the drawer out to full extension. On the left rail, use a flat blade screwdriver to push in on the tab to release the drawer from the rail, as shown below.

  • Page 34: Water Filter

    CAUTION: Operating the refrigerator with a water filter is recommended. However, no bypass filter plug is necessary if there is no water filter installed. NOTE: To purchase a replacement filter, visit your local Sears store, or call 1-844-553-6667. You may also purchase online at www.kenmore.com...
  • Page 35 WATER FILTER Performance Data Sheet Use Replacement Cartridge: MDJ64844602(9980) The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specified in NSF/ANSI Standard 42 and Standard 53 and Standard 401.
  • Page 36 Sears store, or call 1-844-553-6667. • Read and follow the Water Filter instructions before You may also purchase online at www.kenmore.com installation and use of this system. • Installation and use MUST comply with all state and Product distributed in the United States by Transform local plumbing codes.

  • Page 37: Water Filter

    WATER FILTER State of California Department of Public Health Water Treatment Device Certificate Number 09 - 2019 Date Issued: December 15, 2009 Manufacturer: Sears Roebuck and Co. The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section 116830 of the Health and Safety Code for the following health related contaminants: Microbiological Contaminants and Turbidity Inorganic/Radiological Contaminants...

  • Page 38: Care And Cleaning

    CARE AND CLEANING INSIDE WALLS (allow freezer to warm up so WARNING the cloth will not stick) To help remove odors, you can wash the inside of the refrigerator with a mixture of baking soda and warm water. Mix 2 tablespoons of baking soda to 1 quart of water (26 g soda to 1 liter water.) Be sure the baking soda is completely dissolved so it does not scratch the surfaces of the refrigerator.

  • Page 39: Light Bulb Replacement

    CARE AND CLEANING LIGHT BULB REPLACEMENT WHEN yOU MOVE When you are moving your refrigerator to a new home, WARNING follow these steps to prepare it for the move. 1. Remove all food from the refrigerator and pack all Electrical Shock Hazard frozen food in dry ice.

  • Page 40: Connecting The Water Line

    CONNECTING THE WATER LINE BEFORE yOU BEGIN WHAT yOU WILL NEED • Copper Tubing, ¼ in. outer This water line installation is not covered by the refrigerator warranty. Follow these instructions carefully to diameter, to connect the refrigerator minimize the risk of expensive water damage. to the water supply.
  • Page 41 CONNECTING THE WATER LINE INSTALLATION INSTRUCTIONS 5. TIGHTEN THE PIPE CLAMP Tighten the clamp screws until the sealing washer Install the shutoff valve on the nearest frequently used begins to swell. drinking water line. NOTE: Do not overtighten clamp or you may crush the 1.
  • Page 42 CONNECTING THE WATER LINE 8. FLUSH OUT THE TUBING 10. TURN THE WATER ON AT THE SHUTOFF VALVE Turn the main water supply on and Tighten any connections that leak. flush out the tubing until the water is clear. Shut the water off at the water valve after about one quart of water has been flushed through the tubing.

  • Page 43: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Before conducting troubleshooting, make sure that the following basic requirements are met: Service Flow 0.5 gpm (1.9 lpm) Water Supply Potable Water Water Pressure 20-120 psi (138 - 827 kPa) Operating Ambient 55°F - 110°F Temperature Limits 115 Volts, 60 Hz, AC only, and fused Electrical Ratings at 15 or 20 amperes.
  • Page 44 TROUBLESHOOTING GUIDE COOLING Problem Possible Causes Solutions Refrigerator or Refrigerator was recently installed. It may take up to 24 hours for each compartment to Freezer section is too reach the desired temperature. warm. Air vents are blocked. Rearrange items to allow air to flow throughout the compartment.
  • Page 45 TROUBLESHOOTING GUIDE COOLING/ICE & WATER Problem Possible Causes Solutions Food is freezing Food with high water content was Rearrange items with high water content away from air in the refrigerator placed near an air vent. vents. compartment. Refrigerator temperature control is set If the temperature is too cold, adjust the control one incorrectly.
  • Page 46 TROUBLESHOOTING GUIDE ICE & WATER Problem Possible Causes Solutions Icemaker is not Doors are opened often or for long If the doors of the unit are opened often, ambient making enough ice periods of time. air will warm the refrigerator which will prevent the (continued).
  • Page 47 TROUBLESHOOTING GUIDE ICE & WATER Problem Possible Causes Solutions Icemaker is not Refrigerator was recently installed or It may take up to 24 hours for each compartment to making ice. icemaker recently connected. reach the desired temperature and for the icemaker to begin making ice.
  • Page 48 TROUBLESHOOTING GUIDE ICE & WATER Problem Possible Causes Solutions Ice has bad taste or Water supply contains minerals such A water filter may need to be installed to eliminate odor. as sulfur. taste and odor problems. NOTE: In some cases, a filter may not help. It may not be possible to remove all minerals / odor / taste in all water supplies.
  • Page 49 TROUBLESHOOTING GUIDE NOISE Problem Possible Causes Solutions Clicking The defrost control will click when Normal Operation the automatic defrost cycle begins and ends. The thermostat control (or refrigerator control on some models) will also click when cycling on and off. Rattling Rattling noises may come from the Normal Operation...

  • Page 50: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PARTS & FEATURES Problem Possible Causes Solutions Doors will not close Food packages are blocking the door Rearrange food containers to clear the door and door correctly or pop open. shelves. open. Ice bin, crisper cover, pans, shelves, Push bins all the way in and put crisper cover, pans, door bins, or baskets are out of shelves and baskets into their correct positions.
