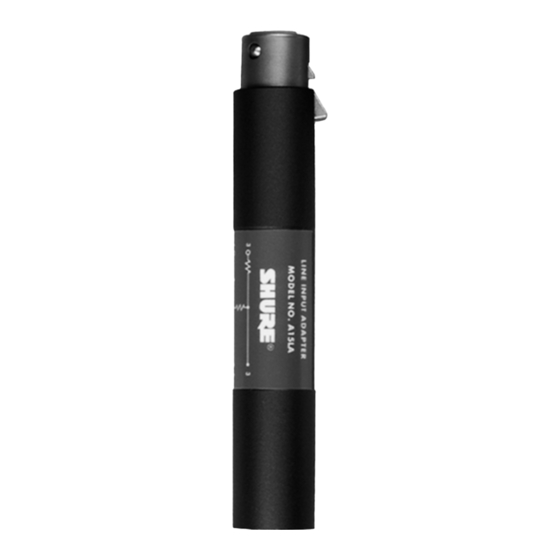

MODEL A15LA LINE INPUT ADAPTER
The A15LA is a 50 dB attenuator. Use the A15LA to connect a
line-level or aux-level signal from devices such as mixers, tape
recorders, and CD players.
The A15LA input can be connected to either a balanced output or an
unbalanced output. If the output is unbalanced, connect the audio "hot"
lead to pin 2 of the A15LA and connect the audio ground lead to pin 1 of
the A15LA. Make no connection to pin 3 of the A15LA. Refer to Figure 1.
©2003, Shure Incorporated
27B1918 (Rev. 3)
3
1
2

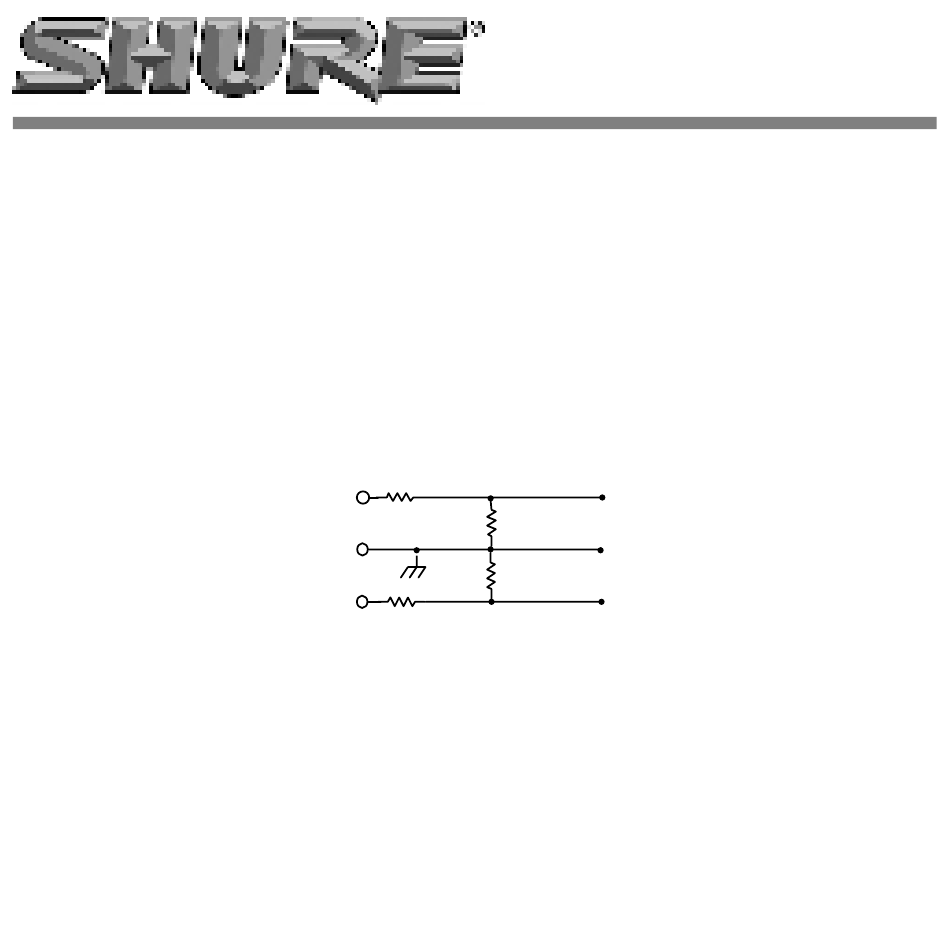

A15LA WIRING DIAGRAM
FIGURE 1
Model A15LA
User Guide
3
1
2
Printed in U.S.A.
Advertisement
Related Manuals for Shure A15LA
Summary of Contents for Shure A15LA
- Page 1 If the output is unbalanced, connect the audio “hot” lead to pin 2 of the A15LA and connect the audio ground lead to pin 1 of the A15LA. Make no connection to pin 3 of the A15LA. Refer to Figure 1.
- Page 2 SPECIFICATIONS Frequency Response 20 to 20,000 Hz ± 0.5 dB Impedance Input: 100 kW Output: 300 W Attenuation 50 dB Maximum Input Signal Level 40 dBV Connectors Input: 3-socket female XLR Ouput: 3-pin male XLR CASE Full magnetic shield, steel with gray enamel finish DIMENSIONS 19 mm (3/4 in.) diameter;...
- Page 3 At its option Shure will repair or replace the defective product and promptly re- turn it to you, or refund the purchase price. You should retain proof of purchase to validate the purchase date and return it with any war- ranty claim.
- Page 4 This warranty does not apply in cases of abuse or misuse of the product, use contrary to Shure's instruction, ordinary wear and tear, an act of God or unauthorized repair. All implied WARRANTIES OF MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE...
