PSC 941 Yagi Antenna
• Frequency Range of 940Mhz to 960 Mhz...PSC Exclusive Feature
• Works as a Passive High Gain Antenna
• Excellent RF Performance
• Approximately 9 dBd Gain
• Weather Resistant Design
• BNC Output Connector
• Competitively priced, and Made in the U.S.A

Advertisement

loading

Related Manuals for PSC PSC 941 Yagi Antenna

Summary of Contents for PSC PSC 941 Yagi Antenna

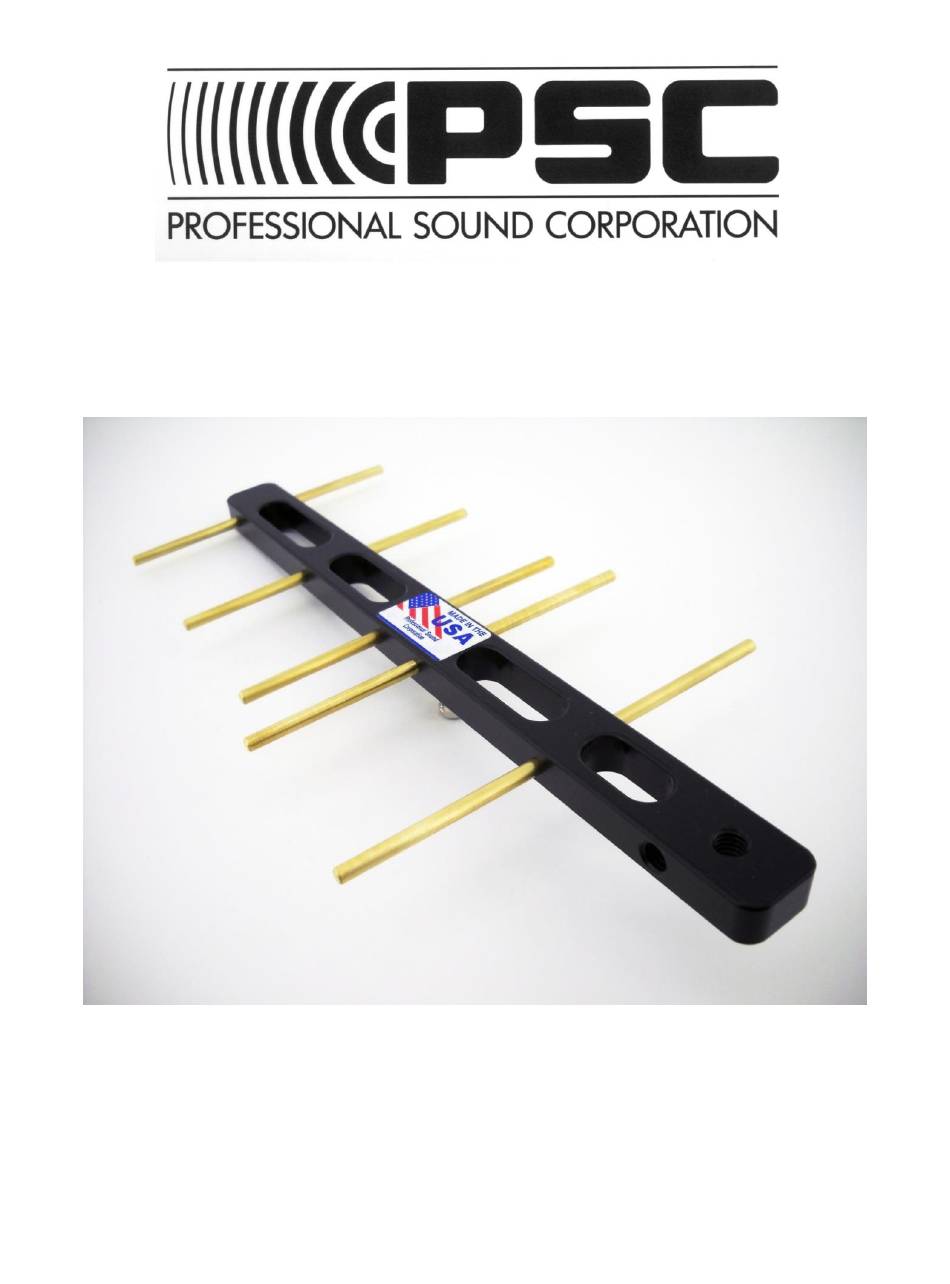

  • Page 1 PSC 941 Yagi Antenna • Frequency Range of 940Mhz to 960 Mhz…PSC Exclusive Feature • Works as a Passive High Gain Antenna • Excellent RF Performance • Approximately 9 dBd Gain • Weather Resistant Design • BNC Output Connector • Competitively priced, and Made in the U.S.A...
  • Page 2 Introduction: Thank you for purchasing the Professional Sound Corporation 941 Yagi Antenna. This new antenna is the result of our desire to provide you with a high quality, great performing 941 Block antenna at a reasonable price point.
  • Page 3 Safety Warnings: The PSC 941 Yagi Antenna has been designed to be inherently safe to use. The design complies with all current safety, environmental and RF emission regulations. The safe use of this product is determined primarily by the user. Please read and understand this entire user’s manual before using your new PSC 941 Yagi Antenna.
  • Page 4 This PSC 941 Yagi antenna uses a standard 50 Ohm BNC connector: Antenna Placement and Polarization: Your new PSC 941 Yagi Antenna should be mounted up and away from all of your other sound equipment. The antenna should be pointed toward the actor worn transmitters. Typically, we advise that you place the antenna up at least 6 to 10 feet (2-3 meters) above your sound cart for best performance.
  • Page 5 The antenna can be mounted using an industry standard 3/8”-16TPI threaded base. This photo shows the 3/8-16 TPI mounting threads. This Photo shows Vertical Polarization of the antenna. Use this mounting polarization for most applications.
  • Page 6 This photo shows Horizontal Polarization of the antenna. This mounting position is used when the transmitter’s antenna is also mounted horizontally.

  • Page 7: Rohs Certificate Of Compliance

    RoHS Certificate of Compliance Professional Sound Corporation certifies that all products designated by Professional Sound Corporation as “PB-Free”, “RoHS Compliant” or “Green” are compliant with the requirements of the European Union’s Restriction on Use of Hazardous Substances (“RoHS”) Directive, 2002/95/EC. Professional Sound Corporation bases its material content knowledge on information provided by third parties, including parts manufacturers, distributors and vendors.

  • Page 8: Declaration Of Conformity

    DECLARATION OF CONFORMITY STANDARD : EN 55032.2012 Part 1, Emissions EN55032.2012 Part 2, Immunity TRADE NAME: MODEL: PSC 941 Yagi Antenna RESPONSIBLE PARTY: Professional Sound Corp. 28085 Smyth Drive Valencia, CA 91355 USA CONTACT PERSON: Ronald Meyer (661) 295-9395 TYPE OF PRODUCT:...

  • Page 9: Specifications

    Specifications subject to change without notice. Copyright 2019 PSC All technologies employed in the design and manufacturing of the PSC 941 Yagi Antenna remain the proprietary property of Professional Sound Corp. All Rights Reserved Professional Sound Corporation, 28085 Smyth Drive, Valencia, CA 91355...
