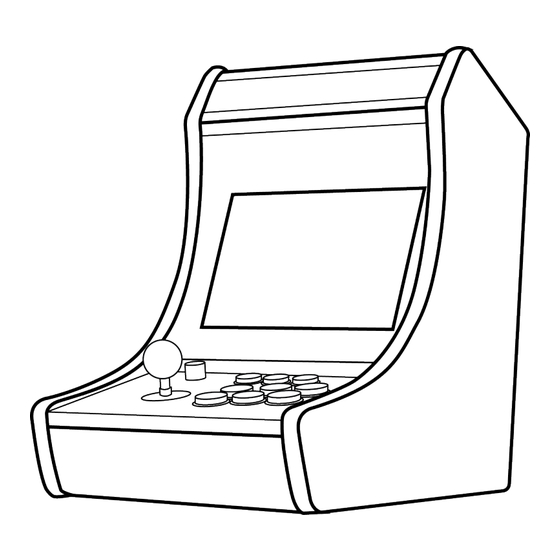

- Page 1 USER MANUAL Pocket Arcade With more than 600 timeless games ! PREMIUM ARCADE MACHINES...
-
Page 2: Table Of Contents
Table of contents Presentation Getting started Navigation Miscellaneous settings Technical specifications Maintenance and safety warnings Warranty service... -
Page 3: Presentation
About the user manual Congratulations on your purchase of the Neo Legend system ! Your Pocket Arcade is equipped with the ARKADOR system with more than 680 games. The following advice will help you get the most out of your arcade game for years to come. -
Page 4: Getting Started
Mise en route • Plug the power cable provided at the back of the console. Then, press the switch key to make the console start. -
Page 5: Navigation
Navigation • Once the introduction video is finished, the game selection screen will show : • Using the PLAYER 1 controller, choose a game with the directions You can access previous or next pages with the directions COINS START J1 START J2 JOYSTICK BUTTON A... - Page 6 • Press on CREDIT/COIN to credit the game (except when the Freeplay mode is active) • Select the game of your choice with button A(1) of PLAYER 1. • Press PLAYER 1 START to start the game. • You can put more credit onto the machine at any point during the game by pressing CREDIT/COIN.
-
Page 7: Miscellaneous Settings
Miscellaneous settings Sound adjustment You can adjust the volume using the external control knob located at the top left of the panel. VOLUME Setting calibration By pressing the SYSTEM SETUP button at the back of the Pocket©, you access the system settings of the game card. - Page 8 IO TEST : This option allows you to test card connections ( credit, joystick, buttons ). Before the test, the function will appear bright blue. After the test, it will be highlighted in red. Whilst pressing button A(1), the function will appear in yellow.
- Page 9 CHANGE COINS SET : Press A(1) button to change the way in which credits are handled. Example : 1:1 (one coin gives one credit) or 2:1 (two coins give one credit, etc). EXIT GAME MODE : Press on B(2) button to change the way of exiting the game.
- Page 10 • Difficulty & Lifes : Press A(1) to enter the settings screen for the difficuly and the number of lives.
- Page 11 Use the joystick to select the game settings for which you want edit. - Press A(1) of PLAYER 1 to change the difficulty level. - Press B(2) to change the number of lives (Warning, not all games benefit from this option) - Press C(3) to apply the parameters of the current game to all the games on the card.
- Page 12 BOOK KEEPING : The games card can save the number of credits (coins) used, the total being shown on the top right of the menu «BOOK KEEPING». If you wish to reset de credit (coins) counter, you must enter the password in the boxes on the left.
- Page 13 SAVE SETTINGS & REBOOT : Press A(1) to save the parameters to see bring up the following screen. FACTORY SETTINGS & REBOOT : Press A(1) to reset the factory settings on the card.
-
Page 14: Technical Specifications
Technical Specifications Pro monitor « wideview » 8 Watts White Neon Ligh 3400K • • 178° viewing angle. ON/OFF switch with fuse protection • 10 inches ( 25 cm diagonally ) – « safe protect » • Format 16/10 240 volts, voltage on demand •... - Page 15 6 Sanwa Denshi, 30 mm. 1 Sanwa Denshi credit button, 24 mm. • • 1 million clicks guaranteed. 1 million clicks guaranteed. 1 joystick SEIMITSU LS 32, 8 directions. 2 Sanwa Denshi Start button, 24 mm. • • 1 million de clicks guaranteed. 1 Sanwa Denshi balltop, 35 mm.
-
Page 16: Maintenance And Safety Warnings
EMF at the time of manufacture of the products. CE Mark With this document, Neo Legend declares that the equipment conforms to the essential norms, and to the other dispositions pertaining to directive 1999/5/CE. - Page 17 Service and maintenance For all questions relating to the function of your console, contact your reseller or Neo Legend at the following email : sav@neo-legend.com or on +33 (0)1 44 63 06 23. Warning : Photosensivity / Epilepsy seizures A very small percentage of individuals may experience epileptic seizures or blackouts when exposed to certain light patterns or flashing lights.
-
Page 18: Warranty Service
Neo Legend is in no way responsible for the return of peripherals that are contained with the returned product. Neo Legend is in no way responsible for the loss of personal data or damage caused to removable personal stands. - Page 19 PREMIUM ARCADE MACHINES DESIGNED AND HANDCRAFTED IN FRANCE BY NEO LEGEND 71 RUE CROZATIER - 75012 PARIS +33 (0) 1 44 63 06 23 WWW.NEO-LEGEND.COM...
