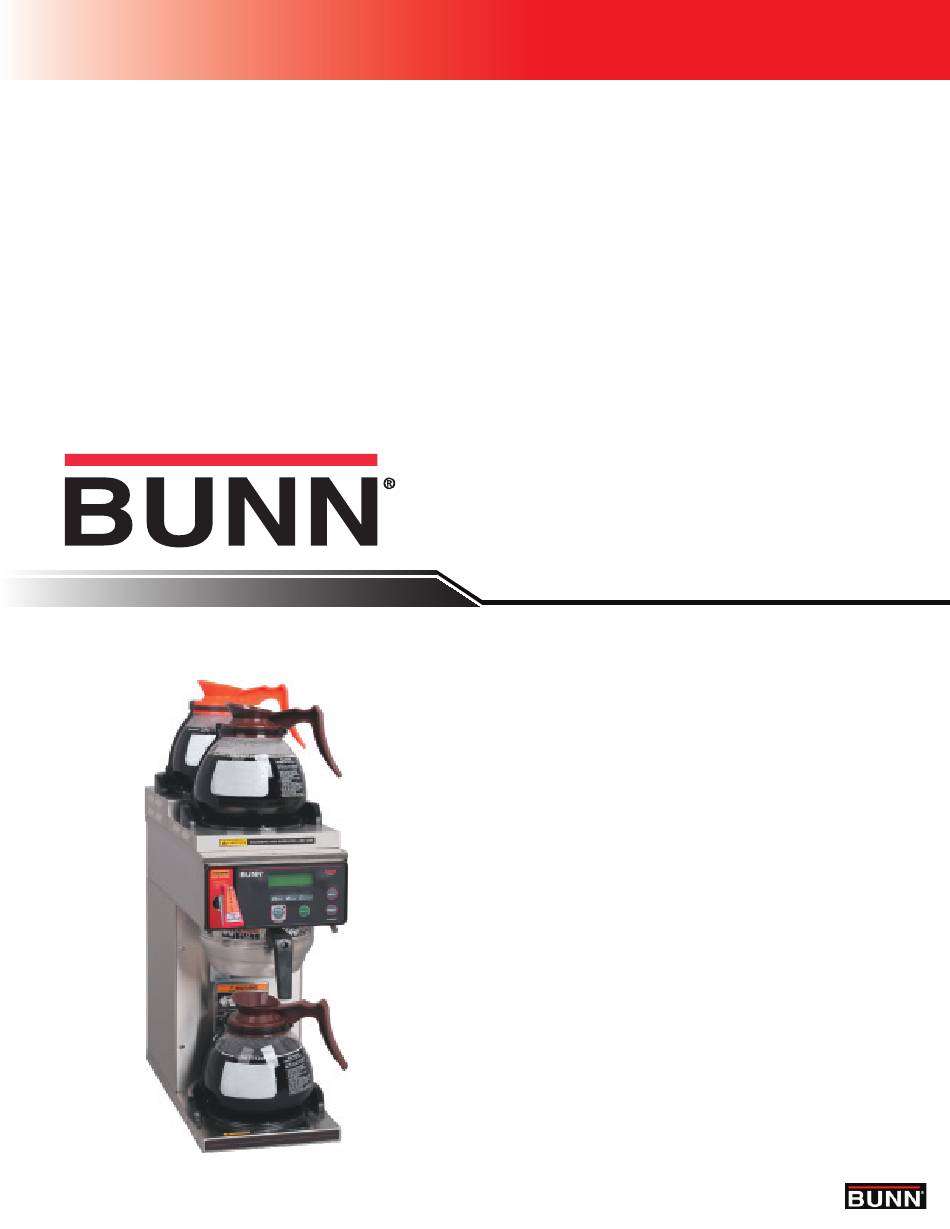

- Page 1 AXIOM ® Technical Training RFID Technology...
- Page 2 Given a realistic scenario in which the learner has access to the machine’s internal components, the learner will understand the composition and functions of the RFID system within an AXIOM brewer. The learner will be able to discuss the similairities and differences between a standard AXIOM and an AXIOM equipped with RFID.
- Page 3 Glass Carafe Fresh Hours - 0.5 (30 minutes) • Thermal Carafe Fresh Hours - 2.0 (2 hours) The Axiom RFID software will include an entire set of adjustment and service menus that are logically located sepa- rate from the BUNN standard programming menus. Left Access Programming The service and adjustment menus are located by depressing the left hidden button.
- Page 4 To access to the standard Axiom programming menus, depress the right hidden button in the same manner as the original Axiom brewer. Although the menu screens are the same, they are arranged in a different order than the original Axiom brewer.
- Page 5 Brew”, “Water Temp 200°” screen. Note: You do have the capability to view the freshness time remaining message or expired message when you depress and hold the warmer on/off button on warmers except for the main warmer. Bunn-O-Matic Corporation...
- Page 6 Off: another option for disabling the beeper. Select “Yes” to set the date and time. Press “+” or “-” to adjust the year. Press “+” or “-” to adjust the month. Press “+” or “-” to adjust the day AXIOM RFID Training ®...
- Page 7 The red color means that the freshness time has expired and the warmer element is about to turn off automatically. Note: When the “Freshness Expired” message or the flashing red LED appears, the warmer will turn off automatically after five minutes. Bunn-O-Matic Corporation...
- Page 8 The menu option is “Freq&AdjustCaps”. Beeper Beeper The Axiom brewer with RFID utilizes a beeper along with the freshness indicator LED sequence. Two beeper alarms are represented within the operation of the unit with the capability of adjusting the volume and activation of the audible alarms.
- Page 9 RFID sensor is approximately .3/4 inches. The collar and strap with transponder can be replaced as a complete kit (Bunn PN: 42930.1000) on the glass carafe. See instruction sheet 43520.0000. RFID Thermal Carafe The thermal carafe has an attached RFID transponder holder adhered to the side wall of the stainless housing.
