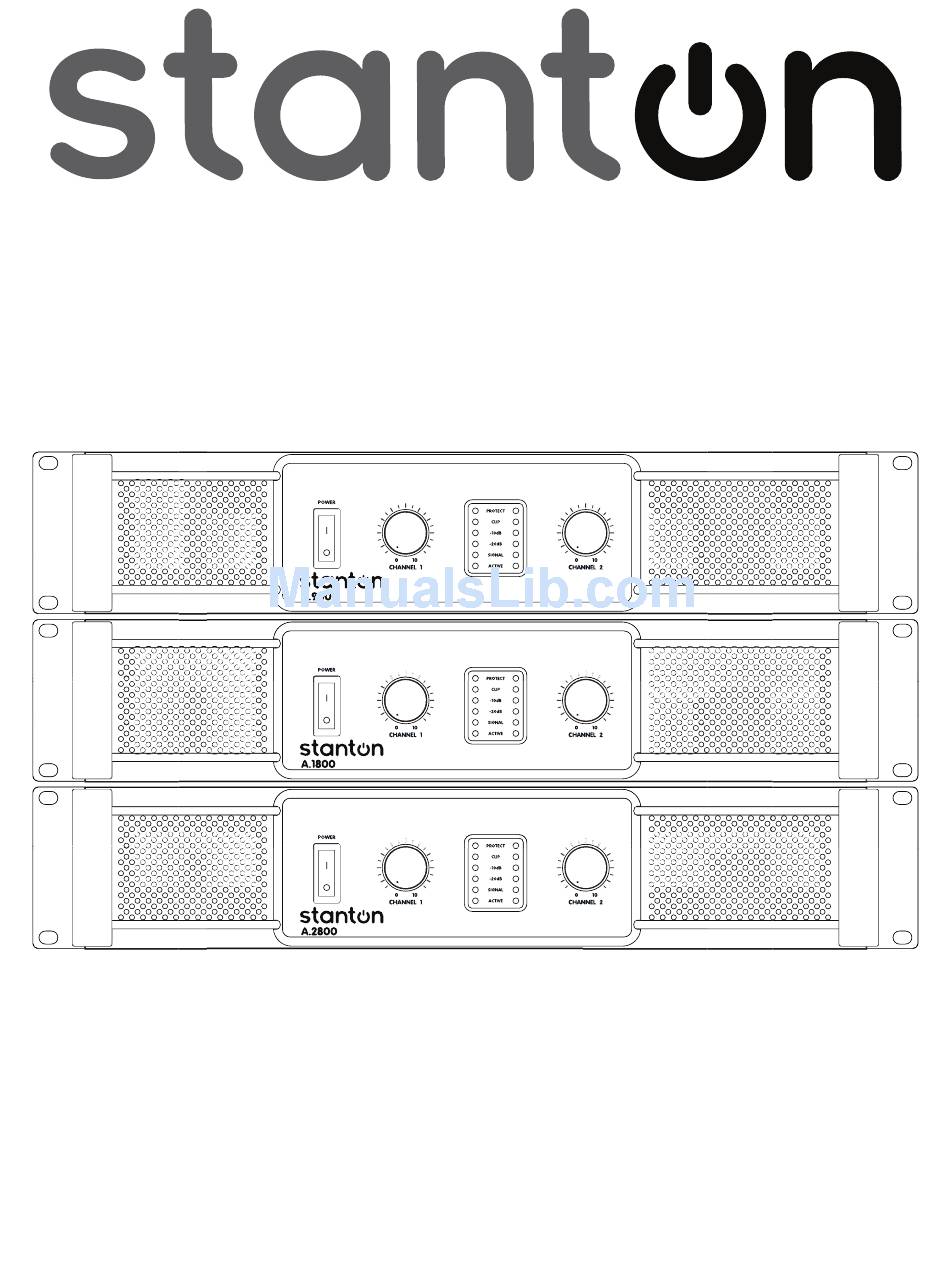

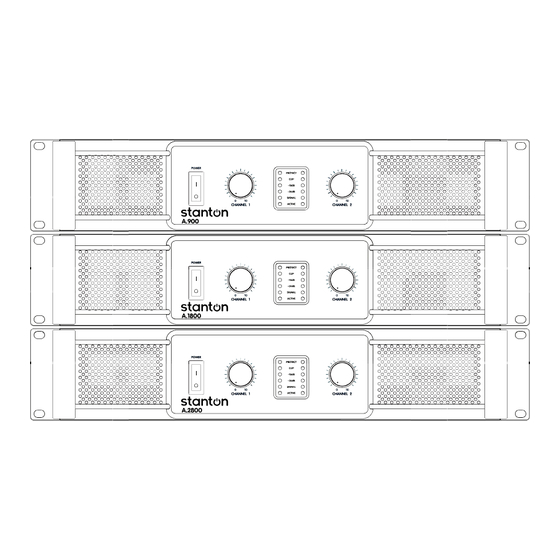

- Page 1 A.900 / A.1800 / A.2800 HEAVY DUTY PROFESSIONAL AMPLIFIERS USER MANUAL...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read Instructions – All the safety and operating instructions should be read before this product is operated. 2. Retain Instructions – The safety and operating instructions should be retained for future reference. 3. Heed Warnings – All warnings on the appliance and in the operating instructions should be adhered to. -
Page 3: Unpacking And Installation
• A.900 - 2 x 210 Watts at 8 ohm, 2 x 320 Watts at 4 ohm and 2 x 420 Watts at 2 ohm • A.1800 - 2 x 400 Watts at 8 ohm, 2 x 600 Watts at 4 ohm and 2 x 900 Watts at 2 ohm •... -
Page 4: Front Panel Controls
FRONT PANEL CONTROLS 1. Rack Ears These ears are used to mount the amplifier in any standard 19” rack. 2. Fan Vent The A-Series amplifiers are cooled by two rear-mounted fans (except for A.900 which is cooled by a single rear mounted fan). Cool air flows through the front fan filters, reducing the tempera- ture internal components while forcing the heat out the rear vents. -
Page 5: Rear Panel Controls
REAR PANEL CONTROLS 1. Fan This is a variable speed cooling fan. Cool air enters the amplifier through the fan filters located on the front of the amplifier. Be sure not to block these ports when installing the amplifier or other equipment. - Page 6 PROTECTION Every model in the A-Series incorporates protection features. The front panel Protection LED indicates the activity of the relay speaker connection circuitry in each channel. When the protection LED turns on, this circuitry is active, and all connected speakers are muted. Initial power-up : For approximately five seconds after initial power-up, the protection circuitry is activated and the speaker outputs are muted.
- Page 7 SETUP Mode Select Stereo Mode In stereo mode, both channels operate independently with individ- ual input gain controls. Signal at channel 1’s input produces out- put at channel 1, while signal at channel 2’s input produces out- put at channel 2’s output. Recommended minimum nominal load impedance for stereo operation is 2 ohms per channel.
- Page 8 CONNECTIONS Stereo Mode SPK+ to PIN 1+ SPK- to PIN 1- SPK+ to PIN 1+ SPK- to PIN 1- Parallel Mode SPK+ to PIN 1+ SPK- to PIN 1- SPK+ to PIN 1+ SPK- to PIN 1- Bridged Mono Mode SPK+ to PIN 1+ SPK- to PIN 2- SPK+ to PIN 1+...
- Page 9 WIRING These are several ways to interface the amplifier to support a variety of applications. Unbalanced 1/4” Connector Unbalanced 1/4” Connector Balanced TRS 1/4” Connector XLR Balanced Wiring Guide...
-
Page 10: Specifications
Output Control Front Rear Indicators Protection Power requirements Dimensions (W _ H _ D) Net Weight A.900 A.1800 Stereo Both Channel Driven 210 W 400 W 320 W 600 W 420 W 900 W Bridged Mono 650 W 1200 W... - Page 11 SPEAKER COMPATIBILITY The A Series of amplifiers are designed to work with many different speakers on the market. They have been paired with the following Cerwin-Vega speakers. The following compatibility matrix can be used as a reference. (See: www.cerwin-vega.com for product specs.)
-
Page 12: Warranty And Return Policy
Stanton dealer’s return policy. Stanton assumes no risk and shall be subject to no liability for damages or loss resulting from the specific use or application made of the merchandise. Stanton’s liability for any claim, whether based on breach of contract, negligence, infringement of any rights of any party, or product liability, and relating to the merchandise shall not exceed the price received by Stanton from your purchase of such merchan- dise. - Page 13 NOTES...
