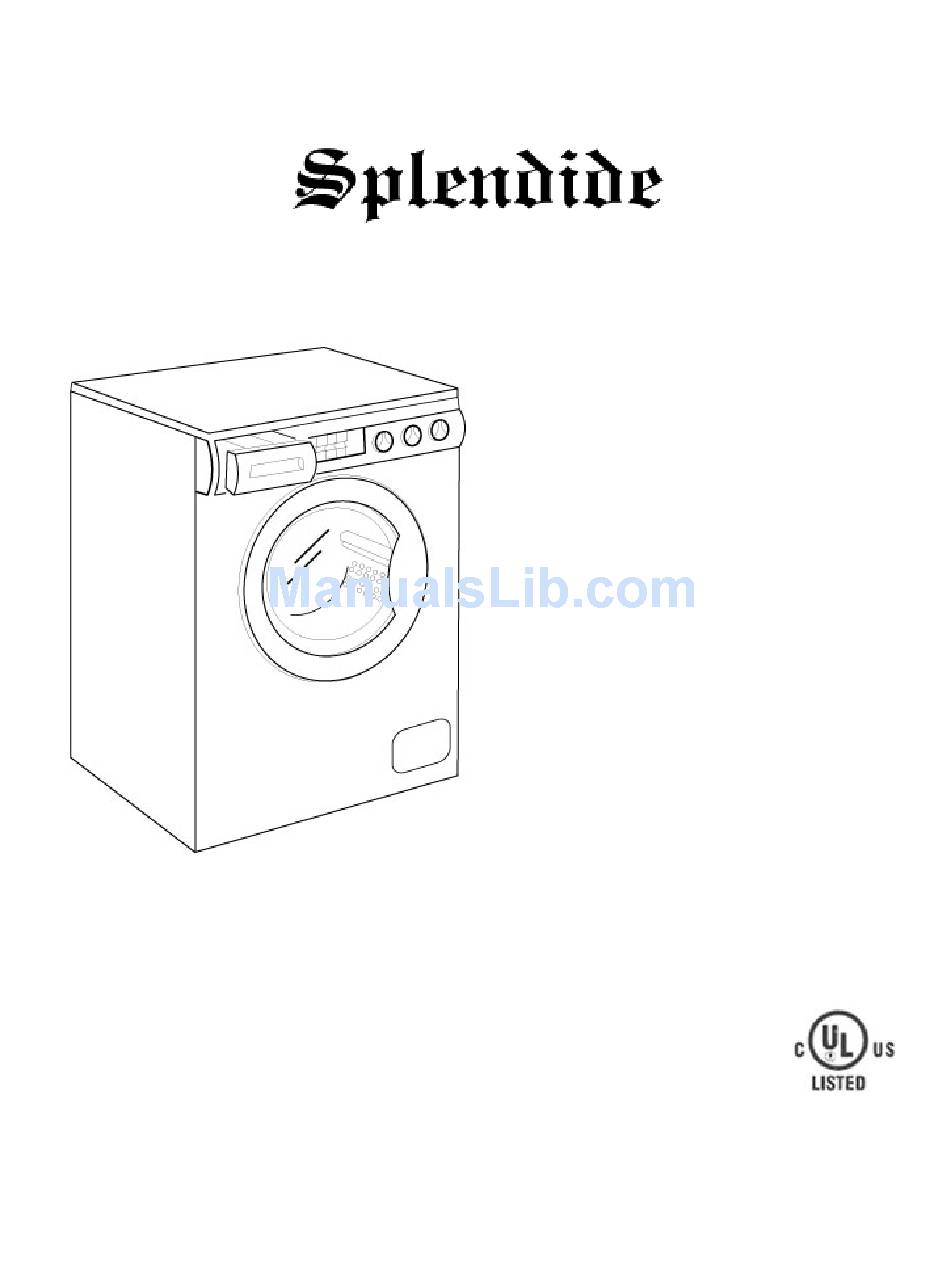

OWNERS MANUAL
When Technology Meets Ecology
CAUTION:
Before operating this appliance
it is recommended that you
read this manual and follow all
Safety Rules and Operating
Instructions.
COMBINATION WASHER & CONDENSER DRYER
MODEL WDC1024M & WDC1025M
corporate offices
nd
Westland Sales / PO Box 427 / 15650 SE 102
Ave / Clackamas, OR 97015 - USA
warehouses Clackamas, OR & Elkhart, IN / phone 503.655.2563 / fax 503.656.8829
web www.westlandsales.com / www.splendide.com / e-mail splendide@westlandsales.com
Advertisement
Table of Contents
Related Manuals for Splendide WDC1024M
Summary of Contents for Splendide WDC1024M
- Page 1 MODEL WDC1024M & WDC1025M corporate offices Westland Sales / PO Box 427 / 15650 SE 102 Ave / Clackamas, OR 97015 - USA warehouses Clackamas, OR & Elkhart, IN / phone 503.655.2563 / fax 503.656.8829 web www.westlandsales.com / www.splendide.com / e-mail splendide@westlandsales.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Record Serial & Model Number...……... Installation...…. Removing Shipping Brackets…... Leveling...….. Grounding...….. Plumbing………………………………... Important Safety Instructions...….. Recessed, Closet and Alcove Installation. Laundry Preparation... Sorting... Inspection... Pre-Treating... Pre-Washing... Laundry Aids... Washer Features... On-Off Button... Medium/High Spin Button... High/Heat Half/Heat Button... Wash Timer... - Page 3 RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICES PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "Dangerous Voltage"...
-
Page 4: Removing Shipping Brackets
4. Close the 4 holes on the cabinet with the plastic blanking plugs that you will find in the accessories bag (Fig. 3) MODELS: WDS1043M-SWD1054M-WDC1024-WDC1024M 1. Remove fixing screws and respective spacers from the two brackets to cross bearing (Fig. 4) and remove brackets 2. -
Page 5: Grounding Instructions
WARNING - The Appliance Should Be Connected To An Individual Branch Circuit With No. 14 AWG Wire And Protected By 15 A Fuse or Breaker. MODELS: WDB1043-LWD1054M-WDC1025- WDC1025M MODELS: WDS1043-SWD1054M-WDC1024- WDC1024M Page 3... -
Page 6: Important Safety Instructions
IMPORTANT Make sure the drain hose is not kinked and the water flow is not restricted. Standpipe Drain System: When a stanpipe installation is used it must be at least 1¼" (3.2 cm) in diameter with a minimum carry away capacity of 7 gallons (26 liters) per minute. -
Page 7: Recessed, Closet And Alcove Installation
Recessed, Closet And Alcove Installation Instructions The Machine may be installed in a recessed area, closet or alcove. The installation spacing is in inches and is the minimum acceptable. Additional spacing should be considered for easy installation, servicing and com- pliance with local codes and ordinances. -
Page 8: Laundry Preparation
LAUNDRY PREPARATION Sorting Clothes should be sorted to separate items which could damage other garments. Sort items into loads according to similar colors, fabrics, garment construction and degrees of soil. • Color - Separate clothes into three groups: whites and pastels medium and bright colors and dark colors. -
Page 9: Washer Features
This dispenser drawer is easily removed by pulling out. Rinse it under the tap, dry and replace. On Models WDS1043M-SWD1054M-WDC1024- WDC1024M the locking mechanism on the center divider must be released. Page 7... - Page 10 Page 8...
-
Page 11: How To Wash
• Set the heat and spin buttons to the out positions. • Set the dry timer to 80 minutes (100 minutes for WDC1024M) (This automatically includes a 12 minute cool down). • Place a set of queen-size sheets and pillow-cases in the drum loosely. -
Page 12: Tumble Dry
• Load the machine with the articles to be rinsed. • If you wish, put fabric conditioner in the additives compartment "D" of the Detergent Dispenser (For WDC1024M compartment “C”). • Turn the program selector knob to the position marked "Rinse". Select the desired heat setting. Press the half heat if you want a low dry temperature. -
Page 13: Laundry Aids
MODELS WDS1043M-SWD1054M-WDC1024-WDC1024M **Compartments may be used with the selections indicated. *With the cycle C/C please proceed as follows. COLD WASH Add detergent in compartment "A" Detergent Amount Recommendations • Use only a low sudsing detergent, one or two table- spoons (maximum) of the standard powder detergent or liquid equivalent. -
Page 14: Stain Removal Chart
Blood Rinse or soak fresh stain in cold water. Work detergent into any remaining stain. Rinse. If stain persists, put a few drops of ammonia on stain and repeat detergent treatment. Rinse. If necessary bleach. Candle Wax Scrape off excess. Place stain between clean white blotters or several layers of facial tissues. -
Page 15: Care And Cleaning
Nail Polish Treat while fresh, scraping or wiping off as much as possible, before it dries. Place stain face down on white paper towels. Sponge back of stain acetone (nail polish remover) or sponge with denatured alcohol and a few drops of household ammonia. -
Page 16: Winterizing
• Turn off the hot and cold water source to machine. • Set machine to fill in regular cycle on warm wash. • Turn machine on for a few minutes so machine can take on any water. • Lift inlet hoses to assure no water is left in inlet hoses. •... - Page 17 "Chugging" Noise" • A certain amount of "chugging" noise is normal in a heavy-duty machine. Rattling And Clanking Noise • Foreign objects such as coins or safety pins may be in the tub. • Foreign objects may be in the pump. •...
