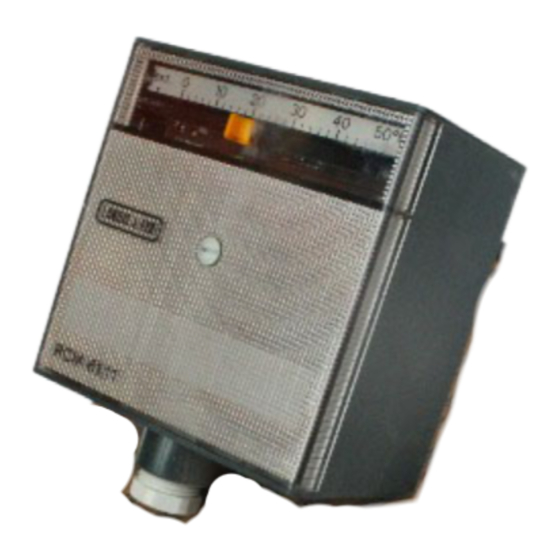

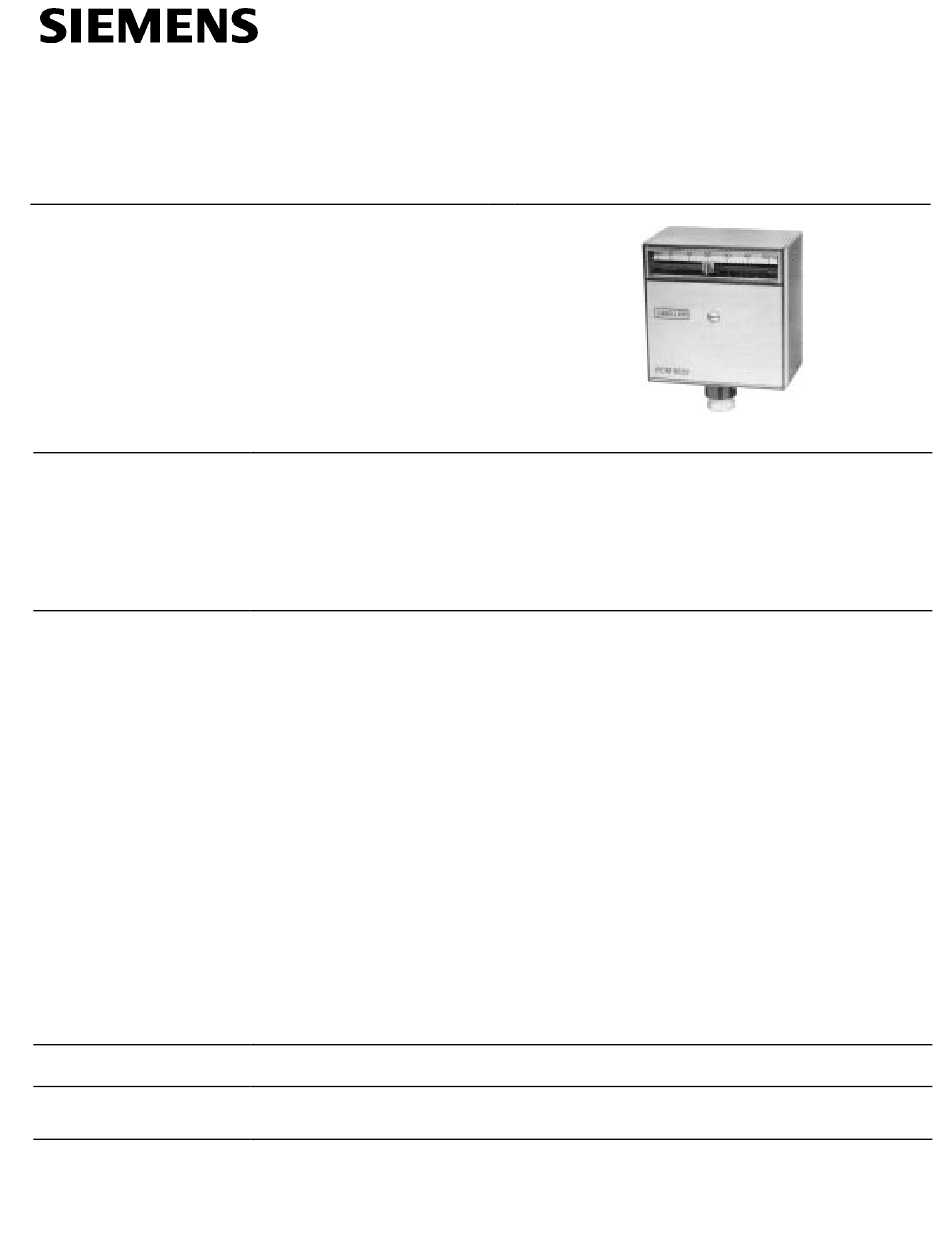

Polygyr
®
-Compact
Discharge Air Temperature
Controller
Features
Application
Product Number
Ordering
•
Two outputs for heating and cooling
•
Continuous control signal
•
PI control
•
Electronic
•
24 Vac
The RCM61.22 is used for controlling discharge air temperature in smaller ventilating
and air conditioning installations (by heating and cooling).
Application examples:
•
Individual installations, (kitchens, cloak rooms, storage rooms, etc.)
•
Zone control in larger installations
The following units can be controlled:
•
Heating and cooling valve actuator
•
Air damper actuator
•
Step controller or current valve for electric air heater battery
•
Signal converter
The temperature controlled by the RCM61.22 can be shifted:
•
by the outdoor temperature to obtain summer/winter compensation.
•
by a building automation system to obtain set point adjustment (fixed value shift).
RCM61.22
When ordering, specify quantity, product number and description.
Technical Instructions
Document No. CM1N3407E-P25
Siemens Building Technologies, Inc.
Rev. 1, February, 2000
Advertisement
Related Manuals for Siemens Polygyr-Compact
Summary of Contents for Siemens Polygyr-Compact
- Page 1 The temperature controlled by the RCM61.22 can be shifted: • by the outdoor temperature to obtain summer/winter compensation. • by a building automation system to obtain set point adjustment (fixed value shift). Product Number RCM61.22 Ordering When ordering, specify quantity, product number and description. Siemens Building Technologies, Inc.
-
Page 2: Design Features
Technical Instructions Polygyr-Compact Discharge Air Temperature Controller Document Number CM1N3407E-P25 Rev. 1, February, 2000 Function The RCM61.22 provides PI control. The proportional band can be adjusted. The controller compares the actual value with the set point and generates a proportional control signal when a deviation occurs. -
Page 3: Specifications
Polygyr-Compact Discharge Air Temperature Controller Technical Instructions Document Number CM1N3407E-P25 Rev. 1, February, 2000 1 Connecting Design Features, terminals Continued 2 Setting potentiometer for P band 3 Slider for setting the desired value 4 Setting scale 5 Service plug 6 Mounting flange... - Page 4 Technical Instructions Polygyr-Compact Discharge Air Temperature Controller Document Number CM1N3407E-P25 Rev. 1, February, 2000 Application When the unit is switched off or the power supply interrupted (Terminal G), the regulating unit is automatically run to the closed or no-load position.
-
Page 5: Wiring Diagrams
Information in this publication is based on current specifications. The company reserves the right to make changes in specifications and models as design improvements are introduced. Polygyr is a trademark of Siemens Building Technologies, Inc. © 2000 Siemens Building Technologies, Inc.
