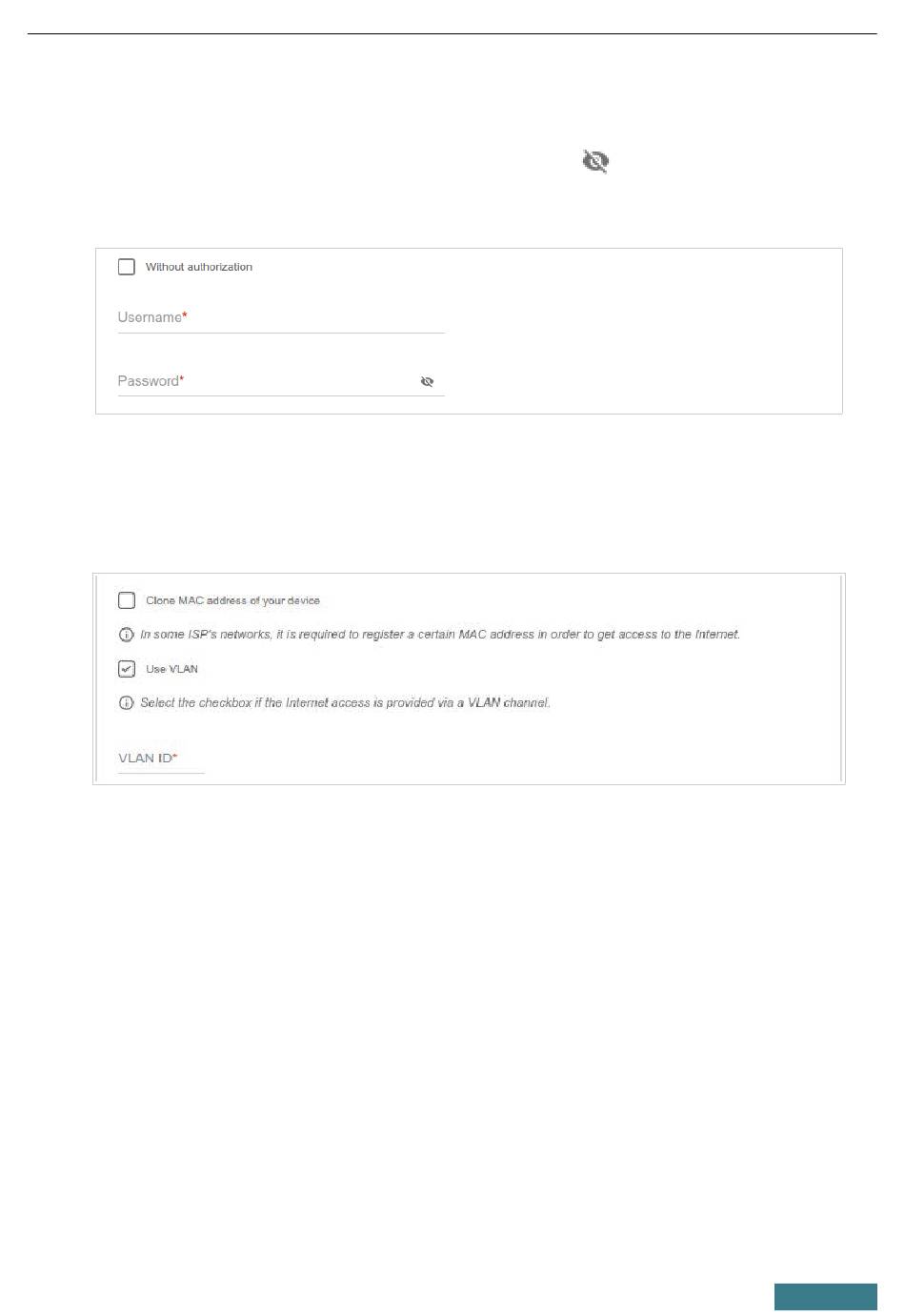

D-Link DSL-245GR Quick Installation Manual page 27

DSL-245GR
PPPoE, IPv6 PPPoE, PPPoE Dual Stack: Enter authorization data provided
by your ISP (the username (login) in the Username field and the password in
the Password field). Click the Show icon (
password. If authorization is not required, select the Without authorization
checkbox.
2. If your ISP uses MAC address binding, select the Clone MAC address
of your device checkbox.
3. If the Internet access is provided via a VLAN channel, select the Use
VLAN checkbox and fill in the VLAN ID field.
4. Click the NEXT button.
Quick Installation Guide
) to display the entered
27
