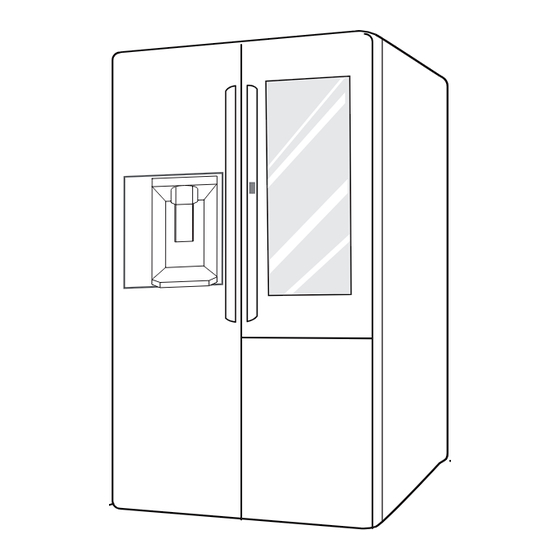

- Page 1 OWNER'S MANUAL SIDE BY SIDE REFRIGERATOR Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times. LSXS26396S LSXC22396S www.lg.com MFL67653459 Rev.02_030817 Copyright © 2017 LG Electronics Inc. All Rights Reserved.
-
Page 2: Installation Overview
INSTALLATION INSTALLATION Installation Overview Please read the following installation instructions first after purchasing this product or transporting it to another location. Unpacking the Refrigerator Choosing the Proper Location Disassembling/Assembling Connecting the Water Line Leveling and Door Alignment CAUTION • Connect to a potable water supply only. -
Page 3: Unpacking The Refrigerator
12 INSTALLATION Unpacking the Refrigerator Choosing the Proper Location WARNING Water Water supply must be easily connected for the • Use two or more people to move and install the automatic icemaker. refrigerator. Failure to do so can result in back injury or other injury. - Page 4 Allow at least 24 inches (610 mm) in front of the refrigerator to open the doors, and at least 2 inches (50.8 mm) between the back of the refrigerator and the wall. List LSXS26396S LSXC22396S 33 2/5" 29 2/5"...
-
Page 5: Removing/Assembling Handles
14 INSTALLATION Removing/Assembling Assembling the Refrigerator Handles Handles Assemble the mounting fasteners (1) at both ends of the handle with a 1/4 in. Allen rench. • When moving the refrigerator through a narrow opening, removing the doors is preferred. • The appearance of the handles may vary from what Place the handle on the door by fitting the handle is shown. - Page 6 INSTALLATION Removing the Freezer Door (with Lift the door to remove it from the lower hinge pin. Water Line Connection) Be careful to pull the water lines from behind the lower hinge pin. Enough for the water feed tube to be completely Before removing freezer door, disconnect water pulled out.
- Page 7 16 INSTALLATION Disassembling/Assembling the Water Lines Lift the door from the lower hinge pin. Collet Tube Insert line Clip (Correct) Lower Hinge Gently press the collet and insert the tube until CAUTION only one line shows on the tube. • When lifting the hinge free of the latch, be careful that the door does not fall forward.
- Page 8 INSTALLATION Connecting the Water Line Assembling the Refrigerator Door Before Beginning Place the door onto the lower hinge pin. This water line installation is not covered by the refrigerator warranty. Follow these instructions carefully to minimize the risk of expensive water damage.
- Page 9 18 INSTALLATION If the water pressure from the reverse osmosis • Shutoff valve to connect to the cold water line. system is less than 20 psi or 138 kPa or 1.4 kgf/ cm The shutoff valve should have a water inlet with a (takes more than 4 seconds to fill a cup of 7 oz or minimum inside diameter of 5/32 in.
- Page 10 INSTALLATION Drill the hole for the valve. Route the tubing. • Drill a ¼ in. hole in the water pipe using a sharp Route the tubing between the cold water line and bit. Remove any burrs resulting from drilling the the refrigerator.
-
Page 11: Leveling And Door Alignment
20 INSTALLATION Leveling and Door Alignment Connect the tubing to the refrigerator. Leveling NOTE The refrigerator has two front leveling legs. Adjust the • Before making the connection to the refrigerator, be legs to alter the tilt from front-to-back or side-to side. sure that the refrigerator power cord is not plugged If the refrigerator seems unsteady, or the doors do into the wall outlet. - Page 12 INSTALLATION Turning on the Power Door Alignment Both the left and right refrigerator doors have an • After installing, plug the refrigerator’s power cord adjustable nut, located on the bottom hinge, to raise into a 3-prong grounded outlet and push the and lower them to align properly.
