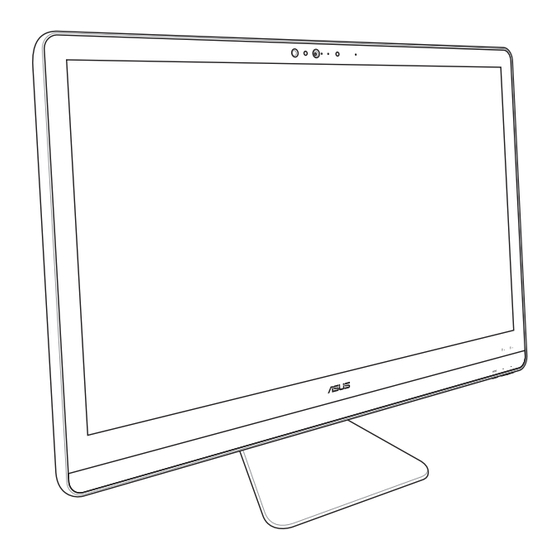

User Guide
ZN22/ZN24/ZN27 series
E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 1
2017/12/26
03:02:37

Advertisement

Table of Contents
loading

Related Manuals for Asus Zen AiO ZN22 Series

Summary of Contents for Asus Zen AiO ZN22 Series

  • Page 1 User Guide ZN22/ZN24/ZN27 series E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 1 2017/12/26 03:02:37...
  • Page 2 Warranty Statement, up to the listed contract price of each product. ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.

  • Page 3: Table Of Contents

    ASUS Zen AiO PC (ZN22) ..................24 Front view .......................... 24 Rear view ........................... 26 Chapter 2: Using your ASUS All-in-One PC Positioning your ASUS All-in-One PC ..............29 Setting up your ASUS All-in-One PC ..............30 Connecting a wired keyboard and mouse ............30 Connecting the wireless keyboard and mouse (on selected models) ..
  • Page 4 Configuring a dynamic IP/PPPoE network connection ........54 Configuring a static IP network connection ............55 Turning your ASUS All-in-One PC off ..............56 Putting your ASUS All-in-One PC to sleep ............57 Chapter 4: Recovering your system Entering the BIOS Setup ..................59 Quickly enter the BIOS ....................
  • Page 5 Wireless Operation Channel for Different Domains ........... 66 CE Mark Warning ......................66 REACH ..........................68 Global Environmental Regulation Compliance and Declaration ....68 ASUS Recycling/Takeback Services ................68 Coating Notice ......................... 69 Prevention of Hearing Loss ..................69 ENERGY STAR complied product ................70 ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 5...

  • Page 6: About This Manual

    About this manual This manual provides information about the hardware and software features of your ASUS All-in-One PC, organized through the following chapters: Chapter 1: Hardware Setup This chapter details the hardware components of your ASUS All- in-One PC. Chapter 2: Using your ASUS All-in-One PC This chapter provides you with information on using your ASUS All-in-One PC.

  • Page 7: Conventions Used In This Manual

    Typography Bold =This indicates a menu or an item that must be selected. Italic = This indicates sections that you can refer to in this manual. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 7 2017/12/26 03:02:37...

  • Page 8: Icons

    Icons The icons below indicate the devices you can use for completing a series of tasks or procedures on your ASUS All-in-One PC. = Use the touch screen panel (on selected models). = Use the mouse. = Use the keyboard.

  • Page 9: Safety Information

    Safety information Your ASUS All-in-One PC is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system •...
  • Page 10 Liquid has been spilled into the system. The system does not function properly even if you follow the operating instructions. The system was dropped or the cabinet is damaged. The system performance changes. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 10 2017/12/26 03:02:37...

  • Page 11: Sound Pressure Warning

    DC Fan Warning Please note that the DC fan is a moving part and can cause harm when used improperly. Keep away from the fan when using the product. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 11 2017/12/26 03:02:37...

  • Page 12: Package Contents

    Package contents Power cord ASUS Zen AiO PC AC power adapter Keyboard Mouse KBM USB receiver dongle (for wireless KBM only) Warranty card NOTE: • If any of the items is damaged or missing, contact your retailer. • The ASUS All-in-One PC illustration is for reference only. Actual product specifications may vary with models . • The keyboard, mouse, and power supply illustrations are for reference only.

  • Page 13: Chapter 1: Hardware Setup

    Chapter 1: Hardware Setup ASUS Zen AiO PC (ZN27) Front view ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 13 2017/12/26 03:02:38...
  • Page 14 On selected models, multi-touch is supported. You can operate your ASUS All-in-One PC using touch gestures. Drive activity indicator This indicator lights up when your ASUS All-in-One PC is accessing the internal storage drives. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 14...
  • Page 15 PC is turned on. Mode button Touch to switch the display signal source. When switched to HDMI-in, the ASUS All-in-One PC can be used as a standard desktop LCD monitor. Mode down button You can use this button to decrease the value of brightness in HDMI Input mode.

  • Page 16: Rear View

    Rear view Power button Press this button to turn on your ASUS All-in-One PC. MicroSD card slot This built-in memory card reader slot supports SD, and MMC card formats. Microphone jack The microphone jack is designed to connect to a microphone used for video conferencing, voice narrations, or simple audio recordings.
  • Page 17 HDCP compliant for HD DVD, Blu-ray, and other protected content playback. HDMI output port This port allows you to connect your ASUS All-in-One PC to another HDMI-compatible device for file sharing or extending your display monitor. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 17...
  • Page 18 HDDs, speakers, cameras and printers. USB 3.1 Gen1 port This USB 3.1 Gen1 (Universal Serial Bus) port provides a transfer rate of up to 5 Gbit/s and is backward compatible to USB 2.0. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 18 2017/12/26 03:02:39...

  • Page 19: Asus Zen Aio Pc (Zn24)

    ASUS Zen AiO PC (ZN24) Front view IR Camera (on selected models) The built-in camera supports facial recognition when using Windows Hello. NOTE: • When you sign in with Windows Hello, the set up screen will be in black and white color. • The red IR LED blinks in the process while data is being read before you sign in with Windows Hello facial recognition.
  • Page 20 On selected models, multi-touch is supported. You can operate your ASUS All-in-One PC using touch gestures. Drive activity indicator This indicator lights up when your ASUS All-in-One PC is accessing the internal storage drives. Power indicator This LED power indicator lights up when the ASUS All-in-One PC is turned on.

  • Page 21: Rear View

    Rear view Power button Press this button to turn on your ASUS All-in-One PC. MicroSD card slot This built-in memory card reader slot supports SD, and MMC card formats. Microphone jack The microphone jack is designed to connect to a microphone used for video conferencing, voice narrations, or simple audio recordings.
  • Page 22 Do not cover the adapter and keep it away from your body. HDMI output port This port allows you to connect your ASUS All-in-One PC to another HDMI-compatible device for file sharing or extending your display monitor.
  • Page 23 NOTE: • Transfer rate of this port may vary per model. • This port may vary per model. USB 3.1 Gen1 port This USB 3.1 Gen1 (Universal Serial Bus) port provides a transfer rate of up to 5 Gbit/s and is backward compatible to USB 2.0. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 23 2017/12/26 03:02:40...

  • Page 24: Asus Zen Aio Pc (Zn22)

    LCD display The LCD display panel provides excellent viewing features for photos, videos, and other multimedia files. On selected models, multi-touch is supported. You can operate your ASUS All-in-One PC using touch gestures. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 24 2017/12/26 03:02:40...
  • Page 25 Drive activity indicator This indicator lights up when your ASUS All-in-One PC is accessing the internal storage drives. Power indicator This LED power indicator lights up when the ASUS All-in-One PC is turned on. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 25 2017/12/26...

  • Page 26: Rear View

    Rear view Power button Press this button to turn on your ASUS All-in-One PC. MicroSD card slot This built-in memory card reader slot supports SD, and MMC card formats. Microphone jack The microphone jack is designed to connect to a microphone used for video conferencing, voice narrations, or simple audio recordings.
  • Page 27 Do not cover the adapter and keep it away from your body. HDMI output port This port allows you to connect your ASUS All-in-One PC to another HDMI-compatible device for file sharing or extending your display monitor.
  • Page 28 HDDs, speakers, cameras and printers. USB 3.1 Gen1 port This USB 3.1 Gen1 (Universal Serial Bus) port provides a transfer rate of up to 5 Gbit/s and is backward compatible to USB 2.0. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 28 2017/12/26 03:02:41...

  • Page 29: Chapter 2: Using Your Asus All-In-One Pc

    Chapter 2: Using your ASUS All-in-One PC Positioning your ASUS All-in-One PC 20~25 Place your ASUS All-in-One PC on a flat surface such as a table or desk. Tilt the display to an angle between -5 to 25 for ZN22 and ZN24,...

  • Page 30: Setting Up Your Asus All-In-One Pc

    Setting up your ASUS All-in-One PC NOTE: The illustrations in this section are for reference only. The appearance of your ASUS All-in-One PC may vary depending on model. Connecting a wired keyboard and mouse Connect the keyboard and the mouse to the USB ports on the rear panel.

  • Page 31: Connecting The Wireless Keyboard And Mouse (On Selected Models)

    Install batteries into the wireless keyboard and mouse. Connect the wireless dongle for keyboard and mouse to the USB 2.0 ports to automatically pair both devices to your ASUS All-in- One PC. You can begin using the wireless keyboard and mouse.

  • Page 32: Powering On The System

    Powering on the system Connect the AC power cord to the AC/DC adapter. Connect the DC power connector into your ASUS All-in-One PC’s power (DC) input. Plug the AC power adapter into a 100V~240V power source. Press the power button.
  • Page 33 NOTE: For details on turning off your ASUS All-in-One PC, refer to the section Turning your ASUS All-in-One PC off in Working with Windows®10. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 33 2017/12/26 03:02:42...

  • Page 34: Using The Touch Screen (On Selected Models)

    Using the touch screen (on selected models) The LCD screen panel of your ASUS All-in-One PC provides excellent viewing features for photos, videos, and other multimedia files on your NOTE: The illustration above is for reference only. The appearance of your ASUS All-in-One PC may vary depending on model.

  • Page 35: Using Touch Screen Panel Gestures (On Selected Models)

    The gestures allow you to launch programs and access the settings of your ASUS All-in-One PC. The functions can be activated by using the hand gestures on your ASUS All-in-One PC’s touch screen panel.
  • Page 36 Press and hold to open the right- click menu. • Double-tap an app to launch it. Zoom in Zoom out Spread apart your two fingers on Bring together your two fingers the touch screen panel. on the touch screen panel. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 36 2017/12/26 03:02:44...
  • Page 37 Slide your finger to scroll up and • Drag to create a selection down and slide your finger to pan box around multiple items. the screen left or right. • Drag and drop an item to move it to a new location. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 37 2017/12/26 03:02:44...
  • Page 38 ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 38 2017/12/26 03:02:44...

  • Page 39: Chapter 3: Working With Windows

    Chapter 3: Working with Windows® 10 Starting for the first time When you start your ASUS All-in-One PC for the first time, a series of screens appear to guide you in configuring your Windows® 10 operating system. To start your ASUS All-in-One PC for the first time: Press the power button on your ASUS All-in-One PC.

  • Page 40: Start Menu

    Start menu The Start menu is the main gateway to your ASUS All-in-One PC’s programs, Windows® apps, folders, and settings. Change account settings, lock, or sign out from your account Launch an app from the Start screen Launch an app from the taskbar...

  • Page 41: Launching The Start Menu

    Use the arrow keys to browse through the programs. Press to launch it. NOTE: Select All apps at the bottom of the left pane to display a full list of programs and folders on your ASUS All-in-One PC in alphabetical order. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 41 2017/12/26...

  • Page 42: Windows® Apps

    These are apps pinned on the right pane of the Start menu and displayed in tiled-format for easy access. NOTE: Some Windows® apps require signing in to your Microsoft account before they are fully launched. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 42 2017/12/26 03:02:45...

  • Page 43: Working With Windows® Apps

    Working with Windows® apps Use your ASUS All-in-One PC’s touch screen, mouse, or keyboard to launch, customize, and close apps. Launching Windows® apps from the Start menu Tap the app to launch it. Position your mouse pointer over the app then click to launch it.
  • Page 44 Press and hold the app, then tap the icon. Position your mouse pointer over the app and right-click it, then click Unpin from Start. Use the arrow keys to navigate to the app. Press then select Unpin from Start. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 44 2017/12/26 03:02:45...
  • Page 45 Start menu and right-click it, then click Pin to Start. From All apps, press on the app that you want to add to the Start menu, then select Pin to Start. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 45 2017/12/26 03:02:45...

  • Page 46: Task View

    Launching task view Tap the icon on the taskbar or swipe form the left edge of the screen. Position your mouse pointer over the icon on the taskbar and click it. Press on your keyboard. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 46 2017/12/26 03:02:46...

  • Page 47: Snap Feature

    Snap feature The Snap feature displays apps side-by-side, allowing you to work or switch between apps. Snap hotspots You can drag and drop apps to these hotspots to snap them into place. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 47 2017/12/26 03:02:46...
  • Page 48 Launch the app you wish to snap. Press and hold the key, then use the arrow keys to snap the app. Launch another app and repeat the above steps to snap another app. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 48 2017/12/26 03:02:46...

  • Page 49: Action Center

    Launching Action Center Click the icon on the taskbar or swipe from the right edge of the screen. Position your mouse pointer over the icon on the taskbar and click it. Press on your keyboard. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 49 2017/12/26 03:02:47...

  • Page 50: Other Keyboard Shortcuts

    Windows® 10. Launches Start menu Launches Action Center Launches the desktop Launches the File Explorer Opens the Share panel Launches Settings Launches Connect panel Activates the Lock screen Minimizes all currently active windows ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 50 2017/12/26 03:02:47...
  • Page 51 Opens the Run window Opens Ease of Access Center Opens the context menu of the Start button Launches the magnifier icon and zooms in your screen Zooms out your screen Opens Narrator Settings ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 51 2017/12/26 03:02:47...

  • Page 52: Connecting To Wireless Networks

    Access emails, surf the Internet, and share applications via social networking sites using your ASUS All-in-One PC’s Wi-Fi connection. Connecting Wi-Fi Connect your ASUS All-in-One PC to a Wi-Fi network by using the following steps: Select the icon from the taskbar.

  • Page 53: Bluetooth

    Use Bluetooth to facilitate wireless data transfers with other Bluetooth- enabled devices. Pairing with other Bluetooth-enabled devices You need to pair your ASUS All-in-One PC with other Bluetooth-enabled devices to enable data transfers. Connect your devices by using the following steps: Launch Settings from the Start menu.

  • Page 54: Connecting To Wired Networks

    To configure your settings, refer to the following procedures. IMPORTANT! Ensure that a network cable is connected between your ASUS All-in-One PC’s LAN port and a local area network before performing the following actions. Configuring a dynamic IP/PPPoE network connection Launch Settings.

  • Page 55: Configuring A Static Ip Network Connection

    Select Use the following IP address. Type the IP address, Subnet mask and Default gateway from your service provider. If needed, you can also type the preferred DNS server address and alternate DNS server address then select OK. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 55 2017/12/26 03:02:47...

  • Page 56: Turning Your Asus All-In-One Pc Off

    Turning your ASUS All-in-One PC You can turn off your ASUS All-in-One PC by doing either of the following procedures: • Launch the Start menu, then select > Shut down to do a normal shutdown. > Shut down. • From the log-in screen, select • Press to launch Shut Down Windows.

  • Page 57: Putting Your Asus All-In-One Pc To Sleep

    From the log-in screen, select Press to launch Shut Down Windows. Select Sleep from the drop-down list then select OK. NOTE: You can also put your ASUS All-in-One PC to Sleep mode by pressing the power button once. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 57 2017/12/26...
  • Page 58 ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 58 2017/12/26 03:02:47...

  • Page 59: Chapter 4: Recovering Your System

    (4) seconds to access the BIOS directly. • Press the power button to turn on your ASUS All-in-One PC then press <F2> or <Del> during POST. NOTE: POST (Power-On Self-Test) is a series of software controlled diagnostic tests that run when you turn on your ASUS All-in-One PC. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 59 2017/12/26 03:02:47...

  • Page 60: Recovering Your System

    Keep my files - This option allows you refresh your ASUS All-in- One PC without affecting personal files (photos, music, videos, documents). Using this option, you can restore your ASUS All-in-One PC to its default settings and delete other installed apps. • Remove everything - This option resets your ASUS All-in-One PC to its factory settings.

  • Page 61: Performing A Recovery Option

    Use this option if this build is not working for you. • Advanced startup - Using this option allows you to perform other advanced recovery options on your ASUS All-in-One PC such as: Using a USB drive, network connection or Windows recovery DVD to startup your ASUS All-in-One PC.
  • Page 62 Under the Update and security option, select Recovery then select the recovery option you would like to perform. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 62 2017/12/26 03:02:48...

  • Page 63: Appendices

    • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 63 2017/12/26 03:02:48...

  • Page 64: Rf Exposure Warning

    This device has no Ad-hoc capability for 5250~5350 and 5470~5725 MHz. CAUTION: Any changes or modifications not expressly approved by the guarantee of this device could void the user’s authority to operate the equipment. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 64 2017/12/26 03:02:48...
  • Page 65 La bande 5150–5250 MHz est réservée uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux. CAN ICES-3(B)/NMB-3(B) ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 65 2017/12/26 03:02:48...

  • Page 66: Radio Frequency (Rf) Exposure Information

    The WiFi Operating in the band 5150-5350MHz shall be restricted to indoor use for countries listed in the table below: ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 66 2017/12/26 03:02:48...
  • Page 67 DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste. 請勿將電池當作一般垃圾丟棄。這個標誌表示電池不應視為一般 垃圾丟棄。 ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 67 2017/12/26 03:02:48...

  • Page 68: Reach

    REACH Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulatory framework, we publish the chemical substances in our products at ASUS REACH website at http:// csr.asus.com/english/REACH.htm. Global Environmental Regulation Compliance and Declaration ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations.

  • Page 69: Coating Notice

    I/O ports are located. Prevention of Hearing Loss To prevent possible hearing damage, do not listen at high volume levels for long periods. ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 69 2017/12/26 03:02:48...

  • Page 70: Energy Star Complied Product

    All ASUS products with the ENERGY STAR logo comply with the ENERGY STAR standard, and the power management feature is enabled by default. The monitor and computer are automatically set to sleep after 10 and 30 minutes of user inactivity.
  • Page 71 ASUS All-in-One PC E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 71 2017/12/26 03:02:48...
  • Page 72 Manufacturer ASUSTek COMPUTER INC. Address, City 4F No. 150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN Telephone Number +886-2-2894-3447 Authorized Representative in ASUS COMPUTER GmbH Europe Address, City HARKORT STR. 21-23, 40880 RATINGEN Country GERMANY E13813_Zen_AiO_ZN220_ZN240_ZN270_Series_UM_V3.indd 72 2017/12/26 03:02:48...
