Broadata Link Bridge LB-H2/DE User Manual

Audio extractor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

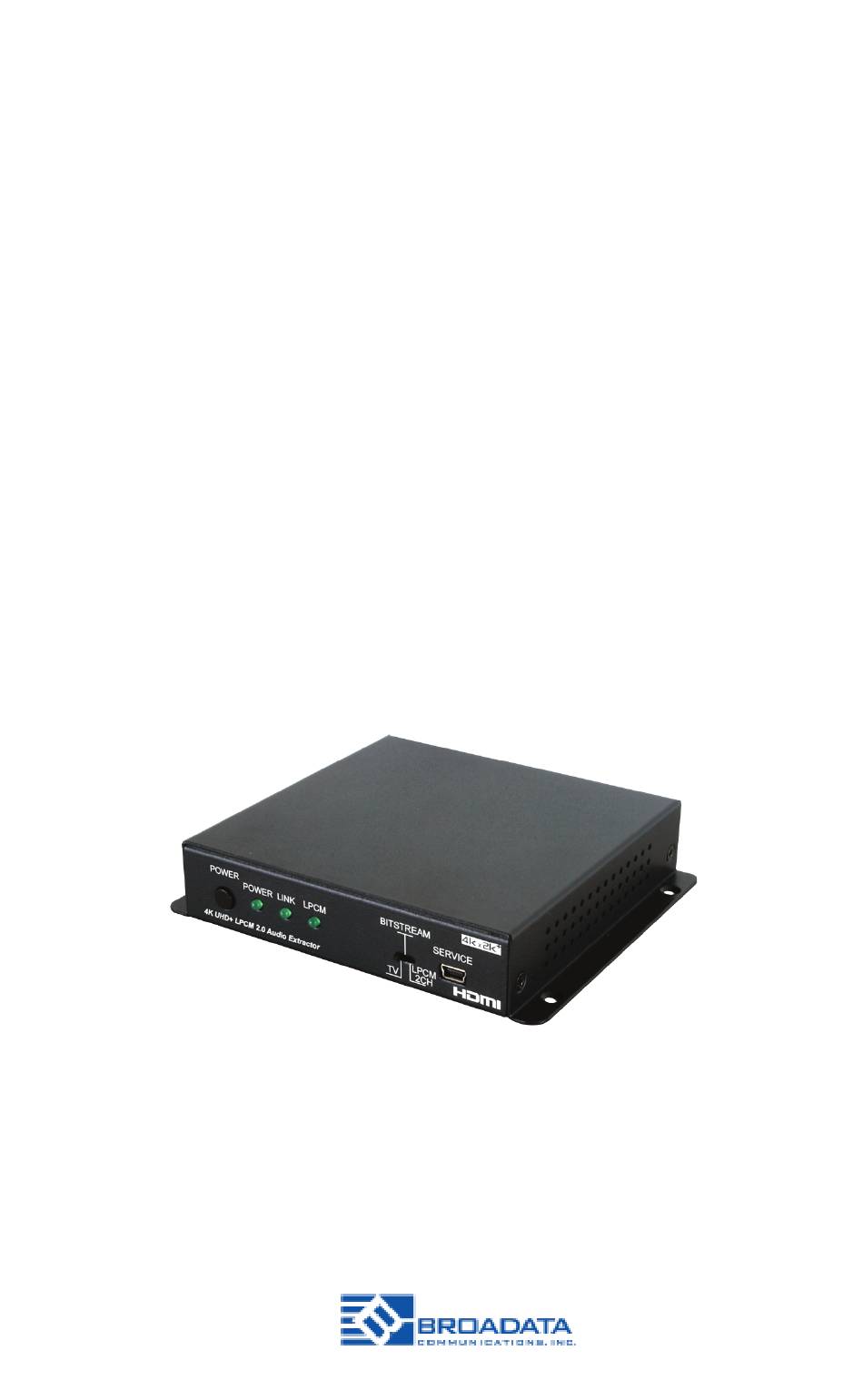

LB-H2/DE
Link Bridge
4K UHD+ LPCM2.0
TM
Audio Extractor
BCI reserves the right to make changes to the products described herein without
prior notice or consent. No liability is assumed as a result of their use or
application. All rights reserved.
©2017 Broadata Communications, Inc.

Advertisement

Table of Contents
loading

Summary of Contents for Broadata Link Bridge LB-H2/DE

  • Page 1 4K UHD+ LPCM2.0 Audio Extractor BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2017 Broadata Communications, Inc.
  • Page 3 This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment. Broadata Technical Support, Sales@Broadatacom.com...

  • Page 4: Table Of Contents

    4.0 EDID CONTROLLER TAB ..............9 5.0 EDID CREATOR TAB ..............10 6.0 MAINTENANCE AND TROUBLESHOOTING ....... 12 7.0 SPECIFICATIONS ................13 8.0 SERVICE PROCEDURE..............14 8.1 REPLACEMENT POLICY ..............14 8.2 RETURN & REPAIR SERVICE............14 9.0 LIMITED WARRANTY...............15 Broadata Technical Support, Sales@Broadatacom.com...

  • Page 5: Product Description

    • Supports HDMI and S/PDIF audio sampling rates up to 192 kHz • Provides EDID management with EDID bypass and 2 user modifiable EDIDs • PC based EDID management tool support • Supports RS-232 style control via a Virtual COM port over USB Broadata Technical Support, Sales@Broadatacom.com...

  • Page 6: Operation Controls And Functions

    5. SERVICE: This slot is for EDID management, control and firmware update use. Connect directly to your PC/laptop using a standard Mini-USB cable to connect using the PC software or to send commands (via virtual COM port). Broadata Technical Support, Sales@Broadatacom.com...

  • Page 7: Rear Panel

    4. ANALOG AUDIO OUT: Connect to powered speakers or an amplifier for stereo analog audio output. (LPCM 2.0 only) 5 DC 5V: Plug the 5V DC power adapter into the unit and connect it to an AC wall outlet for power. Broadata Technical Support, Sales@Broadatacom.com...
  • Page 8 LB-H2/DE User’s Manual Link Bridge 4K UHD+ LPCM2.0 Audio Extractor Commands: Note: Commands will not be executed unless followed by a carriage return. Commands are not case-sensitive. Broadata Technical Support, Sales@Broadatacom.com...

  • Page 9: Edid Manager

    “LPCM 2.0” setting on the front of the unit. Both of these EDIDs are user-replaceable. To return them to their original values, please perform a factory reset on the unit. Save/Upload/Analysis: EDIDs may be saved to a PC, uploaded from a PC or analyzed. Broadata Technical Support, Sales@Broadatacom.com...

  • Page 10: Edid Creator Tab

    *.bin file has been selected and loaded the EDID fields will be populated with the information from that file. The same will happen when the EDID is copied from the EDID Analyzer window. Broadata Technical Support, Sales@Broadatacom.com...
  • Page 11 *.bin file locally or uploaded directly to the unit using the “Save” and “Upload” icons respectively. System Tab Select the System tab to edit the unit’s description, to reset the unit to factory defaults and to view the unit’s current hardware and firmware version information. Broadata Technical Support, Sales@Broadatacom.com...

  • Page 12: Maintenance And Troubleshooting

    Both ends of the link are connected to the corresponding equipment and to the same corresponding channel port. c. Cable connections at both channels are securely fastened to each connector. Turn the power off, then back on to reset the link. Broadata Technical Support, Sales@Broadatacom.com...

  • Page 13: Specifications

    30 - 50KHz In/Out Connectors 3.5mm Stereo Physical Dimensions Standalone 5.71” (W) x 7.83” (D) x 1.18” (H) Power Consumption +24VDC @ 2.7 Amps (Max.) Operating Temperature 0 to +40oC Humidity 20 to 90% RH, Non-Condensing Broadata Technical Support, Sales@Broadatacom.com...

  • Page 14: Service Procedure

    The LB-H2/DE System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/ repair processing please contact Broadata Communications, Inc. to obtain a Return Material Authorization (RMA). Please include the following information: •...

  • Page 15: Limited Warranty

    Link Bridge 4K UHD+ LPCM2.0 Audio Extractor 9.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that...
  • Page 16 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com LB-H2/DE...
