Saelig SAE106S Manual

Digital PCB Microscope

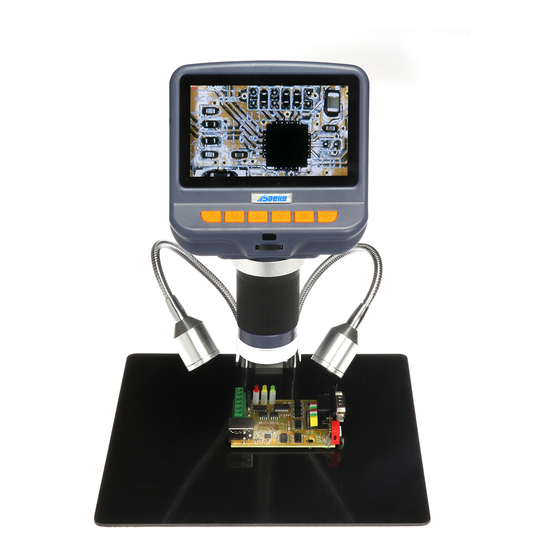

Standalone 1080P Digital USB Microscope with built-in 4.3" LCD
The SAE016S is ideal for examining PCBs in great detail for shorts, solder
bridges, component problems, etc. See images on the high quality built-in LCD
or view on PC for an even bigger image. Save images of problems for reports
or sharing.

4.3" full HD LCD screen shows image – or connect with PC.
 10x - 220x continuous zoom magnification.
 High quality optics for stunning
 Tethered remote control for easy standalone operation
 High-quality stand with height adjustment via knurled knob.
 Built-in UV filter protects the lens, reduces unwanted reflections.
 8 x LED ring illuminator plus two movable LED lights with adjustable intensity for optimal illumination.
 Adjustable object distance from 2-10cm. At 2cm from the object = 220x digital zoom.
 Standalone use or

View high quality image on the built-in 4.3" or an attached PC (Windows XP SP2/Win7/Win8/Win10)

Image resolution: 1280 x 720,4032 x 3024 JPG

Video resolution: 1080P FHD, 720P

Power supply: 5V DC USB

Computer interface: USB 2.0
Thank you for purchasing the SAE106S Digital Microscope. It is a versatile tool designed specifically for PCB
inspection, but it can also be useful in other fields. Use it as a standalone device with its built-in 4.3: LCD screen,
or connect it to a PC. High resolution images can be stored on SD cards and transferred to a PC.
Saelig Company Inc. 71 Perinton Pkwy Fairport NY 14450 USA
SAE106S
1080P images
store photos and videos on SD or Windows PC.
Tethered Remote
www.saelig.com info@saelig.com Page 1
