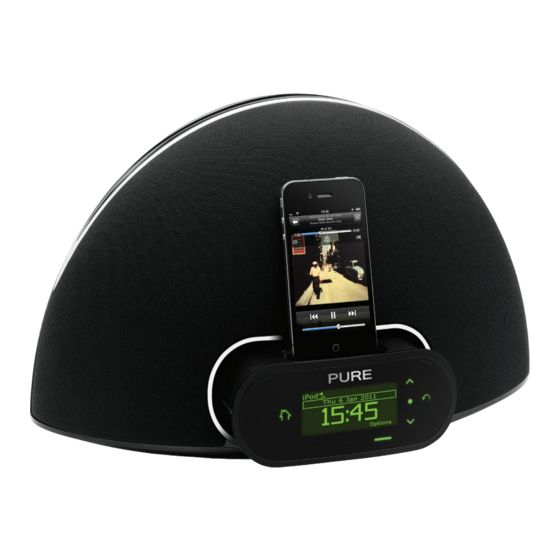

PURE CONTOUR Owner's Manual

Hide thumbs Also See for CONTOUR:
Table of Contents

Advertisement

Quick Links

Download this manual
This is the Owner's Manual for your
Contour. It expands on the Quickstart
provided with the radio and covers more
functions.
You can click on any section in the
bookmarks list on the left to jump to
that page, or use PDF search to find a
specific word or phrase in the manual.
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for PURE CONTOUR

Summary of Contents for PURE CONTOUR

  • Page 1 This is the Owner’s Manual for your Contour. It expands on the Quickstart provided with the radio and covers more functions. You can click on any section in the bookmarks list on the left to jump to that page, or use PDF search to find a specific word or phrase in the manual.
  • Page 2 Important Safety Instructions 1. Read these instructions – All the safety and operating instructions should be read before this product is operated. 2. Keep these instructions – The safety and operating instructions should be retained for future reference. 3. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. 4.

  • Page 3: Table Of Contents

    Quick guide to controls and connectors ..................4 Using the alarm and timers ......................6 Setting the clock ..........................7 Using a Pure mini USB adapter to connect to your network ............8 Pure Connect (The Lounge) ......................9 Connecting Contour to Pure Connect (The Lounge) ...............9 The Lounge settings (Pure Connect settings) ................10...

  • Page 4: Quick Guide To Controls And Connectors

    Component/S-Video 3.5 mm 3.5 mm socket Phono video output 3.5mm video output from a connection for stereo from a docked iPod/ docked iPod/iPhone. (Pure for auxiliary headphones iPhone. Connect to a Choice accessory cables devices TV or monitor available separately.)
  • Page 5 Remote control Switch between On and Standby Mute audio Sources Select a source to listen to Sleep Press to start sleep timer Repeat to increase time Alarm Set and adjust alarms Add or recall a Tone Adjust bass and treble favorite station Options Change setup options...

  • Page 6: Using The Alarm And Timers

    Using the alarm and timers Contour has two alarms, a kitchen timer and sleep timer. To access the alarm and timers, tap Options and select Alarm or timer. Alarm 1 On 07:00 Setting an alarm Last tuned 1. Select Alarm 1 settings Alarm 2 settings.

  • Page 7: Setting The Clock

    Save Menu Setting the sleep timer Adjusting the sleep timer The sleep timer switches Contour into standby after a set period of time. From the Alarm or timer menu, select Sleep timer. Use the navigation buttons to adjust the length of the sleep timer in 15 minute steps from 15 mins to 1 hour 30 mins.

  • Page 8: Using A Pure Mini Usb Adapter To Connect To Your Network

    Using a Pure mini USB adapter to connect to your network The Pure mini USB adapter provides a wired connection for Contour. Connect an Ethernet (RJ45) cable from your network router to the socket on the adapter and connect the adapter to the mini USB port on the rear of Contour.

  • Page 9: Pure Connect (The Lounge)

    Pure Connect’s cloud-based music streaming service*, which provides you with instant access to millions of music tracks. To access Pure Connect on Contour, you will need to connect Contour to your network. See below for more information.

  • Page 10: The Lounge Settings (Pure Connect Settings)

    Register with the Lounge View/Change radio name Lounge (Pure Connect) settings screen You can rename Contour to help identify it more easily when using Pure Connect website. By default this name is ‘My Contour’. To change this, Select View/Change radio name. The current name is at the top of the screen.

  • Page 11: Pure Flowserver

    Pure Flowserver – stream your music If you have music stored on your computer, you can stream it to Contour so you can listen wherever you like using the Media Player source. To do this you can download our media server software, Flowserver.

  • Page 12: Media Player Settings

    Media player settings These settings are only available when listening to the Media player source. Tap Options, then select Media player settings. Media player settings Repeat Repeat Select the repeat type: Shu e Off (default) Tracks are played until the end of the current album, folder, playlist or search results. Media server Continuously repeats the current album, folder, playlist, or your search results.

  • Page 13: Network Settings

    DHCP (dynamic) or Static. Clear network settings Contour will delete all previous connections, passwords and settings and perform a fresh scan for available networks. Select network type Change your internet connection type between Wi-Fi and Ethernet (for Pure mini USB Ethernet adapter)

  • Page 14: Fm Settings

    FM settings These settings are only available when listening to FM radio. Tap Options, then select settings. FM settings FM tuning FM tuning Switch between Seek tune Manual tune. FM stereo Seek tune Automatically tunes to the next station with a strong signal. Manual tune Tunes up or down in steps of 0.5MHz.

  • Page 15: Display Settings

    Display settings Adjust display options, such as screen duration, brightness and the information displayed while you are listening to each source. Tap Options then Display to open the menu. Information Different information displays are available for each audio source: The Lounge Description Broadcast by current station.
  • Page 16 You can adjust the brightness level and the duration that the screen is illuminated when switched on or in standby. Select Active operation to adjust the display settings that apply when Contour is switched on or Standby operation to adjust the display settings that apply when Contour is in standby.

  • Page 17: Audio Settings

    2. If updates are listed on the website, download the most recent update to your computer. 3. Connect Contour to your PC’s USB port using a USB cable (not supplied). Run the update software on your computer and follow the on-screen instructions.

  • Page 18: Help And Advice

    Factory reset • If you experience any problems that cannot be resolved by the above, you can reset Contour to its default settings. This is particularly useful if you are having network trouble. To reset Contour: Press and hold Options until you see the Factory reset screen.

  • Page 19: Technical Specifications

    802.11b and 802.11g supported with WEP and WPA/WPA2 encryption. Ethernet Pure mini USB adapter (available separately) supports 100Mbps LAN connection. iPod/iPhone support iPod nano 2nd generation, 3rd generation with video, iPod nano 4th generation, iPod nano 5th generation (video camera), iPod nano 6th generation, iPod classic, iPod touch, iPod touch 2nd generation, iPod touch 3rd generation, iPod touch 4th generation, iPhone, iPhone 3G, iPhone 3GS and iPhone 4.
  • Page 20 • Consult the dealer or an experienced radio/TV technician for help. Warning! Any modification or changes to this device, unless explicitly approved by Pure, will invalidate the authorisation of the device. Operation of an unauthorized device is prohibited under Section 302 of the Communications Act of 1934, as amended, and Subpart 1 of Part 2 of Chapter 47 of the Code of Federal Regulations.
  • Page 21 Trademarks Contour, the Contour logo, Pure, the Pure Lounge, Pure Connect, Pure sounds, Pure Flowserver, the Pure logo, Imagination Technologies, and the Imagination Technologies logo are trademarks or registered trademarks of Imagination Technologies Limited. iPhone and iPod are trademarks of Apple Inc., registered in the U.S. and other countries.
  • Page 22 Contour is a member of the Pure EcoPlus™ product family. All EcoPlus products are designed and manufactured to minimize their environmental impact. This manual is supplied as a PDF to save paper. The accompanying Quickstart Guide is printed on 100% recycled paper using soya-based ink.
