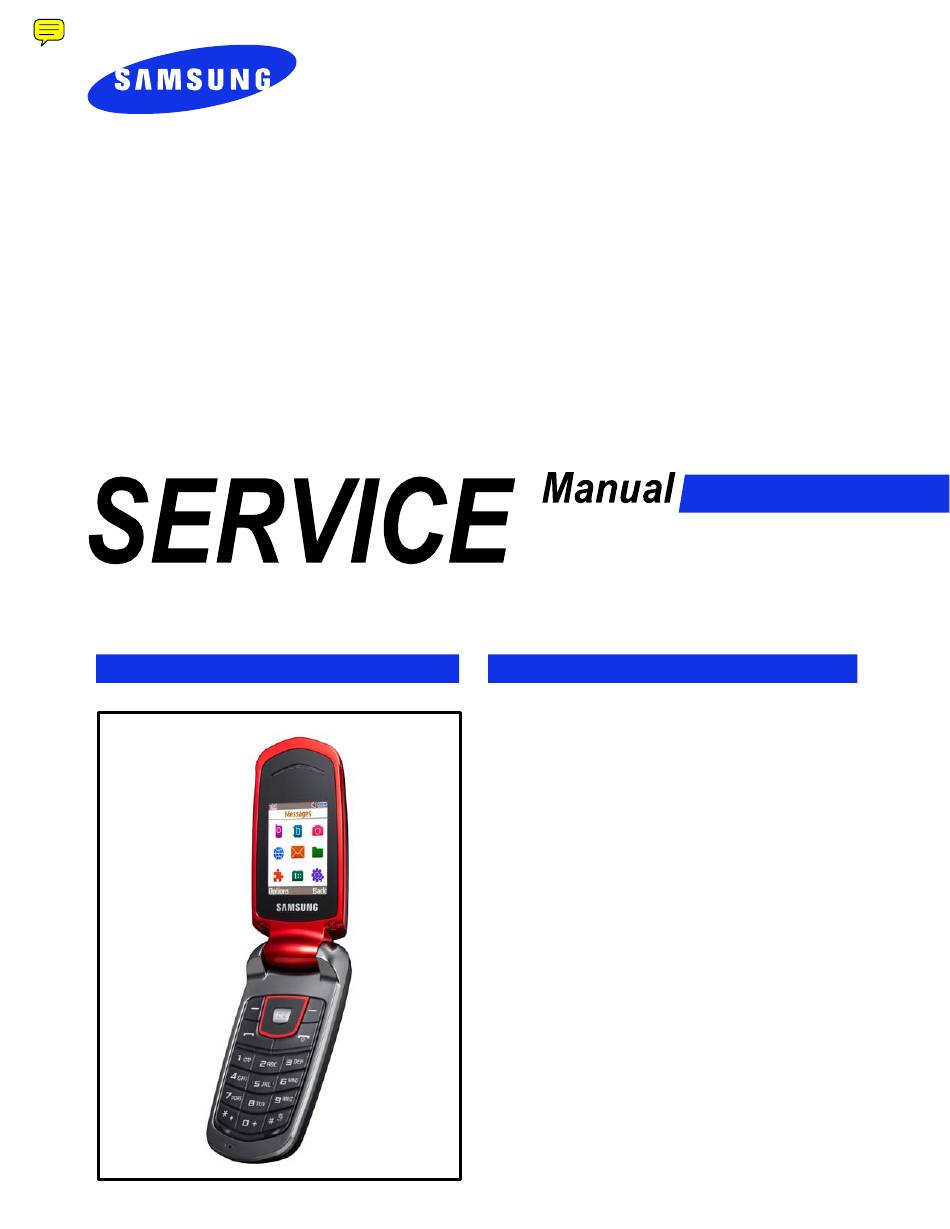

Samsung GT-E2210L Service Manual
Samsung GT-E2210L Service Manual

Samsung GT-E2210L Service Manual

Gsm telephone

Advertisement

Quick Links

efrcom
GSM TELEPHONE
GT-E2210L
GSM TELEPHONE
CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts List
7. Block Diagrams
9. Flow Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
instructions

Advertisement

loading

Summary of Contents for Samsung GT-E2210L

  • Page 1 GSM TELEPHONE GT-E2210L GSM TELEPHONE CONTENTS 1. Safety Precautions 2. Specification 3. Product Function 4. Array course control 5. Exploded View and Parts List 6. Main Electrical Parts List 7. Block Diagrams 8. PCB Diagrams 9. Flow Chart of Troubleshooting 10.
  • Page 2 China china.samsungportal.com Asia asia.samsungportal.com Mideast & Africa mea.samsungportal.com This Service Manual is a property of Samsung Electronics Co.,Ltd. Samsung Electronics Co.,Ltd. ⓒ Any unauthorized use of Manual can be punished under applicable International and/or domestic law. 2009. 02. Rev.1.0...
  • Page 3: Main Electrical Parts List

    R-CHIP R305,R306,R307,R308 2007-001298 R-CHIP R309,R310,R318,R319 R-CHIP 2007-001298 R212 2007-001301 R-CHIP R121,R122,R123,R124 2007-001313 R-CHIP R203,R215 2007-001333 R-CHIP R313 2007-003025 R-CHIP R210 2007-007698 R-CHIP R101 2007-008419 R-CHIP SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 4 C-CERAMIC,CHIP C340 2203-005731 C-CERAMIC,CHIP C232 C-CERAMIC,CHIP 2203-006048 C209,C210,C241 2203-006208 C-CERAMIC,CHIP C314 2203-006257 C-CERAMIC,CHIP C111,C112,C119,C124 2203-006260 C-CERAMIC,CHIP C125,C126,C127 2203-006260 C-CERAMIC,CHIP C225,C421 2203-006348 C-CERAMIC,CHIP C300 2203-006423 C-CERAMIC,CHIP SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 5 BTC201 3711-006228 CONNECTOR-HEADER ANT103 4202-001463 ANTENNA-CHIP BK301 GH13-00067A Please consult the GSPN website (Samsung Portal) for the most recent version of the product's part list. SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 6 OSC201 produces clock Solder OSC201 again signal Not OK Check the R408 concerning about Jig Solder R408 again Power on Is Power On working? Repeat sequence SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 7 AUX_DET UART1TD R406 UART1RD R408 JIG_ON R409 UART0_TD R410 UART0_RD NC 22 C418 C419 C420 C417 NC 23 D405 NC 25 D403 D404 TA402 C421 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 8 L109 L108 R314 C204 TP303 BHS206 TP304 R221 R210 TP205 C214 R216 C202 TP206 C201 OSC201 R217 L207 C211 R223 C410 C416 C401 C407 C413 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 9: Sim Part

    VSIM_3.0V at the pin#1 Check the SIM Power SIM201 = "H"? Is there any signal Check UCP201 pin #2,3,4 of SIM201? Check the SIM Card SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 10 R403 D401 D402 TP218 L405 L407 C232 R215 C231 R213 C224 TP211 C228 TP214 TA201 TP213 SIM201 TP212 TP215 TP216 TP217 R130 R230 C320 BH203 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 11 R404, C406, C412 and TA401 again MIC_BIAS Not OK Check the circuit Solder L405, L407, D401 and D402 of MIC PART again. Is Phone MIC working? Replace MIC SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 12 C415 R403 D401 D402 TP218 L405 L407 C232 R215 C231 C225 U203 R213 C224 R206 TP211 C228 TP214 TA201 TP213 SIM201 TP212 TP215 TP216 TP217 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 13 ) Not OK Check the circuit Solder L401, L402 and R403 again of EAR MIC Repeat the sequence Is Earphone MIC working? SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 14 TA402 C421 MIC_BIAS L400 C403 D401 R401 C404 C406 L411 MIC_P L405 MIC401 TA401 C409 C410 C412 L412 MIC_N L407 C416 R404 C415 D402 MAIN_MIC SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 15 R403 D401 D402 TP218 L405 L407 C232 R215 C231 C225 U203 R213 C224 R206 TP211 C228 TP214 TA201 TP213 SIM201 TP212 TP215 TP216 TP217 9-10 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 16: Earphone Part

    Check the circuit of IFC401 , L403, L404 and L406 again Not OK Check the UCP201 Solder UCP201 or replace UCP201 Pin R19, T19, P19 9-11 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 17 UART1TD R406 UART1RD R408 JIG_ON R409 UART0_TD R410 UART0_RD NC 22 C418 C419 C420 C417 NC 23 D405 NC 25 D403 D404 TA402 C421 9-12 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 18: Charging Part

    Check the U203 Replace U203 Pin #20 = 5V? Not OK Check the C223, C224 Solder C223, C224 and R206 and R206 Check the TA connection. 9-13 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 19 D2 9 ICHGP D2 11 6 D1 D2 13 VBAT R206 FLAG 15 2 NC ICHGN 12 NC GND 19 22 NC NC 27 9-14 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 20: Speaker Part

    Solder UCP201 again or replace of UCP201 UCP201 Not OK Check the Pin #3, #5 of Replace HDC300 HDC300 Not OK Replace the speaker 9-15 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 21 INTMIC_IN_P C230 EXTMIC_BIAS SPK_N EAR_MIC_N EXTMIC_IN_N EAR_MIC_P EXTMIC_IN_P C236 R212 R222 HSET_OUT_N SPK_P HSET_OUT_P EAR_SW HKSW_DET1 EAR_SW_REF HKSW_DET2 SPK_PAD R101 SPK_N SPK_P R102 SPEAKER 9-16 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 22: Key Data Input

    Check the Dome sheet & Key FPCB pushed, is it displayed on LCD? When one of the keys is Replace the PBA pushed, KEY_IO signal is OK? 9-17 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 23 AlwaysON in the Menu? Not OK Check the outflow voltage Replace U100(Sub) of U100(Sub PIN 7) is equal to 3.7V Replace the LCD Module 9-18 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 24 Flow Chart of Troubleshooting VBAT U100 LCD_BL_EN LED3 -LED3 ISET LED2 -LED2 VOUT LED1 -LED1 C103 C104 R100 C105 BACKLIGHT IC 9-19 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 25: Key Back Light

    Is BACKLIGHT set Always Set BACKLIGHT on Always ON ON in the Menu? Not OK Resolder C316 and replace U310. Check KEY_EN and C316 Replace LED 9-20 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 26 C407 C413 C319 C240 C406 C412 L205 R404 R401 R402 C408 R407 C403 C409 C415 R403 D401 D402 TP218 L405 L407 C232 R215 C231 9-21 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 27: Gsm850 Transmitter

    PAM101 pin17 Resolder PAM101 >= 31dBm RFS101 pin 1 Change or Resolder >= 31dBm L102,C105,C115,C107 Ant101 Pin1 Change or Resolder >= 20 dBm C154,L121,L122 9-22 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 28: Gsm850 Receiver

    < = -6 8 dBm L102,C105,C115,C107 PAM101 pin12 Resolder PAM101 < = -70dBm L107 Resolder < = -7 5 dBm C158, F102, C123,C118,L107 Antenna bar display Resolder UCP201 9-23 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 29: Gsm900 Transmitter

    PAM101 pin17 Resolder PAM101 >= 31dBm RFS101 pin 1 Change or Resolder >= 31dBm L102,C105,C115,C107 Ant101 Pin1 Change or Resolder >= 20 dBm C154,L121,L122 9-24 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 30 < = -6 8 dBm L102,C105,C115,C107 PAM101 pin11 Resolder PAM101 < = -70dBm L107 Resolder < = -7 5 dBm C157, F102, C123,C118,L107 Antenna bar display Resolder UCP201 9-25 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 31: Dcs Transmitter

    PAM101 pin17 Resolder PAM101 >= 28dBm RFS101 pin 1 Change or Resolder >= 28dBm L102,C105,C115,C107 Ant101 Pin1 Change or Resolder >= 20 dBm C154,L121,L122 9-26 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 32 < = -6 8 dBm L102,C105,C115,C107 PAM101 pin13 Resolder PAM101 < = -70dBm L109 Resolder < = -7 5 dBm C159, F103,C131,C130,L109 Antenna bar display Resolder UCP201 9-27 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 33: Pcs Transmitter

    PAM101 pin17 Resolder PAM101 >= 28dBm RFS101 pin 1 Change or Resolder >= 28dBm L102,C105,C115,C107 Ant101 Pin1 Change or Resolder >= 20 dBm C154,L121,L122 9-28 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 34: Pcs Receiver

    < = -6 8 dBm L102,C105,C115,C107 PAM101 pin14 Resolder PAM101 < = -70dBm L108 Resolder < = -7 5 dBm C160, F103,C129,C128,L108 Antenna bar display Resolder UCP201 9-29 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 35 NRESET_OUT NTRST TRST_N KEYOUT0 RAMP KEYOUT1 PA_RAMP KEYOUT2 KEYOUT3 RTCK RTCK FE_CTRL0 FE_CTRL1 FE_CTRL2 FE_CTRL3 TEST THERM_IN LDO_EN NWE0 JTAGA201 V_BATT BATT_GND 0.1mm AUX-ON 9-30 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 36 Flow Chart of Troubleshooting 9-31 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 37 #2, #4, #6 and #7 of Solder FM101 again or replace FM101 Not OK Check the Pin T1, H4,J1 Solder UCP201 again of UCP201 Not OK Replace the UCP200 9-32 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 38 Flow Chart of Troubleshooting 9-33 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 39 7. Block Diagrams 7-1. RF Solution Block Diagram SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 40: Base Band Solution Block Diagram

    Block Diagrams 7-2. Base Band Solution Block Diagram SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 41: Pcb Diagrams

    SIM20 1 TP213 C12 0 C11 4 TP212 C12 1 TP215 TP216 TP217 BTC20 1 R13 0 R23 0 C32 0 L302 BH203 MIC401 □ SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 42: Main Bottom

    KEY_ 2 LED306 LED301 LED307 KEY_ 4 KEY_ 6 KEY_ 5 KEY_ 7 KEY_ 9 KEY_ 8 LED305 LED303 LED308 KEY_STA R KEY_SHAR KEY_ 0 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 43: Disassembly And Assembly Instructions

    1) Disconnect connector after removing REAR case. CAN. (Be careful not to damage hook.) 2) Lift the PBA. Be careful not to demage Locker. 11-1 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 44 1) Remove screws. 1) Disassemble UPPER and LOWER by using a tool, 2) Make a gap at top side by using the groove. carefully. 11-2 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 45 CAMERA and CON TO CON . Separate SPEAKER, CAMERA and CON TO CON from LCD 1) Separate LOWER and LCD ASSY. LCD ASSY. 11-3 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 46 Assemble KEYPAD 1) Insert CON TO CON in the FRONT's groove. 1) Put the KEY PAD on the FRONT's right position 2) Assemble HINGE. 11-4 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 47 1) Screw 2 points at the SHIELD CAN. 1) Assemble FRONT ASSY and PBA. Assemble rear case 1) Assemble rear case and screw 4 points. 11-5 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
